RS PRO Pressure Sensor, 0bar Min, 250bar Max, Digital Output, Compound Reading
- RS Stock No.:
- 315-693
- Brand:
- RS PRO
Subtotal (1 unit)*
£143.17
(exc. VAT)
£171.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £143.17 |
*price indicative
- RS Stock No.:
- 315-693
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Pressure Reading Type | Compound | |
Minimum Pressure Reading | 0bar | |
Maximum Pressure Reading | 250bar | |
Accuracy | ±0.5 % | |
Output Type | Digital | |
Media Measured | Oil, Water, Gas | |
Process Connection | G 1/4 | |
Communication Protocol | Bluetooth | |
Response Time | 1s | |
Interface | Bluetooth | |
Housing Material | PA66 | |
IP Rating | IP67 | |
Maximum Operating Temperature | 65°C | |
Minimum Operating Temperature | -20°C | |
Mounting Type | Threaded | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Pressure Reading Type Compound | ||
Minimum Pressure Reading 0bar | ||
Maximum Pressure Reading 250bar | ||
Accuracy ±0.5 % | ||
Output Type Digital | ||
Media Measured Oil, Water, Gas | ||
Process Connection G 1/4 | ||
Communication Protocol Bluetooth | ||
Response Time 1s | ||
Interface Bluetooth | ||
Housing Material PA66 | ||
IP Rating IP67 | ||
Maximum Operating Temperature 65°C | ||
Minimum Operating Temperature -20°C | ||
Mounting Type Threaded | ||

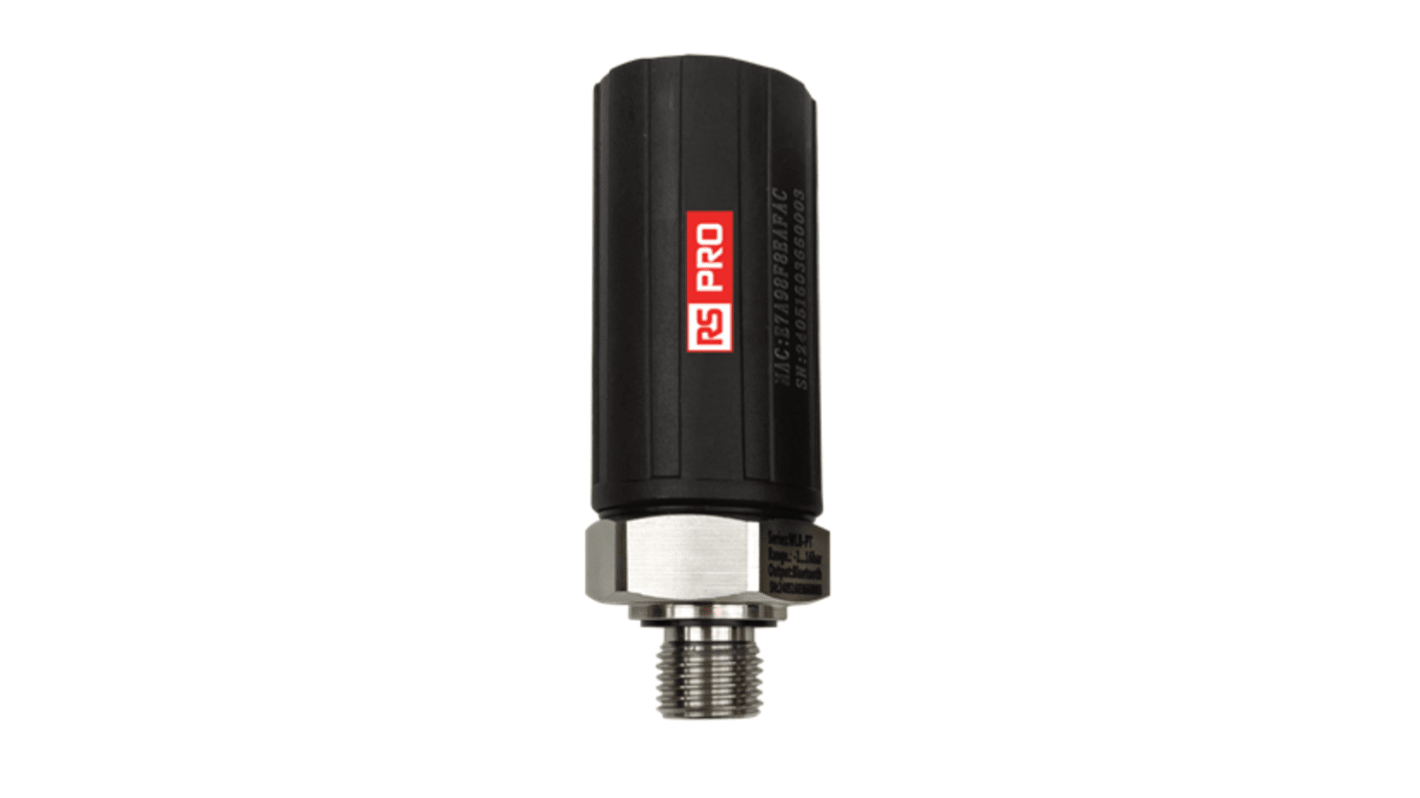

RS PRO Bluetooth Pressure Sensor, 0 to 250bar
A cable free pressure sensor with Bluetooth connectivity compatible with the Watchlog datalogging and live monitoring app available for both Android and iOS.
Extremely responsive with a transmission time of only 1 second and suitable for use with a range of media including oil, gas and water.
Constructed from hardwearing PA 66 the pressure sensor is built to withstand industrial use and is protected to an IP65 level against dust and water sprays.
The Bluetooth pressure monitor is powered by a CR2032 battery with typically 12 months runtime and features a secure screw cap for quick and easy battery replacement eliminating downtime.
A fast and simple way to add live pressure monitoring and datalogging to your system.
Features and Benefits
Pressure monitoring sensor
Bluetooth transmission of over 20m
Suitable for oil, gas and water
Compact size of 76mm
Cable free
1s transmission rate
Monitor and record pressure via the Watchlog iOS & Android apps
CR2032 battery-powered
Typical battery life 12 months
Secure screw cap for quick & easy battery changing
Weight 106g (without battery)
App Connectivity
To access the Sensor Logger support app allowing connection to up to 4 local Bluetooth sensors please click here.
Suitable Batteries
This product requires 1 x CR2032 battery, for suitable CR2032 batteries please see our range of RS PRO batteries
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
