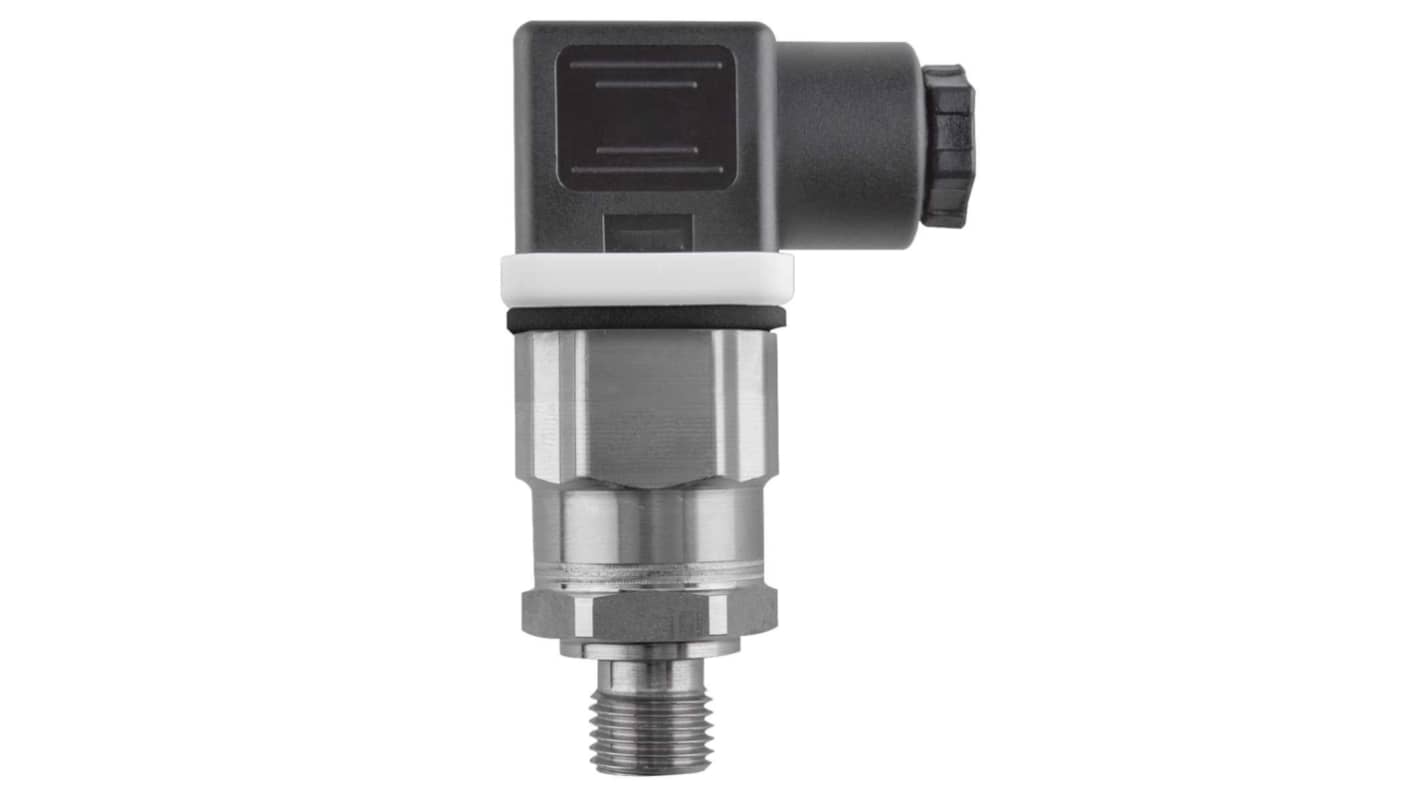

Jumo 401011 Series Pressure Transmitter, 0bar Min, 100bar Max, Analogue Output, Differential Reading

The Jumo Pressure Transmitter is especially designed for very small pressure ranges. The fully welded and therefore seal free measuring system made of high grade stainless steel (304/316 L) allows this device to be used in almost all media, even when the conditions are rough. The used silicon sensor can handle extreme overloading even in the lowest measuring ranges and is capable of handling millions of pressure cycles. The measured pressure is converted into an electrical standard signal and emitted via an electrical connection. this connection is made via a cable socket. The process connection is realized via a G 1/2 according to DIN EN 837 and is made of stainless steel (304).

Measuring ranges as of 100 mbar
Suitable for measuring aggressive liquids
High degree of process reliability due to a welded measuring system with no seals
Robust and maintenance-free measurement technology thanks to extreme over load resistance
