Honeywell Technologies SSCMRNN1.6BA2A3 Piezoresistive Pressure SensorSurface 8 SMT
- RS Stock No.:
- 226-9783
- Mfr. Part No.:
- SSCMRNN1.6BA2A3
- Brand:
- Honeywell
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£43.87
(exc. VAT)
£52.64
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 18 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £43.87 |
| 10 - 24 | £35.05 |
| 25 - 49 | £32.86 |
| 50 + | £31.15 |
*price indicative
- RS Stock No.:
- 226-9783
- Mfr. Part No.:
- SSCMRNN1.6BA2A3
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Maximum Overload Pressure | 400kPa | |
| Product Type | Piezoresistive Pressure Sensor | |
| Sensor Type | Piezoresistive Pressure Sensor | |
| Mount Type | Surface | |
| Package Type | SMT | |
| Pin Count | 8 | |
| Minimum Supply Voltage | 3.3V | |
| Maximum Operating Pressure | 160 kPa | |
| Accuracy | ±0.25 % | |
| Port Type | Single Radial Barbed | |
| Maximum Supply Voltage | 5V | |
| Maximum Operating Temperature | 85°C | |
| Height | 13.75mm | |
| Length | 10mm | |
| Standards/Approvals | No | |
| Series | SSC | |
| Minimum Operating Pressure | 0bar | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Maximum Overload Pressure 400kPa | ||
Product Type Piezoresistive Pressure Sensor | ||
Sensor Type Piezoresistive Pressure Sensor | ||
Mount Type Surface | ||
Package Type SMT | ||
Pin Count 8 | ||
Minimum Supply Voltage 3.3V | ||
Maximum Operating Pressure 160 kPa | ||
Accuracy ±0.25 % | ||
Port Type Single Radial Barbed | ||
Maximum Supply Voltage 5V | ||
Maximum Operating Temperature 85°C | ||
Height 13.75mm | ||
Length 10mm | ||
Standards/Approvals No | ||
Series SSC | ||
Minimum Operating Pressure 0bar | ||
Automotive Standard No | ||
Minimum Operating Temperature -40°C | ||

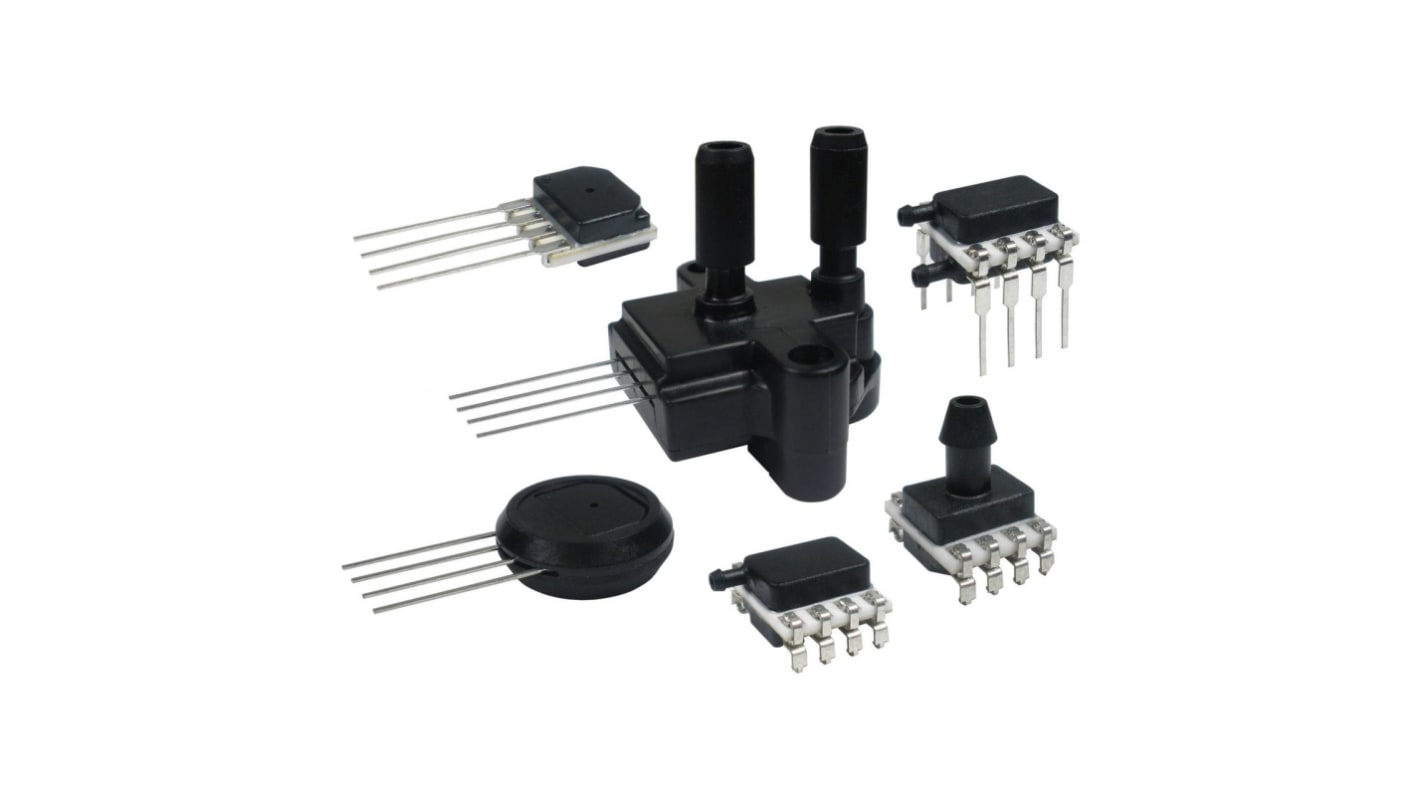

Honeywell SSC Series Piezoresistive Pressure Sensor, 0 to 160kPa Maximum Operating Pressure, ±0.25% Accuracy - SSCMRNN1.6BA2A3
This piezoresistive pressure sensor converts gas pressure into a measurable electrical signal for low-pressure monitoring and control. It operates from a 3.3V minimum supply and is intended for surface-mounted installations where a Compact form and dependable measurement across common industrial temperature ranges are required.
Features and Benefits:
• High-accuracy ±0.25% measurement for precise control
• Operates from 3.3V supporting low-voltage systems
• Measures 0bar to 160kPa for low-pressure monitoring
• SMT surface-mount package enables PCB-level integration
• 8-pin configuration simplifies electrical interfacing
• Operates from 3.3V supporting low-voltage systems
• Measures 0bar to 160kPa for low-pressure monitoring
• SMT surface-mount package enables PCB-level integration
• 8-pin configuration simplifies electrical interfacing
Applications
• Used for HVAC low-pressure airflow monitoring
• Ideal for laboratory gas manifold sensing
• Suitable for process-control pneumatic feedback loops
• Used with embedded controllers in instrumentation
• Can be used for environmental chamber pressure checks
• Ideal for laboratory gas manifold sensing
• Suitable for process-control pneumatic feedback loops
• Used with embedded controllers in instrumentation
• Can be used for environmental chamber pressure checks
What electrical supply range will the device tolerate?
It functions from a minimum of 3.3V and can accept up to a 5V supply.
What pressure excursions can it withstand beyond normal operation?
It tolerates transient overloads up to 400kPa without immediate failure.
What environmental temperatures will not affect operation?
It is rated to work between -40°C and 85°C continuous operating temperature.
How is the sensor connected to a fluid line?
It provides a single radial barbed port for simple tubing attachment.
How many electrical connections are provided for mounting?
The device uses an 8-pin arrangement in a surface-mounted package.
