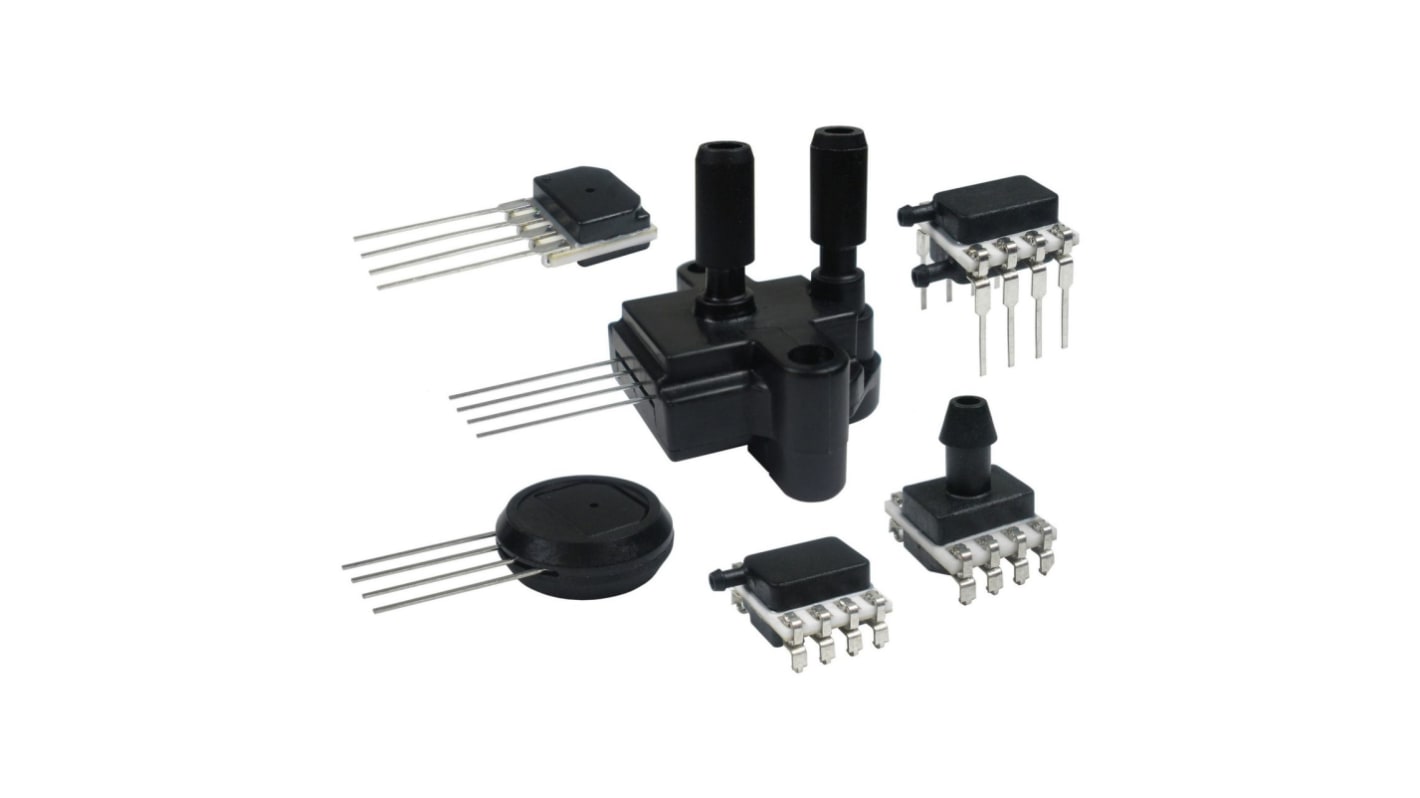

Honeywell Technologies SSCMANV030PA2A3 Piezoresistive Pressure SensorSurface 8 SMT

RS Stock No.:: 226-9773
Mfr. Part No.:: SSCMANV030PA2A3
Brand:: Honeywell

Honeywell Technologies SSCMANV030PA2A3 Piezoresistive Pressure SensorSurface 8 SMT

Subtotal (1 box of 50 units)*

£1,856.80

(exc. VAT)

£2,228.15

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

50 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Box*
50 +	£37.136	£1,856.80

*price indicative

RS Stock No.:: 226-9773
Mfr. Part No.:: SSCMANV030PA2A3
Brand:: Honeywell

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Honeywell
	Sensor Type	Piezoresistive Pressure Sensor
	Product Type	Piezoresistive Pressure Sensor
	Maximum Overload Pressure	413kPa
	Mount Type	Surface
	Package Type	SMT
	Pin Count	8
	Minimum Supply Voltage	3.3V
	Maximum Operating Pressure	206 kPa
	Maximum Supply Voltage	5V
	Port Type	Single Axial Barbed
	Accuracy	±0.25 %
	Maximum Operating Temperature	85°C
	Series	SSC
	Height	13.75mm
	Length	10mm
	Standards/Approvals	No
	Minimum Operating Pressure	0psi
	Automotive Standard	No
	Minimum Operating Temperature	-40°C

	Select all
	Brand Honeywell
	Sensor Type Piezoresistive Pressure Sensor
	Product Type Piezoresistive Pressure Sensor
	Maximum Overload Pressure 413kPa
	Mount Type Surface
	Package Type SMT
	Pin Count 8
	Minimum Supply Voltage 3.3V
	Maximum Operating Pressure 206 kPa
	Maximum Supply Voltage 5V
	Port Type Single Axial Barbed
	Accuracy ±0.25 %
	Maximum Operating Temperature 85°C
	Series SSC
	Height 13.75mm
	Length 10mm
	Standards/Approvals No
	Minimum Operating Pressure 0psi
	Automotive Standard No
	Minimum Operating Temperature -40°C

Datasheet - SSCMANV030PA2A3

Honeywell SSC Series Piezoresistive Pressure Sensor, 0 to 206kPa Operating Range, ±0.25% Accuracy - SSCMANV030PA2A3

This piezoresistive device measures low pressures and converts them to an electrical signal for integration on Compact assemblies. It is designed for surface mounting on boards and accepts a single axial barbed connection for the fluid interface. The sensor operates from low supply voltages and functions across a wide ambient temperature range, making it suitable for applications where Compact size and straightforward electrical interfacing are required.

Features and Benefits:

• High-accuracy ±0.25% supports precise differential measurements
• 3.3V to 5V piezoresistive sensor simplifies low-voltage system integration
• 0 to 206kPa SMT range enables monitoring of low-pressure environments
• 413kPa overload robust pressure sensor protects against pressure spikes
• Wide temp -40°C to 85°C pressure sensor preserves performance in extremes

Applications

• Suitable for low-pressure 0 psi sensor for HVAC control loops
• Ideal for single axial barbed port pressure sensor plumbing interfaces
• Used with Compact 13.3 x 13.75 x 10mm pressure sensor installations
• Can be used for surface-mount pressure sensor 8-pin SSC series PCBs
• Suitable for prototype systems requiring 3.3V to 5V piezoresistive sensor compatibility

What electrical supply range will the unit accept?

It operates on supply voltages from 3.3V up to a maximum of 5V.

How many electrical connections are provided for PCB mounting?

The device presents eight pins configured for surface-mount placement.

What environmental temperatures can it withstand during operation?

It is specified to operate between -40°C minimum and 85°C maximum.

What mechanical Interface is used for fluid connection?

A single axial barbed port is provided for straightforward tubing attachment.
