Honeywell Differential Pressure Sensor, 10kPa Operating Max, PCB Mount, 8-Pin, 140kPa Overload Max, SMT
- RS Stock No.:
- 211-9931
- Mfr. Part No.:
- HSCMRRN100MD2A3
- Brand:
- Honeywell
Subtotal (1 box of 50 units)*
£1,179.20
(exc. VAT)
£1,415.05
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 50 unit(s), ready to ship
Units | Per unit | Per Box* |
|---|---|---|
| 50 + | £23.584 | £1,179.20 |
*price indicative
- RS Stock No.:
- 211-9931
- Mfr. Part No.:
- HSCMRRN100MD2A3
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Sensor Type | Differential Pressure Sensors | |
| Maximum Overload Pressure | 140kPa | |
| Mounting Type | PCB Mount | |
| Package Type | SMT | |
| Pin Count | 8 | |
| Dimensions | 13.3 x 10 x 11.21mm | |
| Maximum Operating Pressure | 10kPa | |
| Maximum Operating Supply Voltage | 6 V | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand Honeywell | ||
Sensor Type Differential Pressure Sensors | ||
Maximum Overload Pressure 140kPa | ||
Mounting Type PCB Mount | ||
Package Type SMT | ||
Pin Count 8 | ||
Dimensions 13.3 x 10 x 11.21mm | ||
Maximum Operating Pressure 10kPa | ||
Maximum Operating Supply Voltage 6 V | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||

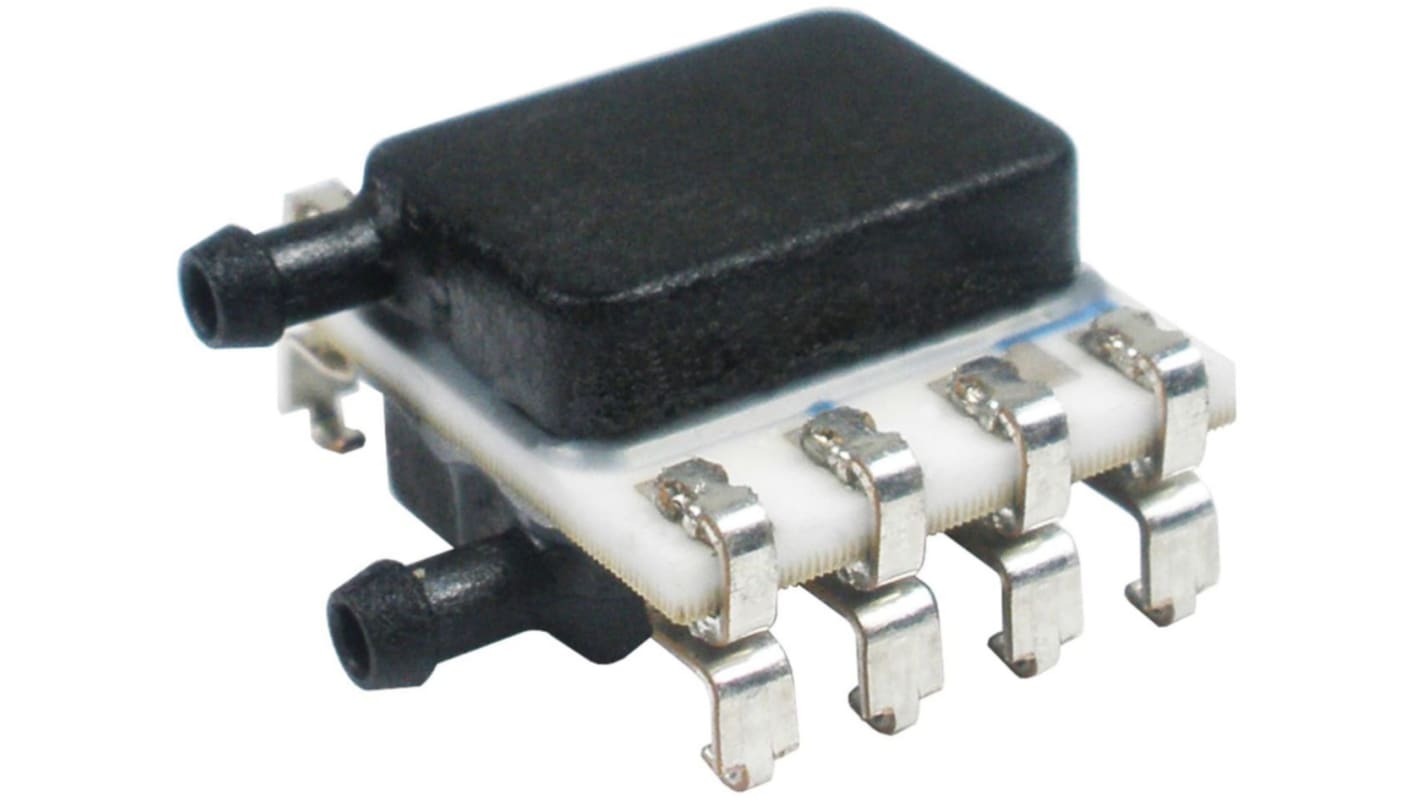

Honeywell Differential Pressure Sensor, 8 Pin, 100mbar - HSC Series - HSCMRRN100MD2A3
When you need to measure airflow reliably, choose this differential pressure sensor from Honeywell. It uses silicon and ceramic piezo-resistive technology, so it's highly precise and is BFSL (best fit straight line) tested to an accuracy of ±0.25%. Designed to read a wide range of pressures between ±1.6mbar and ±10 bar, this sensor is suitable for many commercial and industrial applications, including pneumatic controls and respiratory machines. The surface-mount technology makes it quick and easy to install on PCBs (printed circuit boards).
Features & Benefits
• Small package size of 10 (W) x 10mm (L) takes up less space on your PCB (printed circuit board)
• Low power consumption of less than 10mW makes it suitable for battery-powered devices
• High-performance sensor with a maximum overload pressure of 140kPa
• The sensor is fully calibrated, ready for installation straight out of the box
• Low power consumption of less than 10mW makes it suitable for battery-powered devices
• High-performance sensor with a maximum overload pressure of 140kPa
• The sensor is fully calibrated, ready for installation straight out of the box
Applications
• Medical machines and equipment
• HVAC (heating, ventilation and air conditioning) appliances
• Industrial instrumentation and controls
• HVAC (heating, ventilation and air conditioning) appliances
• Industrial instrumentation and controls
What's the maximum operating pressure of this sensor?
This sensor can handle pressures up to 10kPa and still work accurately.
