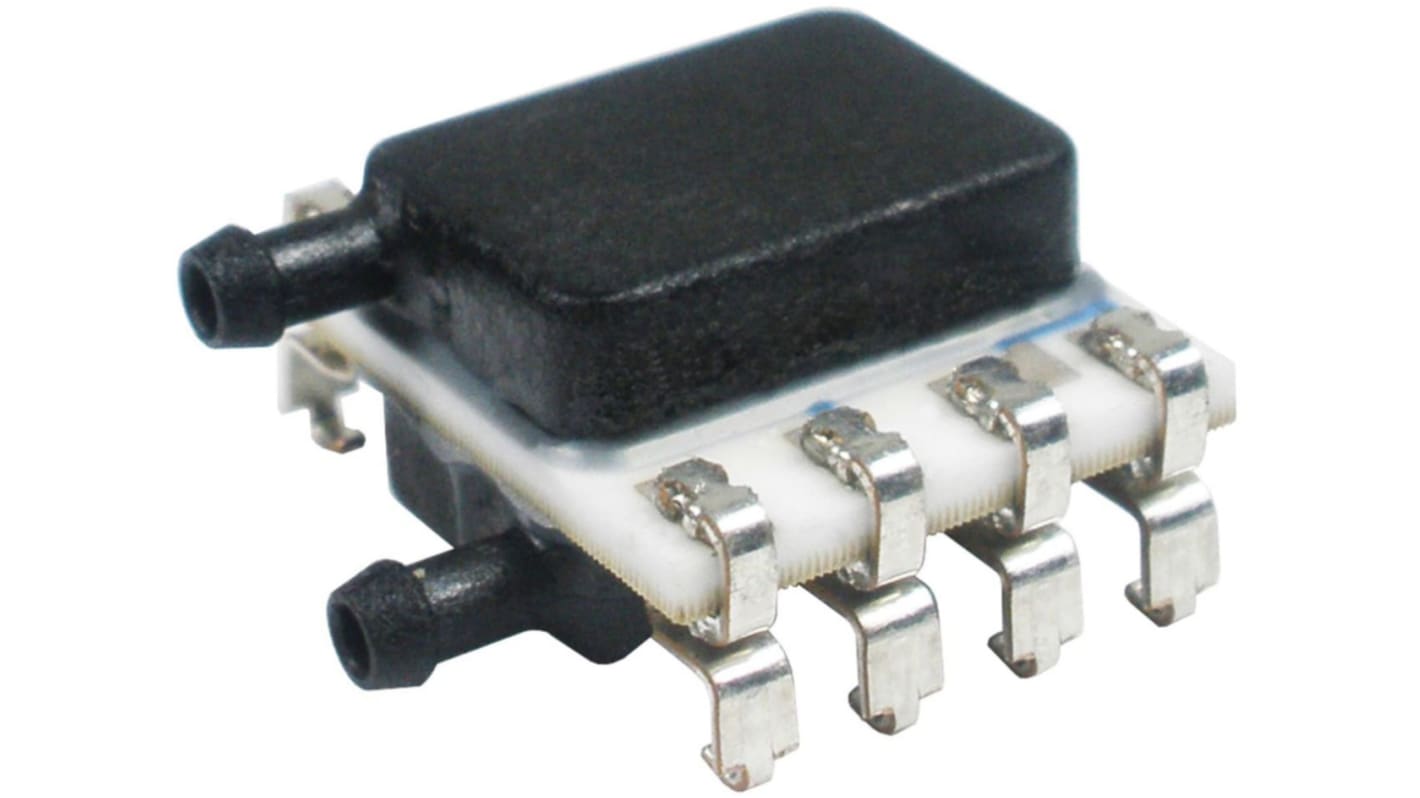

Honeywell Technologies HSCMRRN100MD2A3 Differential Pressure SensorSurface 8 SMT

RS Stock No.:: 211-9933
Mfr. Part No.:: HSCMRRN100MD2A3
Brand:: Honeywell

Honeywell Technologies HSCMRRN100MD2A3 Differential Pressure SensorSurface 8 SMT

Subtotal (1 unit)*

£23.58

(exc. VAT)

£28.30

(inc. VAT)

FREE delivery for orders over £60.00

Being discontinued

Final 46 unit(s), ready to ship

Units	Per unit
1 +	£23.58

*price indicative

RS Stock No.:: 211-9933
Mfr. Part No.:: HSCMRRN100MD2A3
Brand:: Honeywell

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Honeywell
	Maximum Overload Pressure	140kPa
	Sensor Type	Differential Pressure Sensor
	Product Type	Differential Pressure Sensor
	Mount Type	Surface
	Package Type	SMT
	Pin Count	8
	Minimum Supply Voltage	3.3V
	Maximum Operating Pressure	10 kPa
	Maximum Supply Voltage	5V
	Accuracy	±0.25 %
	Port Type	Dual Radial Barbed
	Maximum Operating Temperature	85°C
	Standards/Approvals	No
	Series	HSC
	Height	13.75mm
	Length	10mm
	Minimum Operating Pressure	100mbar
	Automotive Standard	No
	Minimum Operating Temperature	-20°C

	Select all
	Brand Honeywell
	Maximum Overload Pressure 140kPa
	Sensor Type Differential Pressure Sensor
	Product Type Differential Pressure Sensor
	Mount Type Surface
	Package Type SMT
	Pin Count 8
	Minimum Supply Voltage 3.3V
	Maximum Operating Pressure 10 kPa
	Maximum Supply Voltage 5V
	Accuracy ±0.25 %
	Port Type Dual Radial Barbed
	Maximum Operating Temperature 85°C
	Standards/Approvals No
	Series HSC
	Height 13.75mm
	Length 10mm
	Minimum Operating Pressure 100mbar
	Automotive Standard No
	Minimum Operating Temperature -20°C

Honeywell HSC Series Differential Pressure Sensor, 100m bar Minimum Operating Pressure, 10kPa Maximum Operating Pressure - HSCMRRN100MD2A3

This differential pressure sensor provides low-voltage measurement of pressure differences for board-mounted systems. It is designed for surface-mount assembly with dual radial barbed ports and operates across a modest pressure range while remaining suitable for environments requiring a Compact electronic pressure transducer.

Features and Benefits:

• ±0.25% accuracy delivers precise differential readings
• Operates from 3.3 V to 5 V for flexible power options
• Dual radial barbed ports enable simple tubing connections
• SMT board mount reduces assembly time and footprint
• Rated to 85 °C supports elevated temperature operation

Applications

• Suitable for HVAC airflow monitoring and control
• Ideal for medical device flow differential measurement
• Used with Compact pneumatic manifolds in laboratory equipment
• Can be used for industrial filter clog detection
• Suitable for automotive-related sensor integration tasks

What supply voltage range can it accept?

It functions with a minimum supply of 3.3 V and a maximum of 5 V.

What pressure span is measurable with this device?

It measures differential pressures from 100 mbar up to 10 kPa.

How accurate are the pressure measurements?

Measurement accuracy is ±0.25% relative to the reading.

What mounting and port configurations are provided?

The device is supplied for surface-mount board attachment and includes two radial barbed ports for tubing.

What temperature range can it reliably operate within?

The operating temperature range extends from -20 °C up to 85 °C.
