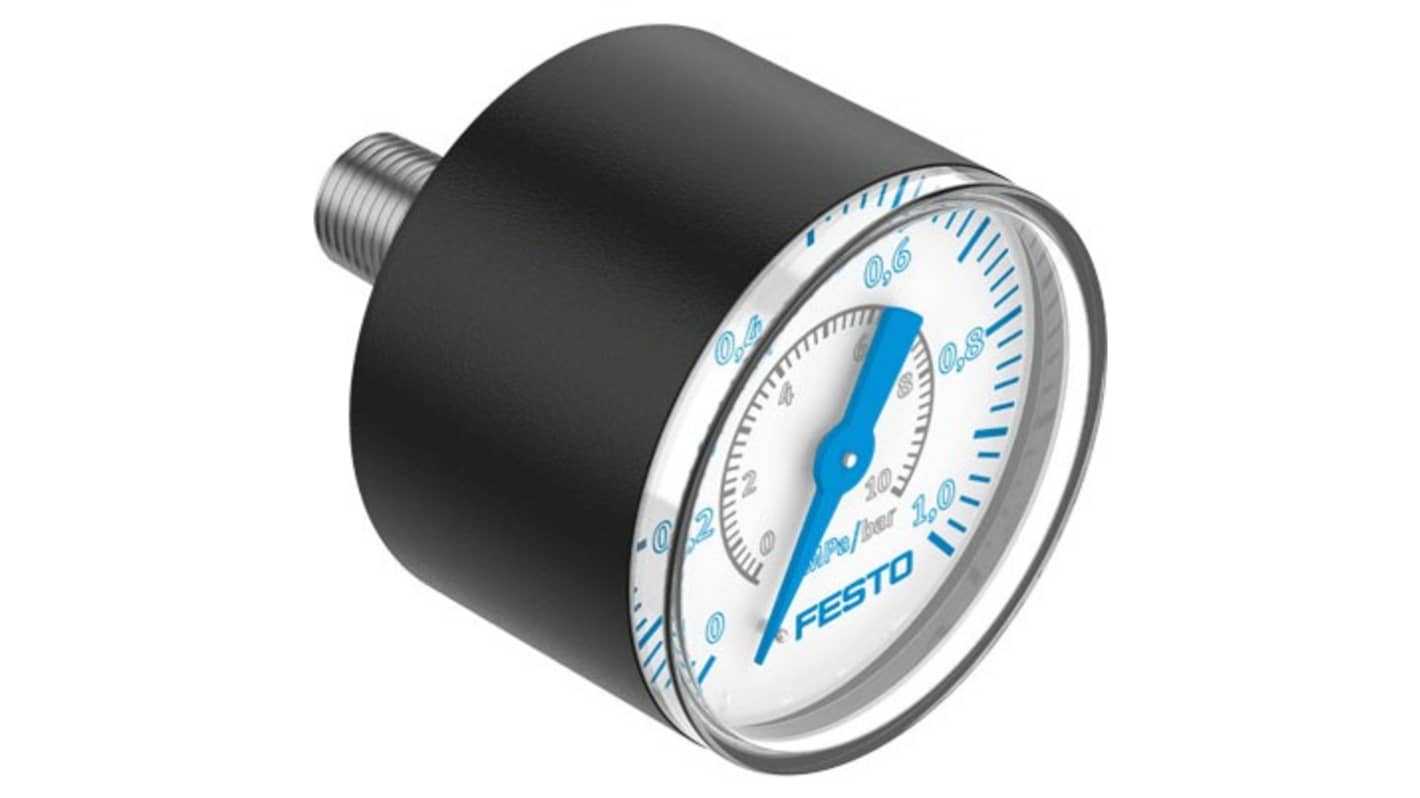

Festo G 1/8 Analogue Pressure Gauge 10bar Inline 40mm Outside Diameter
- RS Stock No.:
- 647-497
- Mfr. Part No.:
- PAGN-40-1M-G18PA
- Brand:
- Festo
Subtotal (1 unit)*
£12.63
(exc. VAT)
£15.16
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £12.63 |
*price indicative
- RS Stock No.:
- 647-497
- Mfr. Part No.:
- PAGN-40-1M-G18PA
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Maximum Pressure Measurement | 10bar | |
Mounting Type | Inline | |
Minimum Pressure Measurement | 0bar | |
Display Type | Analogue | |
Connection Size | G 1/8 | |
Gauge Outside Diameter | 40mm | |
Select all | ||
---|---|---|
Brand Festo | ||
Maximum Pressure Measurement 10bar | ||
Mounting Type Inline | ||
Minimum Pressure Measurement 0bar | ||
Display Type Analogue | ||
Connection Size G 1/8 | ||
Gauge Outside Diameter 40mm | ||
- COO (Country of Origin):
- CN
The Festo Pressure gauge is a precision instrument designed to measure pressure in inert gases and neutral fluids efficiently. A robust Bourdon tube mechanism ensures reliable performance within an indicating range of 0 MPa to 1 MPa, making it suitable for various industrial applications. This gauge's IP43 rated protection ensures durability in challenging environments, while the wide temperature range of -20 °C to 60 °C and storage capability of -40 °C to 70 °C enhance its versatility. Designed for in-line installation, it features a centred rear side connection with a G1/8 pneumatic connection, allowing for easy integration into existing setups. Its compliance with EN 837-1 standard and RoHS directive underscores its commitment to quality and safety.
Reliable Bourdon tube design for accurate pressure readings
Indicating range from 0 MPa to 1 MPa accommodates a variety of needs
Certified for use in explosion protection zones
IP43 degree of protection enhances resilience against dust and water
Wide operating temperature range ensures reliable performance in different environments
Double scale display for versatile readability
Crafted from durable materials including brass and ABS housing for long lasting use
RoHS compliant construction reflects a commitment to environmental responsibility
Lightweight design at 60 g facilitates easy mounting and manoeuvrability
Indicating range from 0 MPa to 1 MPa accommodates a variety of needs
Certified for use in explosion protection zones
IP43 degree of protection enhances resilience against dust and water
Wide operating temperature range ensures reliable performance in different environments
Double scale display for versatile readability
Crafted from durable materials including brass and ABS housing for long lasting use
RoHS compliant construction reflects a commitment to environmental responsibility
Lightweight design at 60 g facilitates easy mounting and manoeuvrability
