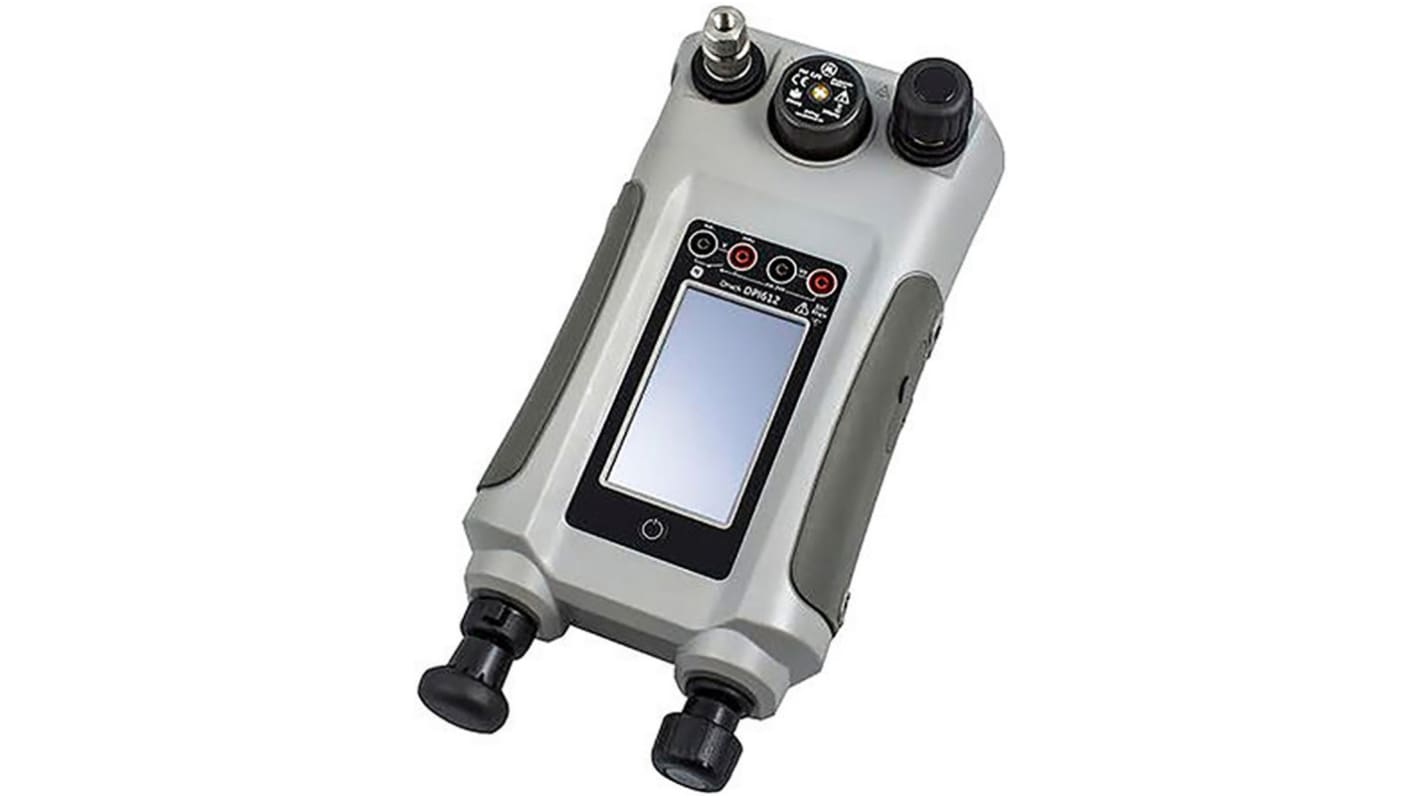

Druck DPI 612 Flex -1bar to 20bar Pressure Calibrator - With RS Calibration

RS Stock No.:: 910-8807
Mfr. Part No.:: DPI612-PFX-20G
Brand:: Druck

Druck DPI 612 Flex -1bar to 20bar Pressure Calibrator - With RS Calibration

Price Each

£4,544.00

(exc. VAT)

£5,452.80

(inc. VAT)

8 In stock for delivery within 3 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Not available for guaranteed pre 9am/10am delivery

Units	Per unit
1 +	£4,544.00

RS Stock No.:: 910-8807
Mfr. Part No.:: DPI612-PFX-20G
Brand:: Druck

Druck Pressure Calibrator - DPI612 Flex Series

Forming part of Druck's DPI 612 Flex series, these flexible pressure calibrators are fully self-contained test and calibration systems that feature interchangeable pressure modules for flexible ranging, generating pneumatic or hydraulic pressures, supply loop power and measure process signals.

Druck's pressure calibrators have revolutionised test and calibration, through providing all the tools needed for pressure generation and signal measurement - all done in a self-contained portable package.

Did you know?

The Druck DPI 612 Flex series is the fifth generation in the DPI 600 family, it incorporates the convenience and reliability of a true 'Druck'. These pressure calibrators also offer interchangeable pressure modules, higher accuracy and improved pressure generation.

Features & Benefits

• Multifunctional, complete pressure calibration tool which can not only pump but can also measure and analyse
• Has the "best in class" pressure accuracy
• Fast and dependable from vacuum to 1000 bar/15000 psi
• Easy to use, full-colour digital touch screen display
• No in-the-field leaks with quick-to-fit pressure adaptors & hoses
• Dependable, high-performance pressure systems that provide quick and easy generation

DPI612 Series

There are three model type calibrators that sit within the Druck DPI 612 Flex series, all of which generate pressures from 95% vacuum to 1000bar/15000 psi.

• DPI 612 pFlex: 910-8027, 910-8021, 910-8030 - low to medium pressure, pneumatic
• DPI 612 pFlexPro: 910-8046 - low to high-pressure, pneumatic
• DPI 612 hFlexPro: 910-8049 - very high pressure, hydraulic

What is supplied with the kit?

Supplied as standard with all modules:

• Rechargeable battery
• Battery charger
• Carrying strap
• Test leads
• User guide
• Calibration certificate

With particular modules:

• (Base Unit PFX-00) + PM 620 pressure module, hose, carry case, dirt moisture trap
• (PFX other models) + pressure relief valve
• (PFP & HFP) + fluid bottle but no dirt moisture trap (HFP)
• Dirt and moisture trap accessory (IO620-IDT621) supplied as standard with PFX & PFP models is not for use with hFlex (HFP)
• The hydraulic version has an internal reservoir for hydraulic oil or water, a priming pump to expel air from the connected system and an intensifier to quickly and easily generate pressure.

Druck Pressure Calibrator, Gauge Pressure Port, 20 Bar Maximum Pressure Measurement - DPI612-PFX-20G

This pressure calibrator from Druck is a versatile tool for accurate pressure measurement and generation. It features a gauge pressure port and offers precise measurements for a wide range of applications. It s known for its high accuracy, convenient touch screen operation, and interchangeable pressure modules.

Features & Benefits

• Portable and compact design for easy handling
• Fast and reliable pressure generation capabilities
• Interchangeable pressure modules for flexible ranging
• Touch screen interface for easy operation
• Leak-free connections with quick-to-fit pressure adapters
• High precision engineering for accurate measurements
• Three model choices available for various pressure ranges
• Multi-channel data logging for comprehensive analysis

Applications

• Ideal for use in calibration laboratories
• Suitable for field calibration of pressure instruments
• Can be used for testing and calibrating pressure transmitters
• Used in industrial automation for pressure control systems

Can it be used for both pneumatic and hydraulic pressure generation?

Yes, the DPI 612 Flex is versatile and can generate both pneumatic and hydraulic pressure based on the model chosen.

Is it compatible with different pressure modules?

It offers interchangeable pressure modules, allowing for flexibility in ranging and reconfiguration for different applications.

What is the advantage of the touch screen interface?

The touch screen interface of the DPI 612 Flex makes it easy to navigate and set up for any calibration task, providing a user-friendly experience.

Attribute	Value
Maximum Pressure Measurement	20bar
Minimum Pressure Measurement	-1bar
Pressure Port Type	Gauge
Calibrated	RSCAL
Model Number p	DPI 612 Flex
Data Logging	Yes
Current Loop Measurement	Yes
Leak Testing	Yes
Maximum Operating Temperature	+50°C
Minimum Operating Temperature	-10°C
Weight	3.4kg
Dimensions	350 x 170 x 145mm
Height	145mm
Length	350mm
Width	170mm
