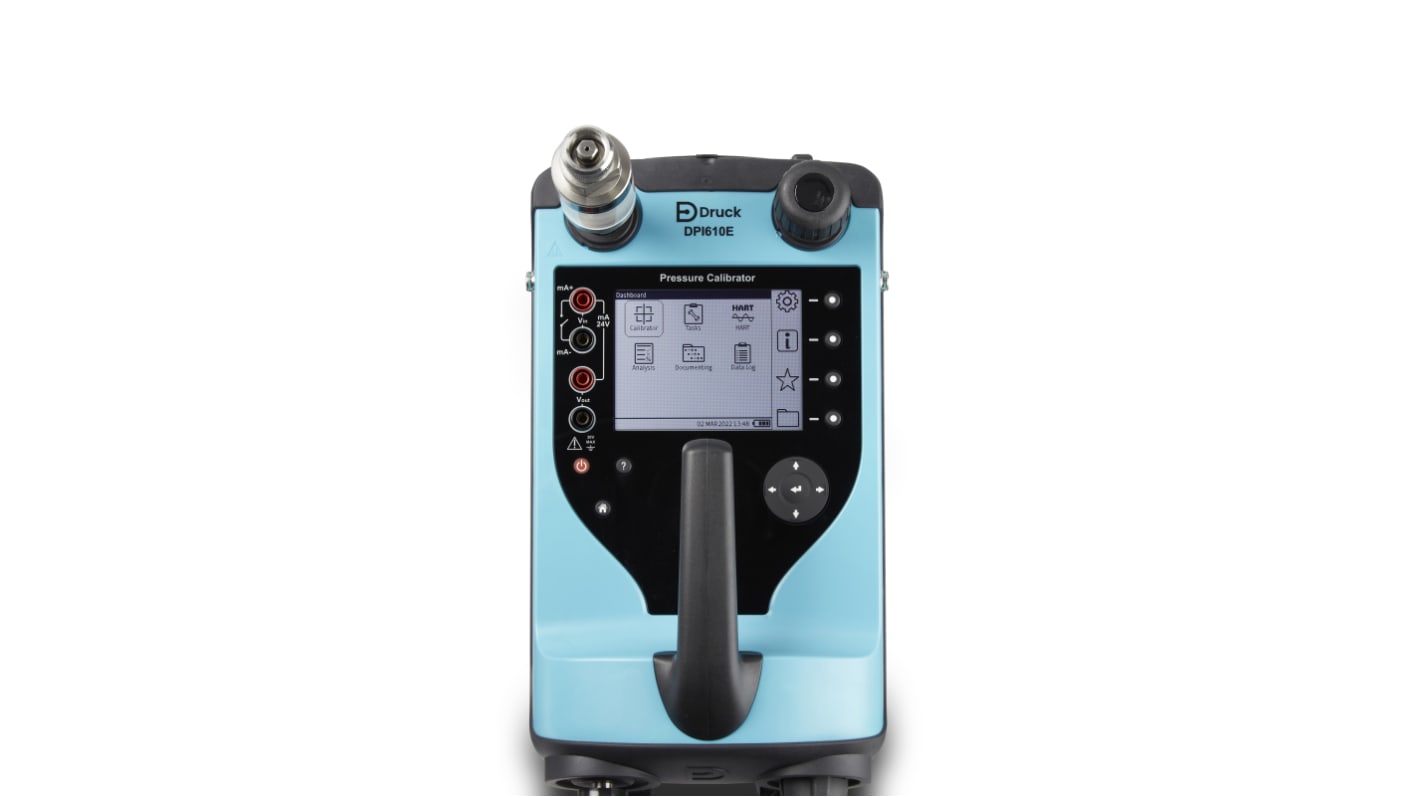

Druck DPI610E 0bar to 2 Barg G Pressure Calibrator
- RS Stock No.:
- 253-4992
- Mfr. Part No.:
- DPI610E-PC-07G-UO -BO
- Brand:
- Druck
Subtotal (1 unit)*
£3,944.07
(exc. VAT)
£4,732.88
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 29 October 2025
- Plus 1 unit(s) shipping from 05 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £3,944.07 |
*price indicative
- RS Stock No.:
- 253-4992
- Mfr. Part No.:
- DPI610E-PC-07G-UO -BO
- Brand:
- Druck
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Druck | |
Maximum Pressure Measurement | 2 Barg G | |
Minimum Pressure Measurement | 0bar | |
Resolution | 0.025 % | |
Pressure Port Type | Gauge/ Pseudo Absolute | |
Data Logging | Yes | |
Model Number p | DPI610E | |
Intrinsically Safe | No | |
Current Loop Measurement | Yes | |
Leak Testing | Yes | |
Maximum Operating Temperature | +50°C | |
Minimum Operating Temperature | -10°C | |
Weight | 3600g | |
Dimensions | 350 x 150 x 180mm | |
Height | 180mm | |
Length | 350mm | |
Width | 150mm | |
Select all | ||
---|---|---|
Brand Druck | ||
Maximum Pressure Measurement 2 Barg G | ||
Minimum Pressure Measurement 0bar | ||
Resolution 0.025 % | ||
Pressure Port Type Gauge/ Pseudo Absolute | ||
Data Logging Yes | ||
Model Number p DPI610E | ||
Intrinsically Safe No | ||
Current Loop Measurement Yes | ||
Leak Testing Yes | ||
Maximum Operating Temperature +50°C | ||
Minimum Operating Temperature -10°C | ||
Weight 3600g | ||
Dimensions 350 x 150 x 180mm | ||
Height 180mm | ||
Length 350mm | ||
Width 150mm | ||
- COO (Country of Origin):
- GB
Druck Pressure Calibrator, 350 x 150 x 180 mm, 2 Barg G Maximum Pressure Measurement - DPI610E-PC-07G-UO -BO
This pressure calibrator from Druck is a versatile and reliable tool designed for precise pressure measurement and generation. With features like current loop measurement and data logging, it offers high-resolution pressure measurement across a wide range. Engineered for instrument technicians, this portable pressure calibrator provides accurate results in a variety of applications.
Features & Benefits
• Portable design for easy use in the field
• Current loop measurement capability for monitoring electrical signals
• Data logging functionality for recording and analyzing pressure measurements
• High resolution pressure measurement for precision calibration
• Leak testing feature ensures system integrity
• Current loop measurement capability for monitoring electrical signals
• Data logging functionality for recording and analyzing pressure measurements
• High resolution pressure measurement for precision calibration
• Leak testing feature ensures system integrity
Applications
• Ideal for calibration and testing applications in automation and electrical industries
• Used for setting up and calibrating pressure-sensitive equipment
• Suitable for checking and adjusting pressure switches and safety systems
• Used for setting up and calibrating pressure-sensitive equipment
• Suitable for checking and adjusting pressure switches and safety systems
Can it be used for calibrating pressure gauges?
Yes, the pressure calibrator is suitable for calibrating pressure gauges across its wide pressure range of 0-2 Barg G.
Is the DPI610E series intrinsically safe?
No, the DPI610E series is not intrinsically safe but offers reliable and accurate pressure measurement capabilities.
Will it work for leak testing applications?
Yes, the DPI610E pressure calibrator includes a leak testing feature to detect leaks in systems and ensure proper functionality.
Note
Why choose Druck?
What began in 1972 as a small business in Leicester, UK, Druck has grown into a global pressure-measurement business recognised as a world leader, delivering high quality piezo-resistive pressure sensors and test and calibration instruments to a wide range of applications for customers across the globe.
Druck is one of the only organisations to control the whole manufacturing process from silicon to final product. All products are high-quality, developed from the in-house (UK), raw processing of silicon to delivering the final product.
With Druck, you can be sure of quality, accuracy and reliability. We are Druck. We deliver peace of mind.
What began in 1972 as a small business in Leicester, UK, Druck has grown into a global pressure-measurement business recognised as a world leader, delivering high quality piezo-resistive pressure sensors and test and calibration instruments to a wide range of applications for customers across the globe.
Druck is one of the only organisations to control the whole manufacturing process from silicon to final product. All products are high-quality, developed from the in-house (UK), raw processing of silicon to delivering the final product.
With Druck, you can be sure of quality, accuracy and reliability. We are Druck. We deliver peace of mind.
