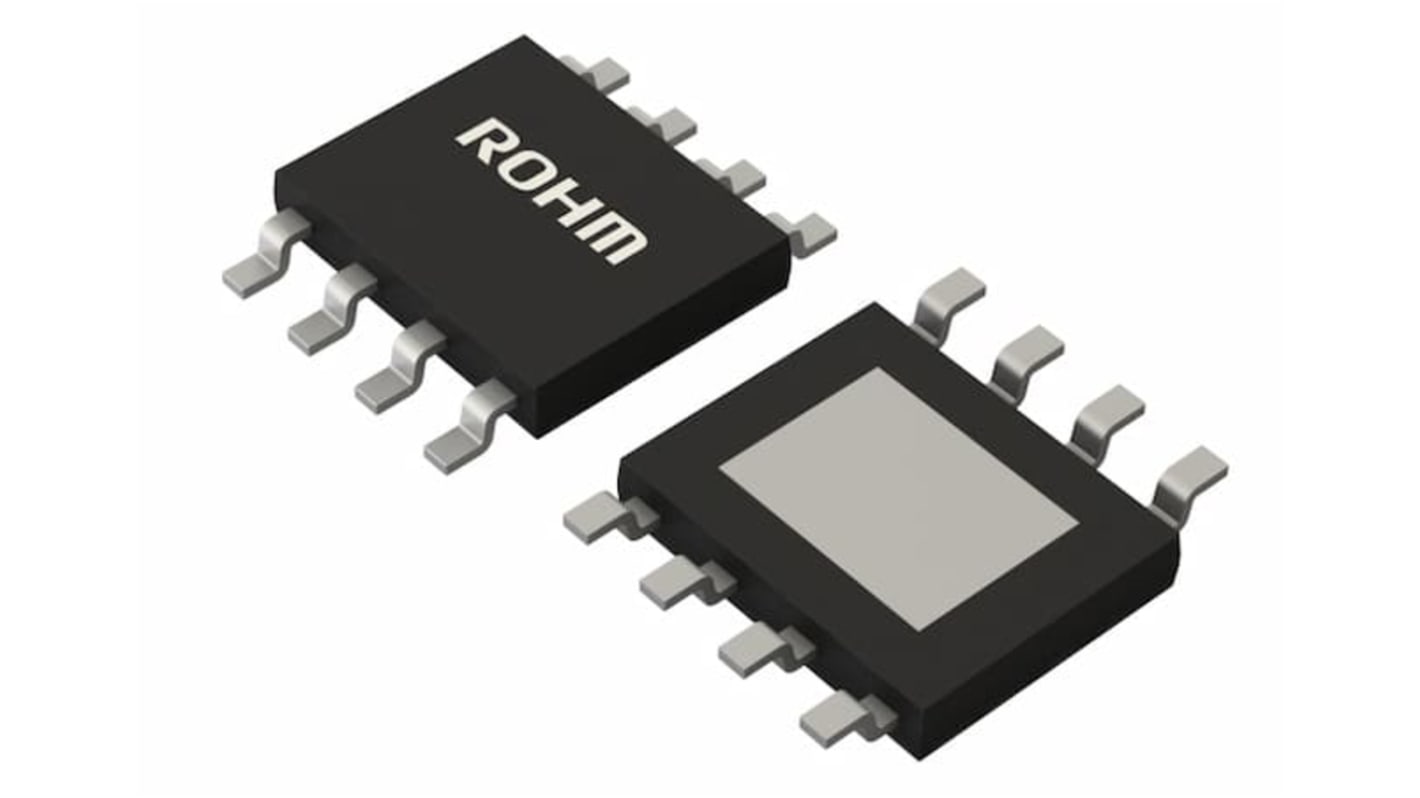

ROHM BD7J101EFJ-LBE2, 1Low Side, Low Side Power Switch IC 8-Pin, HTSOP-J8
- RS Stock No.:
- 266-3788
- Mfr. Part No.:
- BD7J101EFJ-LBE2
- Brand:
- ROHM
2500 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 2)
£2.90
(exc. VAT)
£3.48
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 48 | £2.90 | £5.80 |
| 50 - 98 | £2.45 | £4.90 |
| 100 - 248 | £2.13 | £4.26 |
| 250 - 998 | £2.025 | £4.05 |
| 1000 + | £1.76 | £3.52 |
| *price indicative | ||
- RS Stock No.:
- 266-3788
- Mfr. Part No.:
- BD7J101EFJ-LBE2
- Brand:
- ROHM
Technical Reference
Legislation and Compliance
Product Details
The ROHM fly back converter IC is the product guarantees long time support in industrial market, this IC is an optocoupler-less isolated fly back converter. It is not necessary to use any optocouplers and feedback circuits by a third winding of transformers
these have been ever required to obtain a stable output voltage in conventional applications. Furthermore, adoption of the original adapter type technology that controls on time makes the external phase compensation parts unnecessary, which realizes the designs of isolated power supply application with drastic reduction of parts number, minimization of application circuits, and high reliability.
Shutdown and enable control
Soft start function
Load compensation function
Soft start function
Load compensation function
Specifications
Attribute | Value |
|---|---|
| Power Switch Type | Low Side |
| Power Switch Topology | Low Side |
| Number of Channels | 1 |
| Maximum Operating Supply Voltage | 80 V |
| Maximum Operating Current | 0.45mA |
| Number of Outputs | 1 |
| Package Type | HTSOP-J8 |
| Pin Count | 8 |
