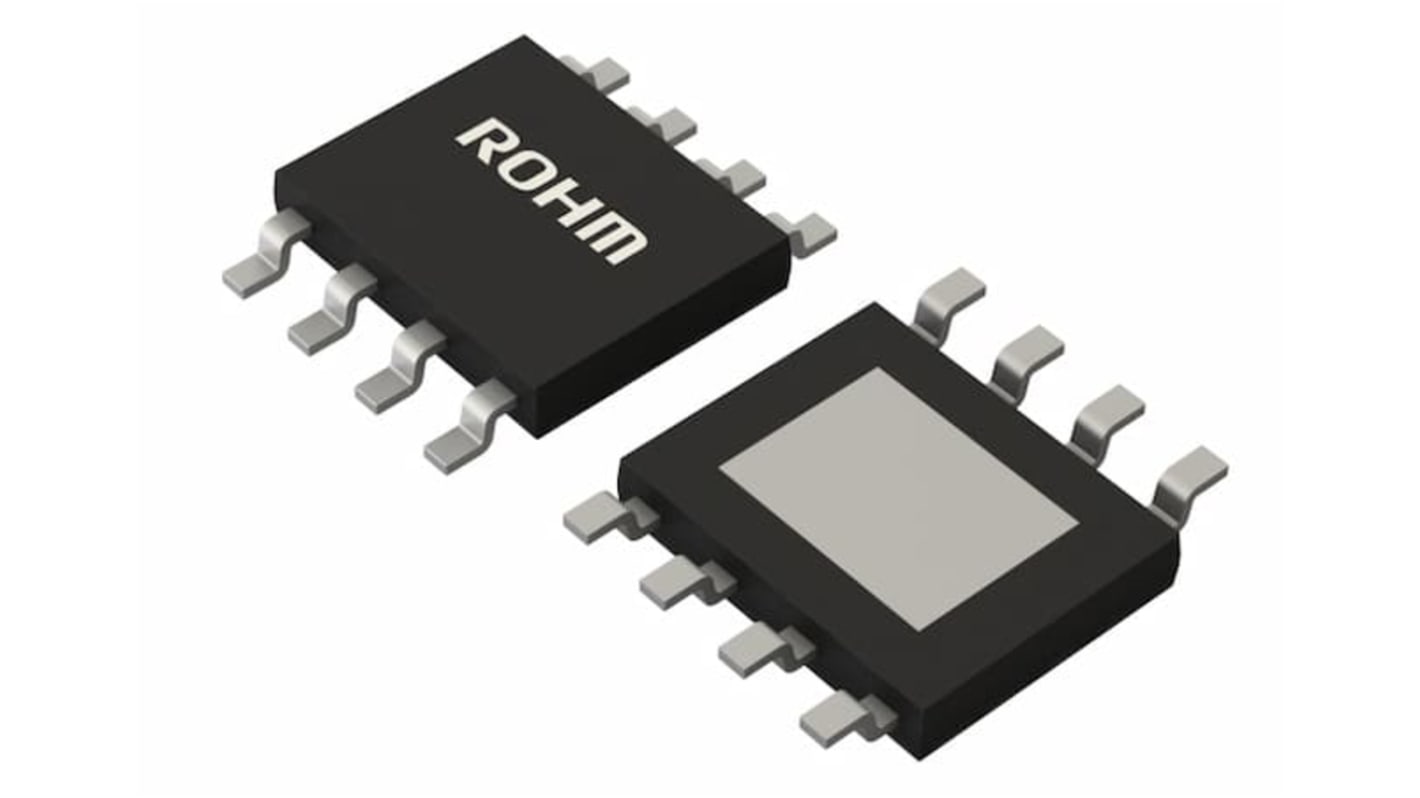

ROHM BD1LBU50EFJ-CE2 Low Side, Low Side Power Switch IC 8-Pin, HTSOP-J8
- RS Stock No.:
- 265-5387
- Mfr. Part No.:
- BD1LBU50EFJ-CE2
- Brand:
- ROHM
Bulk discount available
Subtotal (1 pack of 5 units)*
£4.48
(exc. VAT)
£5.375
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.896 | £4.48 |
| 50 - 95 | £0.766 | £3.83 |
| 100 - 245 | £0.628 | £3.14 |
| 250 - 995 | £0.588 | £2.94 |
| 1000 + | £0.508 | £2.54 |
*price indicative
- RS Stock No.:
- 265-5387
- Mfr. Part No.:
- BD1LBU50EFJ-CE2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Power Switch Topology | Low Side | |
| Power Switch Type | Low Side | |
| Product Type | Power Switch IC | |
| Switch On Resistance RdsOn | 0.35Ω | |
| Number of Outputs | 1 | |
| Package Type | HTSOP-J8 | |
| Maximum Supply Voltage | 5.5V | |
| Pin Count | 8 | |
| Operating Current | 1mA | |
| Maximum Operating Temperature | 150°C | |
| Minimum Operating Temperature | -55°C | |
| Length | 6mm | |
| Width | 4.9 mm | |
| Height | 1mm | |
| Standards/Approvals | RoHS | |
| Series | BD1LBU50EFJ-C | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Power Switch Topology Low Side | ||
Power Switch Type Low Side | ||
Product Type Power Switch IC | ||
Switch On Resistance RdsOn 0.35Ω | ||
Number of Outputs 1 | ||
Package Type HTSOP-J8 | ||
Maximum Supply Voltage 5.5V | ||
Pin Count 8 | ||
Operating Current 1mA | ||
Maximum Operating Temperature 150°C | ||
Minimum Operating Temperature -55°C | ||
Length 6mm | ||
Width 4.9 mm | ||
Height 1mm | ||
Standards/Approvals RoHS | ||
Series BD1LBU50EFJ-C | ||
Automotive Standard AEC-Q100 | ||
The ROHM BD1LB500 Series is an in-vehicle with 1ch low side switch. This switch builds in the overcurrent limiting circuit, thermal shutdown circuit, open load detection circuit and under voltage lock out circuit. It also provides the diagnostic output circuit when an abnormality is detected.
Low standby current
Built in under voltage lock out circuit
Built in open load detection circuit
Built in diagnostic output (ST) terminal
Built in overcurrent limiting circuit
