MPN

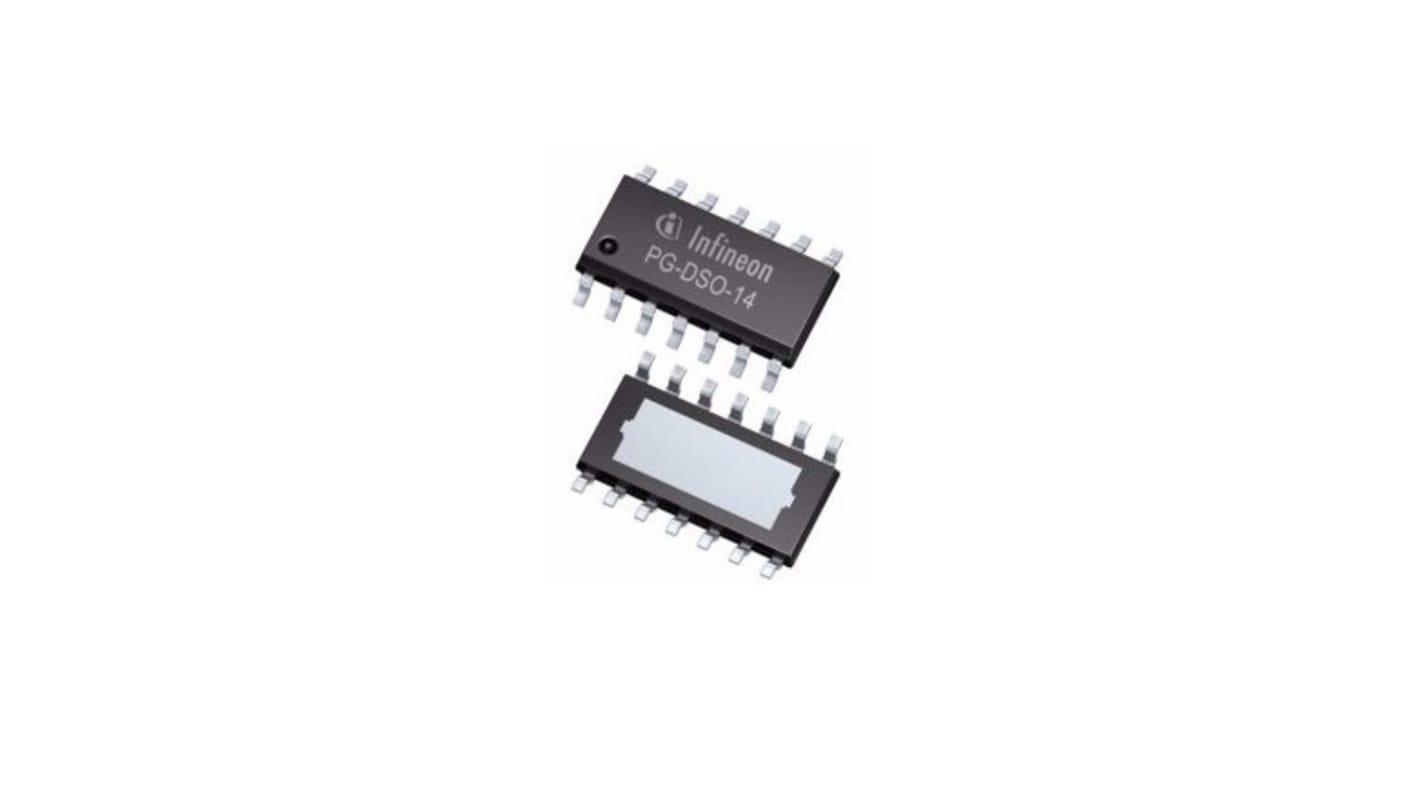

Infineon High Side, High Side Power Control Switch 14-Pin, DSO

RS Stock No.:: 258-0749
Mfr. Part No.:: BTS50121EKBXUMA1
Brand:: Infineon

Infineon High Side, High Side Power Control Switch 14-Pin, DSO

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

RS Stock No.:: 258-0749
Mfr. Part No.:: BTS50121EKBXUMA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Power Switch Topology	High Side
	Product Type	Power Control Switch
	Power Switch Type	High Side
	Switch On Resistance RdsOn	0.012Ω
	Package Type	DSO
	Minimum Supply Voltage	-0.3V
	Pin Count	14
	Maximum Supply Voltage	28V
	Operating Current	2mA
	Maximum Operating Temperature	150°C
	Minimum Operating Temperature	-40°C
	Standards/Approvals	RoHS
	Series	BTS5012-1EKB
	Automotive Standard	AEC-Q100

	Select all
	Brand Infineon
	Power Switch Topology High Side
	Product Type Power Control Switch
	Power Switch Type High Side
	Switch On Resistance RdsOn 0.012Ω
	Package Type DSO
	Minimum Supply Voltage -0.3V
	Pin Count 14
	Maximum Supply Voltage 28V
	Operating Current 2mA
	Maximum Operating Temperature 150°C
	Minimum Operating Temperature -40°C
	Standards/Approvals RoHS
	Series BTS5012-1EKB
	Automotive Standard AEC-Q100

Datasheet - BTS50121EKBXUMA1

The Infineon power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It is specially designed to drive lamps up to H4 / H7 or 3 x P27W + 2 x R5W, as well as LEDs in the harsh automotive environment.

Optimized electromagnetic compatibility

Logic ground independent from load ground

Very low power DMOS leakage current in OFF state

Green product (RoHS compliant)
