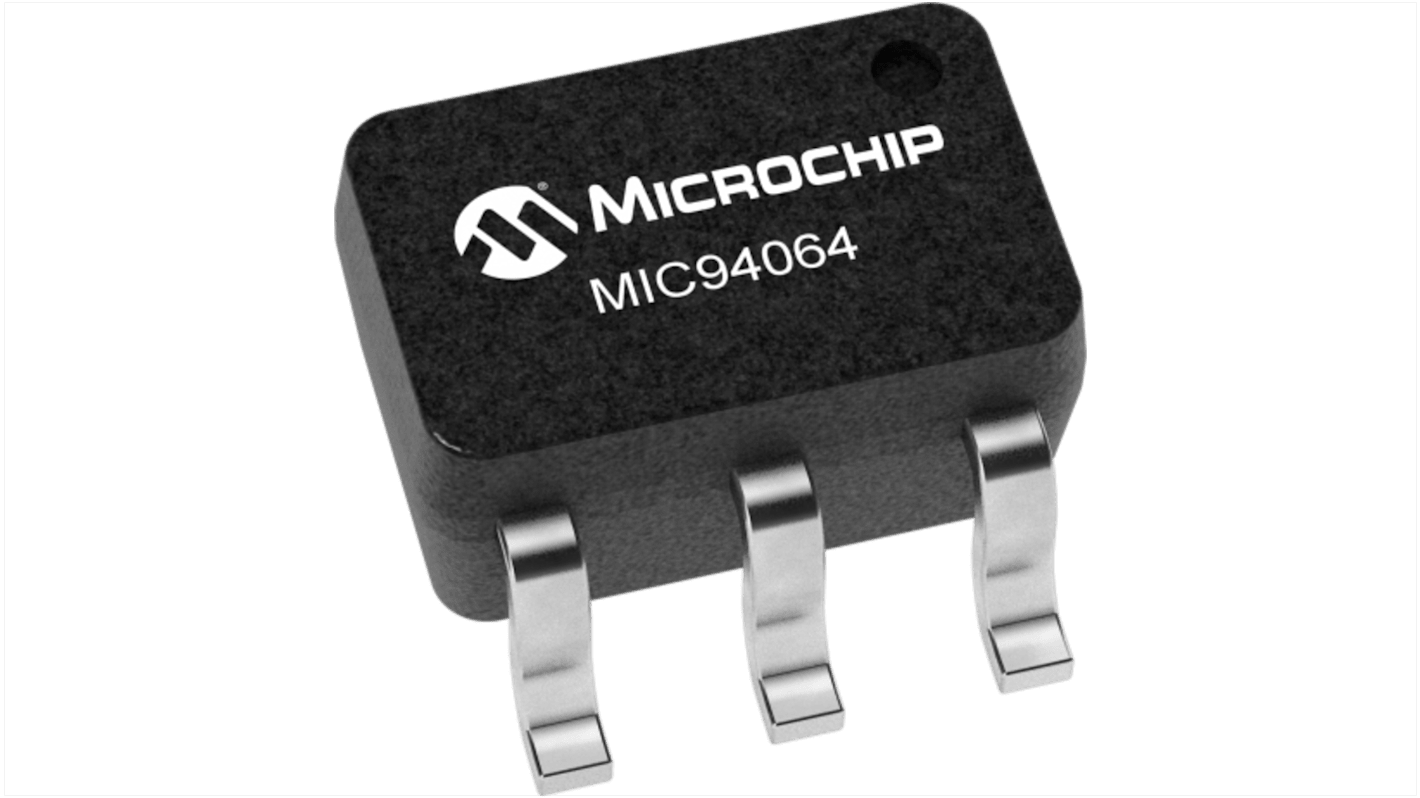

Microchip High Side, High Side Power Switch IC
- RS Stock No.:
- 251-6980
- Mfr. Part No.:
- MIC94064YC6-TR
- Brand:
- Microchip
Subtotal (1 reel of 3000 units)*
£1,542.00
(exc. VAT)
£1,851.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.514 | £1,542.00 |
*price indicative
- RS Stock No.:
- 251-6980
- Mfr. Part No.:
- MIC94064YC6-TR
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Power Switch Topology | High Side | |
| Power Switch Type | High Side | |
| Product Type | Power Switch IC | |
| Switch On Resistance RdsOn | 77mΩ | |
| Number of Outputs | 5 | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 1.7V | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Operating Current | 2A | |
| Maximum Operating Temperature | 125°C | |
| Height | 1.1mm | |
| Standards/Approvals | RoHS | |
| Width | 1.35 mm | |
| Length | 2.2mm | |
| Automotive Standard | No | |
| Series | MIC94064/5 | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Power Switch Topology High Side | ||
Power Switch Type High Side | ||
Product Type Power Switch IC | ||
Switch On Resistance RdsOn 77mΩ | ||
Number of Outputs 5 | ||
Mount Type Surface | ||
Minimum Supply Voltage 1.7V | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Operating Current 2A | ||
Maximum Operating Temperature 125°C | ||
Height 1.1mm | ||
Standards/Approvals RoHS | ||
Width 1.35 mm | ||
Length 2.2mm | ||
Automotive Standard No | ||
Series MIC94064/5 | ||
The Microchip MIC94064 are high-side load switches designed for operation between 1.7V to 5.5V. The devices contain a low on-resistance P-channel MOSFET that supports over 2A of continuous current.
Battery switch-over circuits
2A continuous operating current
Digital Cameras
Portable instrumentation
