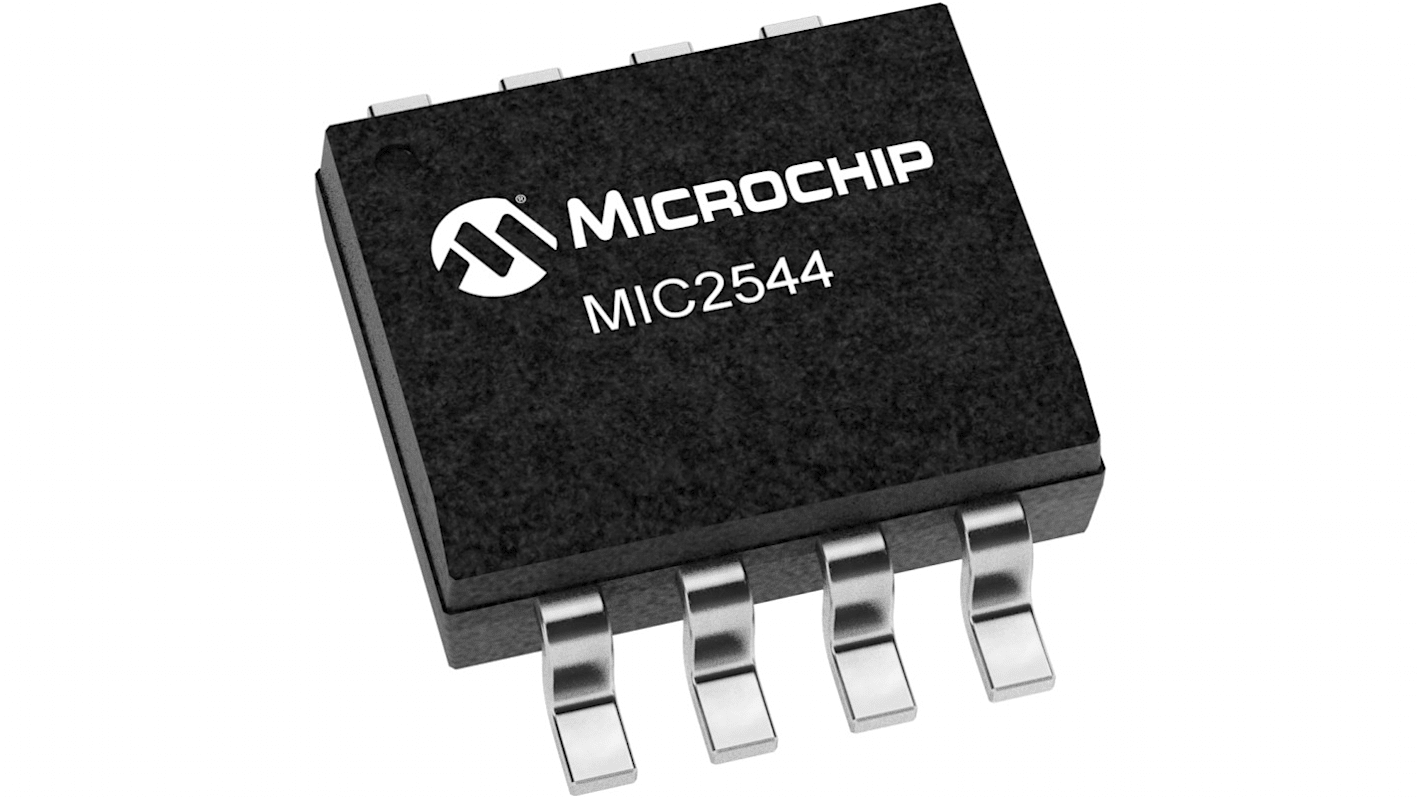

Microchip High Side, High Side Power Switch IC 8-Pin, SOIC

View all Power Switch ICs
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
239-5600
Mfr. Part No.:
MIC2544-1YM-TR
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Power Switch Type

High Side

Product Type

Power Switch IC

Power Switch Topology

High Side

Switch On Resistance RdsOn

120mΩ

Number of Outputs

5

Interface Type

Serial

Mount Type

Surface

Minimum Supply Voltage

2.7V

Package Type

SOIC

Pin Count

8

Maximum Supply Voltage

5.5V

Maximum Operating Temperature

125°C

Operating Current

75μA

Minimum Operating Temperature

-40°C

Standards/Approvals

RoHS

Length

4.93mm

Height

1.63mm

Width

3.94 mm

Automotive Standard

No

Series

MIC2544

The Microchip MIC2544 series are integrated, high-side power switches optimized for low-loss DC power switching and other power management applications, including Advanced Configuration and Power Interface (ACPI). The MIC2544 are cost-effective, highly integrated solutions that require few external components to satisfy USB and ACPI requirements. The load current management features include a precision resistor-programmable output current-limit and a soft-start circuit that minimizes inrush current when the switch is enabled. Thermal shutdown, along with current-limit, protects the switch and the attached device.

Input range is from 2.7 V to 5.5 V

Adjustable current-limit up to 1.5A

Reverse current flow blocking

Typical on-state supply current of 75 μA

Typical off-state supply current of 1 μA

Maximum on-resistance of 120 mΩ
