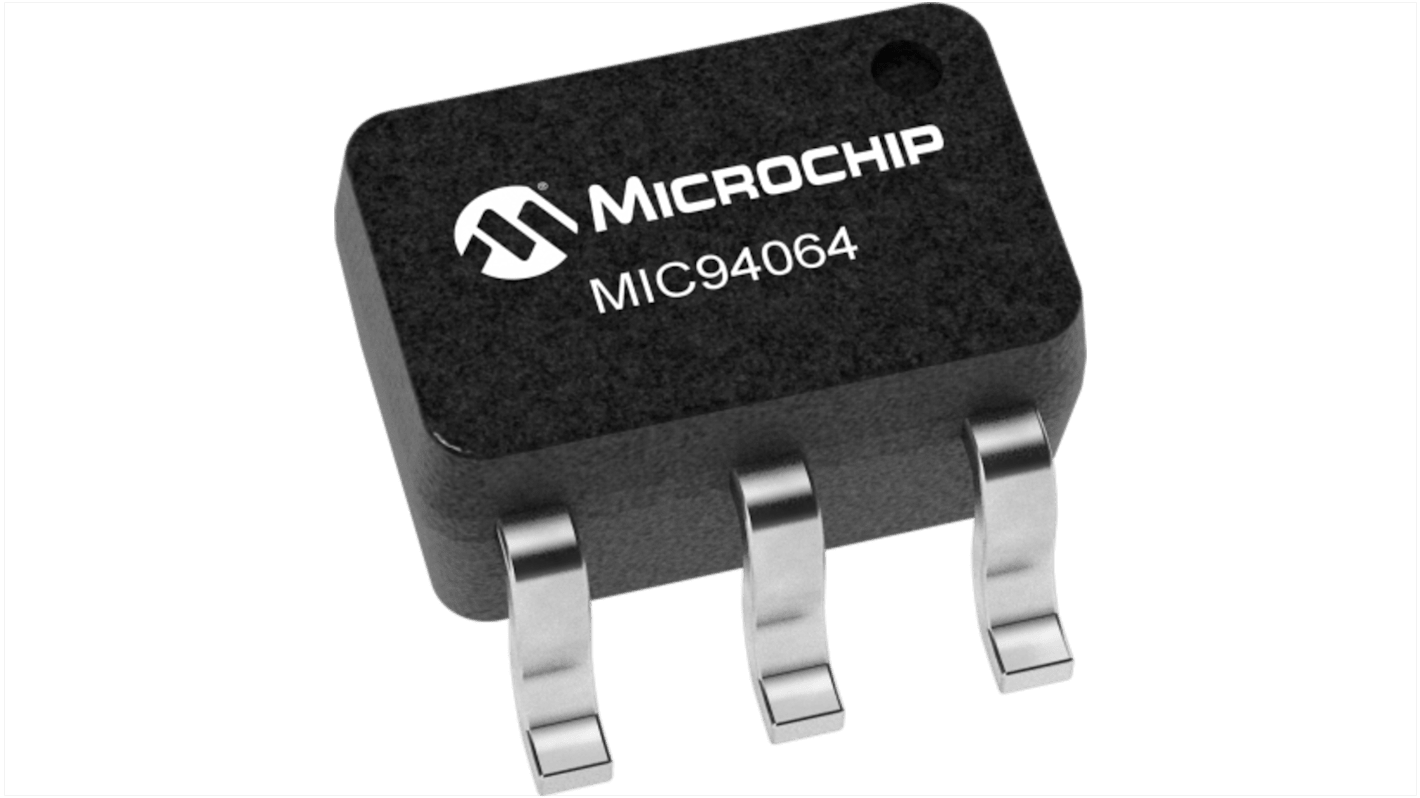

Microchip MIC94064YC6-TR High Side, High Side Power Switch IC
- RS Stock No.:
- 251-6981
- Mfr. Part No.:
- MIC94064YC6-TR
- Brand:
- Microchip
Bulk discount available
Subtotal (1 pack of 10 units)*
£5.04
(exc. VAT)
£6.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 60 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.504 | £5.04 |
| 50 - 90 | £0.426 | £4.26 |
| 100 - 240 | £0.388 | £3.88 |
| 250 - 990 | £0.38 | £3.80 |
| 1000 + | £0.371 | £3.71 |
*price indicative
- RS Stock No.:
- 251-6981
- Mfr. Part No.:
- MIC94064YC6-TR
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Power Switch IC | |
| Power Switch Type | High Side | |
| Power Switch Topology | High Side | |
| Switch On Resistance RdsOn | 77mΩ | |
| Number of Outputs | 5 | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 1.7V | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Operating Current | 2A | |
| Maximum Operating Temperature | 125°C | |
| Width | 1.35 mm | |
| Height | 1.1mm | |
| Standards/Approvals | RoHS | |
| Length | 2.2mm | |
| Automotive Standard | No | |
| Series | MIC94064/5 | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Power Switch IC | ||
Power Switch Type High Side | ||
Power Switch Topology High Side | ||
Switch On Resistance RdsOn 77mΩ | ||
Number of Outputs 5 | ||
Mount Type Surface | ||
Minimum Supply Voltage 1.7V | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Operating Current 2A | ||
Maximum Operating Temperature 125°C | ||
Width 1.35 mm | ||
Height 1.1mm | ||
Standards/Approvals RoHS | ||
Length 2.2mm | ||
Automotive Standard No | ||
Series MIC94064/5 | ||
The Microchip MIC94064 are high-side load switches designed for operation between 1.7V to 5.5V. The devices contain a low on-resistance P-channel MOSFET that supports over 2A of continuous current.
Battery switch-over circuits
2A continuous operating current
Digital Cameras
Portable instrumentation
