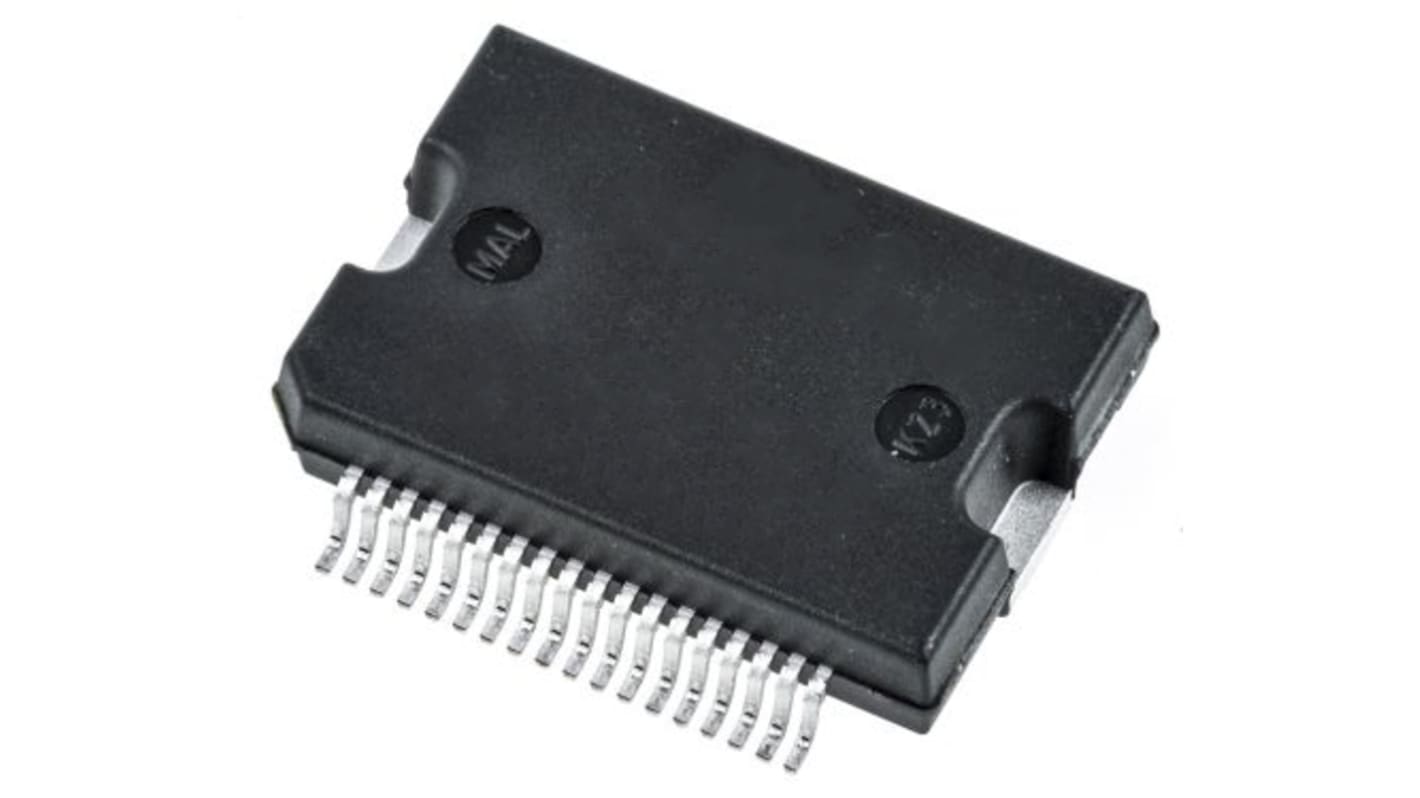

STMicroelectronics VND5N07TR-E 8High Side, High side Power Switch IC 36-Pin, PowerSO-36
- RS Stock No.:
- 233-3115
- Mfr. Part No.:
- VND5N07TR-E
- Brand:
- STMicroelectronics
Subtotal (1 reel of 2500 units)*
£2,522.50
(exc. VAT)
£3,027.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
2500 + | £1.009 | £2,522.50 |
*price indicative
- RS Stock No.:
- 233-3115
- Mfr. Part No.:
- VND5N07TR-E
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Power Switch Topology | High Side | |
Power Switch Type | High side | |
Number of Channels | 8 | |
Maximum Operating Supply Voltage | 40 V | |
Number of Outputs | 8 | |
Maximum Operating Current | 0.12A | |
Package Type | PowerSO-36 | |
Pin Count | 36 | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Power Switch Topology High Side | ||
Power Switch Type High side | ||
Number of Channels 8 | ||
Maximum Operating Supply Voltage 40 V | ||
Number of Outputs 8 | ||
Maximum Operating Current 0.12A | ||
Package Type PowerSO-36 | ||
Pin Count 36 | ||
The STMicroelectronics ND5N07-E is a monolithic device designed using STMicroelectronics®VIPower®M0 technology, intended for replacement of standard Power MOSFETs from DC to 50 KHz applications. Built-in thermal shutdown, linear current limitation and overvoltage clamp protect the chip in harsh environments. Fault feedback can be detected by monitoring the voltage at the input pin.
Linear current limitation
Thermal shutdown
Short circuit protection
Integrated clamp
Low current drawn from input pin
Diagnostic feedback through input pin
ESD protection
Direct access to the gate of the power mosfet (analog driving)
Compatible with standard Power MOSFET
Thermal shutdown
Short circuit protection
Integrated clamp
Low current drawn from input pin
Diagnostic feedback through input pin
ESD protection
Direct access to the gate of the power mosfet (analog driving)
Compatible with standard Power MOSFET
