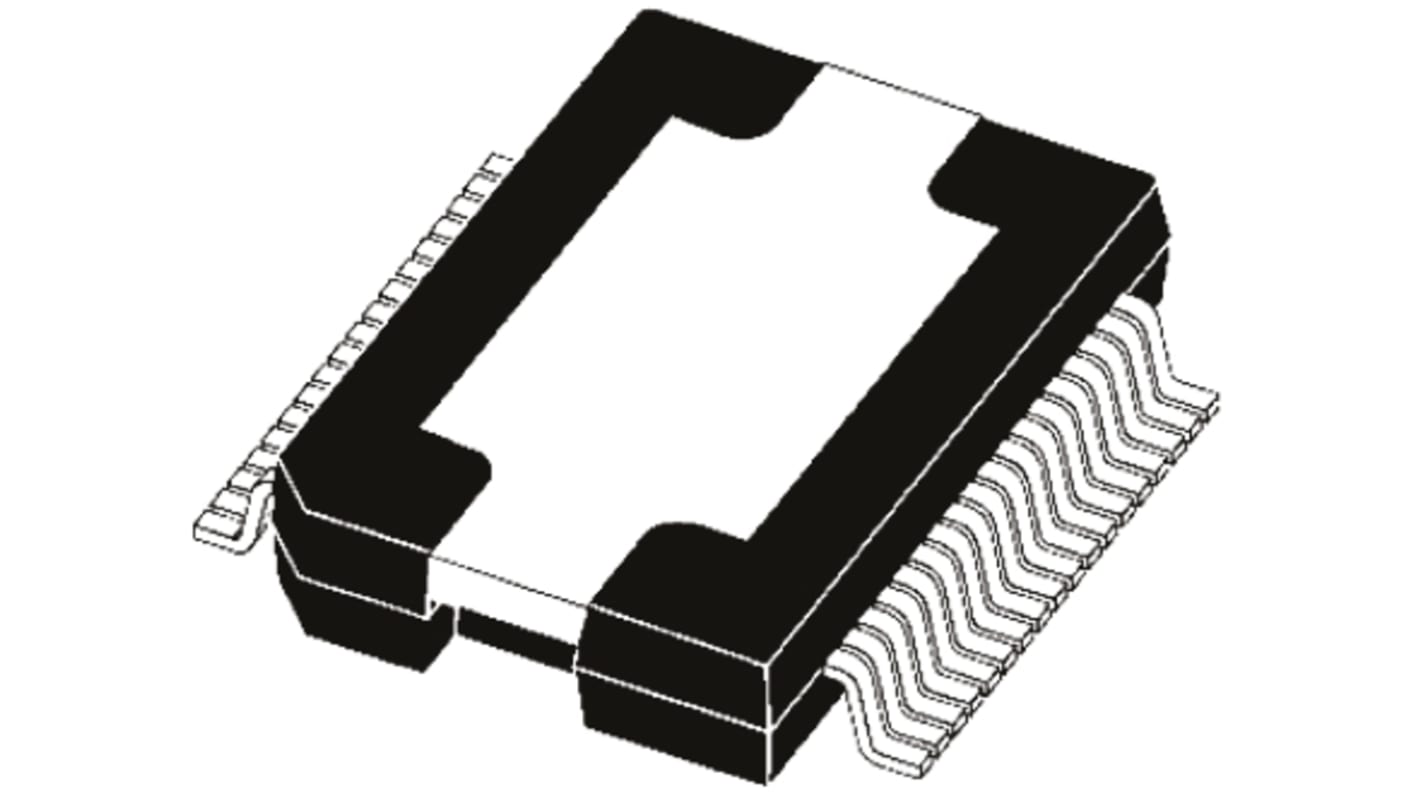

STMicroelectronics ISO8200B High Side 8, Power Switch Power Switch IC 36-Pin, PowerSO
- RS Stock No.:
- 168-8692
- Mfr. Part No.:
- ISO8200B
- Brand:
- STMicroelectronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 168-8692
- Mfr. Part No.:
- ISO8200B
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Power Switch IC | |
| Power Switch Topology | High Side | |
| Power Switch Type | Power Switch | |
| Switch On Resistance RdsOn | 0.24Ω | |
| Number of Outputs | 8 | |
| Number of Inputs | 8 | |
| Interface Type | Parallel | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 0.3V | |
| Package Type | PowerSO | |
| Pin Count | 36 | |
| Maximum Supply Voltage | 36V | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Operating Current | 0.7A | |
| Length | 16mm | |
| Height | 3.5mm | |
| Width | 11.1mm | |
| Standards/Approvals | IEC 61000-4-8, UL 1577, IEC 61000-4-5, IEC 61000-4-4, IEC 61000-4-2, IEC 60747-5-2 | |
| Automotive Standard | No | |
| Series | ISO8200B | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Power Switch IC | ||
Power Switch Topology High Side | ||
Power Switch Type Power Switch | ||
Switch On Resistance RdsOn 0.24Ω | ||
Number of Outputs 8 | ||
Number of Inputs 8 | ||
Interface Type Parallel | ||
Mount Type Surface | ||
Minimum Supply Voltage 0.3V | ||
Package Type PowerSO | ||
Pin Count 36 | ||
Maximum Supply Voltage 36V | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Operating Current 0.7A | ||
Length 16mm | ||
Height 3.5mm | ||
Width 11.1mm | ||
Standards/Approvals IEC 61000-4-8, UL 1577, IEC 61000-4-5, IEC 61000-4-4, IEC 61000-4-2, IEC 60747-5-2 | ||
Automotive Standard No | ||
Series ISO8200B | ||
- COO (Country of Origin):
- MY
Galvanic Isolated Power Switch, STMicroelectronics
