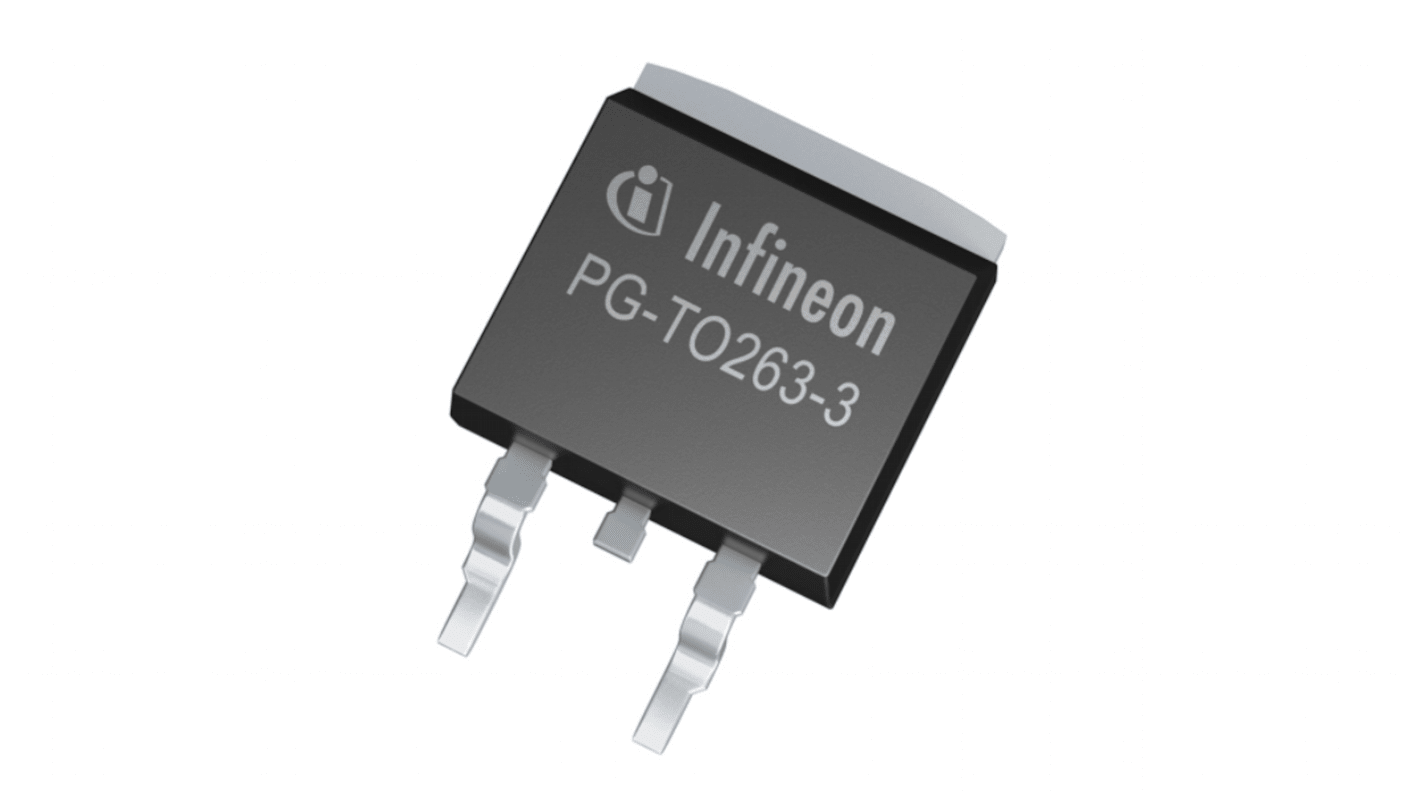

Infineon Low Side 1, Low Side Power Switch IC 3-Pin, TO-263
- RS Stock No.:
- 229-1757
- Mfr. Part No.:
- BTS3018TCATMA1
- Brand:
- Infineon
Subtotal (1 reel of 1000 units)*
£3,270.00
(exc. VAT)
£3,920.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £3.27 | £3,270.00 |
*price indicative
- RS Stock No.:
- 229-1757
- Mfr. Part No.:
- BTS3018TCATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Power Switch Topology | Low Side | |
| Product Type | Power Switch IC | |
| Power Switch Type | Low Side | |
| Switch On Resistance RdsOn | 44mΩ | |
| Number of Outputs | 2 | |
| Number of Inputs | 1 | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 2V | |
| Package Type | TO-263 | |
| Maximum Supply Voltage | 60V | |
| Pin Count | 3 | |
| Operating Current | 6A | |
| Maximum Operating Temperature | 150°C | |
| Minimum Operating Temperature | -40°C | |
| Length | 10mm | |
| Standards/Approvals | No | |
| Width | 15 mm | |
| Height | 4.4mm | |
| Automotive Standard | AEC | |
| Series | HITFET | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Power Switch Topology Low Side | ||
Product Type Power Switch IC | ||
Power Switch Type Low Side | ||
Switch On Resistance RdsOn 44mΩ | ||
Number of Outputs 2 | ||
Number of Inputs 1 | ||
Mount Type Surface | ||
Minimum Supply Voltage 2V | ||
Package Type TO-263 | ||
Maximum Supply Voltage 60V | ||
Pin Count 3 | ||
Operating Current 6A | ||
Maximum Operating Temperature 150°C | ||
Minimum Operating Temperature -40°C | ||
Length 10mm | ||
Standards/Approvals No | ||
Width 15 mm | ||
Height 4.4mm | ||
Automotive Standard AEC | ||
Series HITFET | ||
The Infineon single channel smart low-side power switch in a PG-TO263-3-2 package providing embedded protective functions. The device is monolithically integrated with a N channel vertical power FET. It is automotive qualified and can be used in 12V and 24V automotive applications as well as in industrial applications.
It is RoHS compliant and AEC qualified
It has high energy capability
It has ESD protection
