- RS Stock No.:
- 223-8491
- Mfr. Part No.:
- BTS70121EPAXUMA1
- Brand:
- Infineon
12000 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 10)
£1.25
(exc. VAT)
£1.50
(inc. VAT)
Units | Per unit | Per Pack* |
10 - 40 | £1.25 | £12.50 |
50 - 90 | £1.188 | £11.88 |
100 - 240 | £1.138 | £11.38 |
250 - 490 | £1.088 | £10.88 |
500 + | £1.013 | £10.13 |
*price indicative |
- RS Stock No.:
- 223-8491
- Mfr. Part No.:
- BTS70121EPAXUMA1
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
Product Details

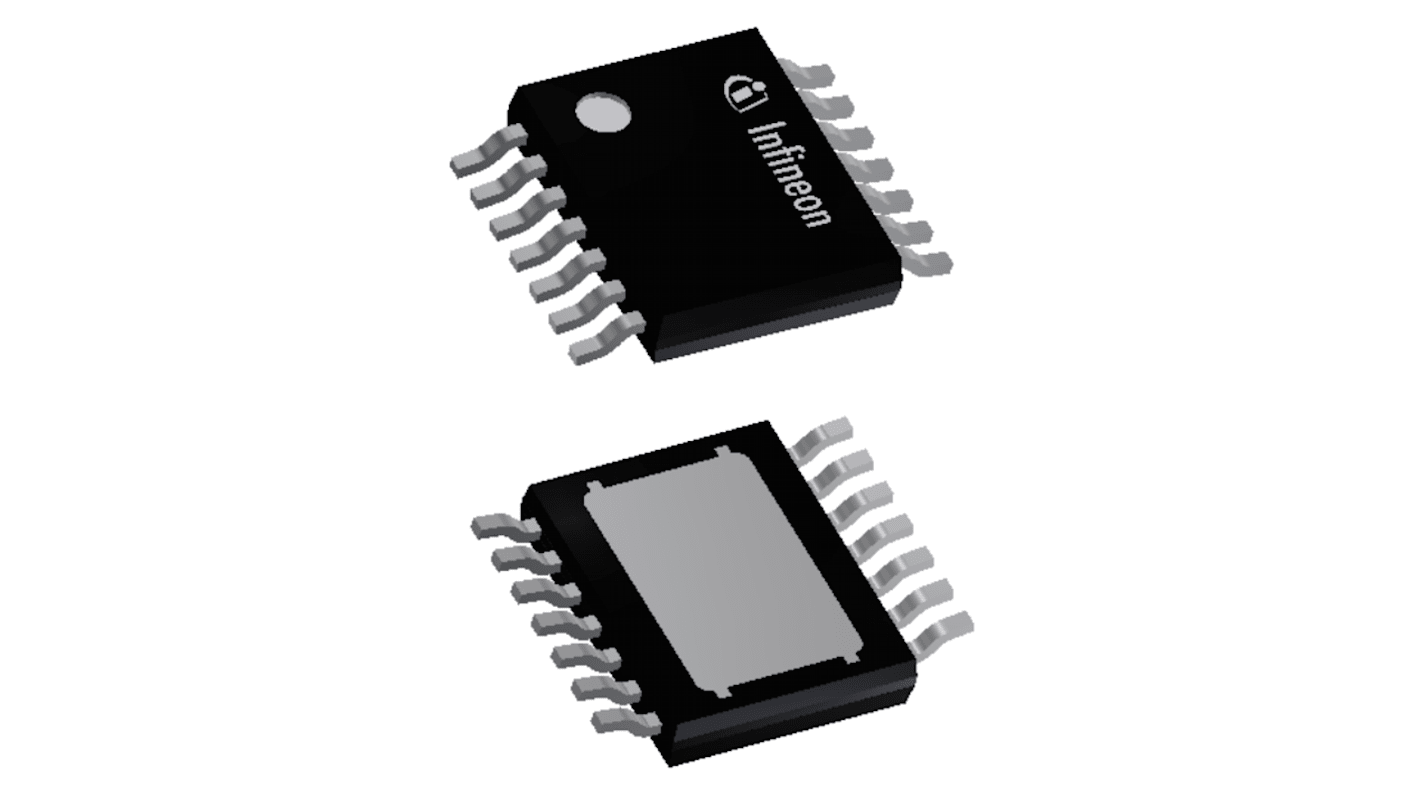

The Infineon BTS7012 series is a smart high-side power switch, providing protection functions and diagnosis. The device is integrated in SMART7 technology. It is suitable for resistive, inductive and capacitive load. It provides absolute and dynamic temperature limitation with controlled restart and over current protection with intelligent restart control.
High-side switch with diagnosis and embedded protection
Part of PROFET™+2 12V family
Rever save for low power dissipation in reverse polarity
Switch ON capability while inverse current condition
Green Product
Qualified in accordance with AEC Q100 grade 1
Part of PROFET™+2 12V family
Rever save for low power dissipation in reverse polarity
Switch ON capability while inverse current condition
Green Product
Qualified in accordance with AEC Q100 grade 1
Specifications
Attribute | Value |
---|---|
Power Switch Type | High Side |
Power Switch Topology | High Side |
Number of Channels | 1 |
Maximum Operating Supply Voltage | 28 V |
Number of Outputs | 1 |
Maximum Operating Current | 0.004A |
Package Type | TSDSO |
Pin Count | 14 |
