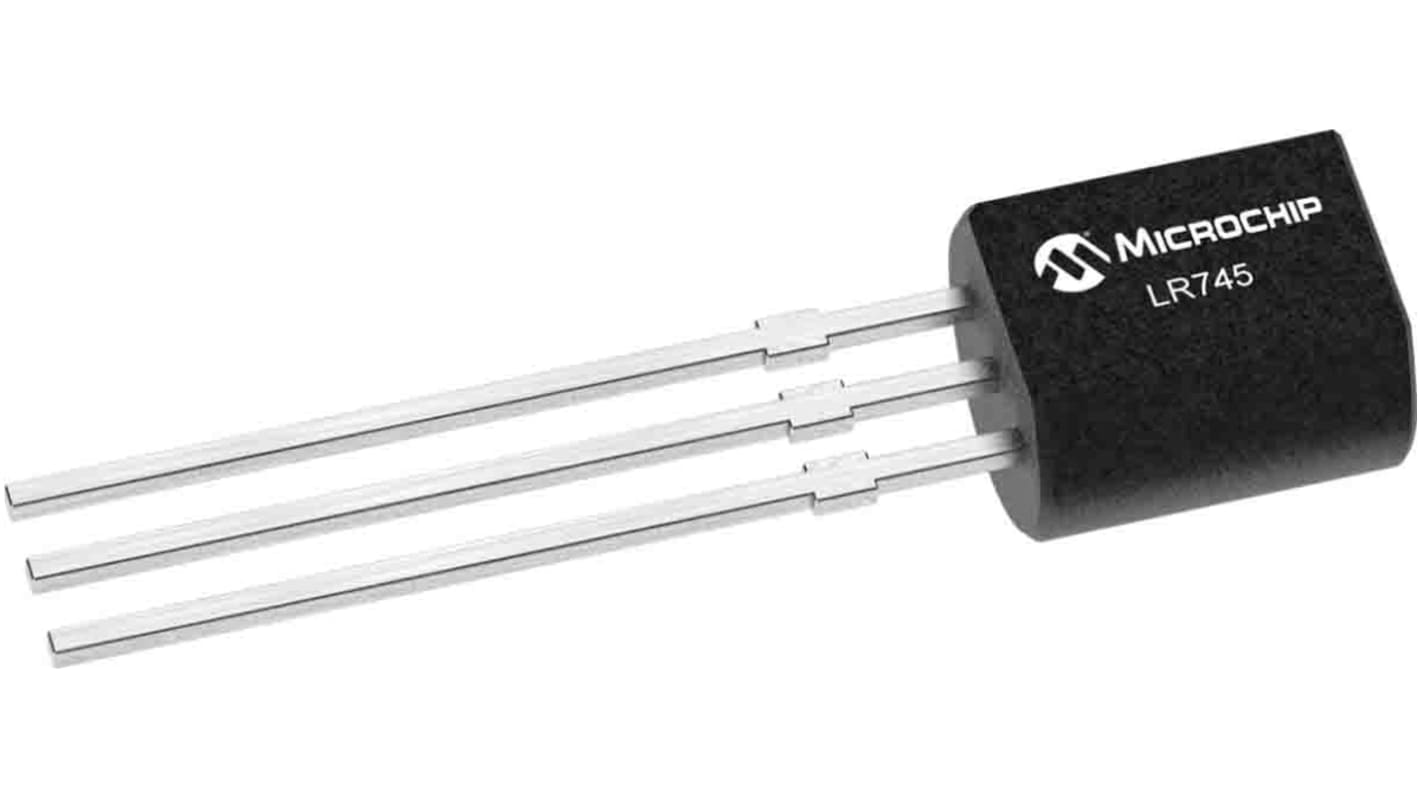

Microchip LR745N3-G Power Switch IC 3-Pin, TO-92

View all Power Switch ICs

Subtotal (1 bag of 1000 units)*

£433.00

(exc. VAT)

£520.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 1,000 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
1000 +£0.433£433.00

*price indicative

RS Stock No.:
170-4352
Mfr. Part No.:
LR745N3-G
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Maximum Operating Supply Voltage

450 V

Maximum Operating Current

0.0005A

Package Type

TO-92

Pin Count

3

COO (Country of Origin):
TH

LR745, High Input Voltage SMPS Start-up, Microchip


The Microchip LR745 high input voltage SMPS start-up circuit is ideally suited for use with industry standard low voltage PWM ICs having start thresholds of 13.9 to 18.0V. It operates on 35V to 450V voltage range. This circuit allows the PWM ICs to be operated from rectified 120 or 240VAC lines, and eliminates the use of power resistors often used for this purpose. The internal circuitry of the LR745 allows the PWM ICs to operate at a VCC voltage below their start threshold voltage after start-up. The auxiliary voltage can be less than the start threshold voltage, which allows for improved efficiency. Current from the high voltage line is drawn only during the start-up period. After start-up, the internal high voltage line is disconnected from the IC, thereby reducing the continuous power dissipation to a minimum.

Output current limiting
Very low power consumption after start-up
Lead(Pb) free
TO-92 (fixed voltage) package


PWM (Pulse Width Modulation) Controllers, Microchip
