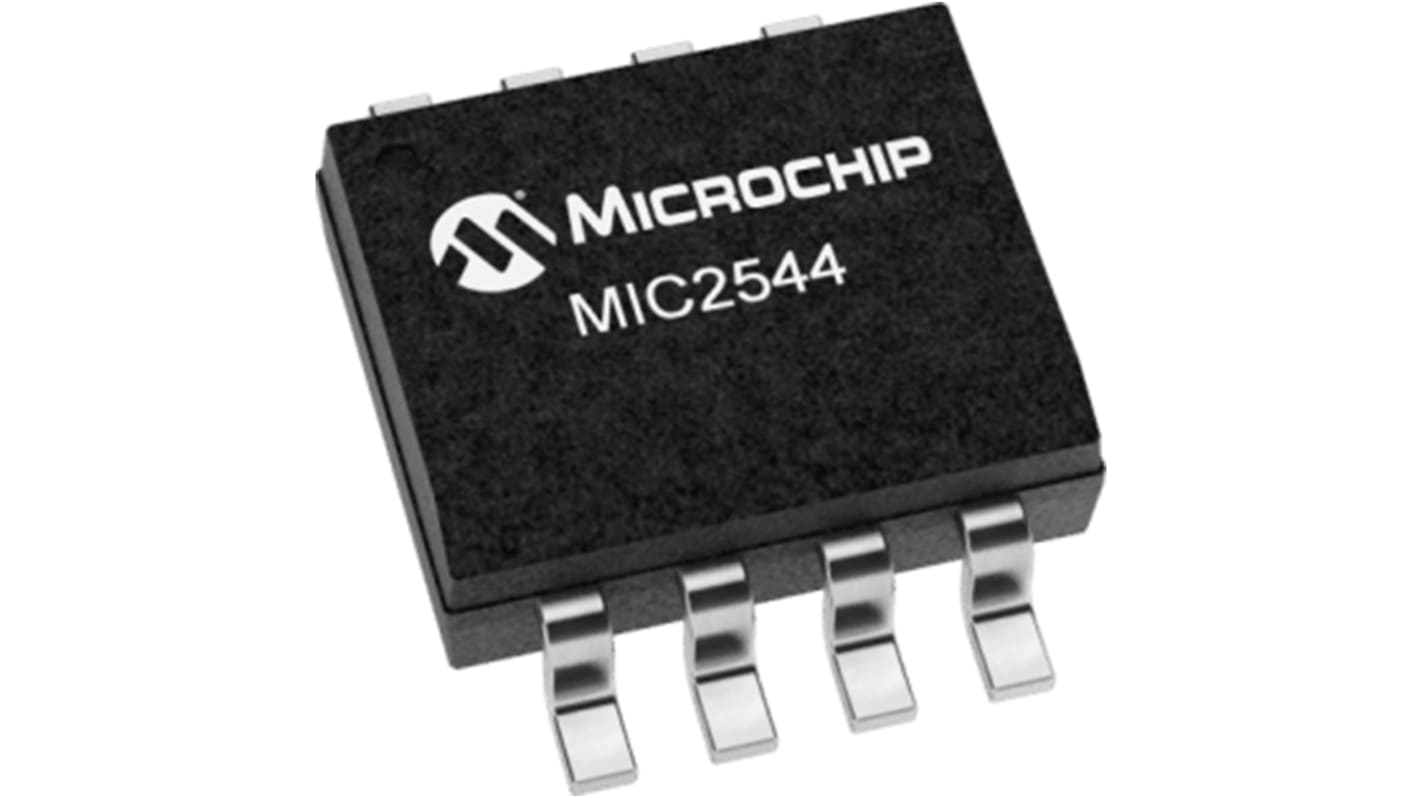

Microchip MIC2544-1YMM, 1High Side, High Side Switch Power Switch IC 8-Pin, MSOP
- RS Stock No.:
- 177-0655
- Mfr. Part No.:
- MIC2544-1YMM
- Brand:
- Microchip
Bulk discount available
Subtotal (1 pack of 10 units)*
£9.20
(exc. VAT)
£11.00
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 2,560 unit(s), ready to ship
Units | Per unit | Per Pack* |
---|---|---|
10 - 20 | £0.92 | £9.20 |
30 - 90 | £0.871 | £8.71 |
100 + | £0.787 | £7.87 |
*price indicative
- RS Stock No.:
- 177-0655
- Mfr. Part No.:
- MIC2544-1YMM
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Power Switch Topology | High Side | |
Power Switch Type | High Side Switch | |
Switch On Resistance | 120mΩ | |
Number of Channels | 1 | |
Maximum Operating Supply Voltage | 5.5 V | |
Maximum Operating Current | 1.5A | |
Mounting Type | Surface Mount | |
Package Type | MSOP | |
Pin Count | 8 | |
Maximum Operating Temperature | +125 °C | |
Minimum Operating Temperature | -40 °C | |
Dimensions | 3 x 3 x 0.92mm | |
Series | MIC2544 | |
Select all | ||
---|---|---|
Brand Microchip | ||
Power Switch Topology High Side | ||
Power Switch Type High Side Switch | ||
Switch On Resistance 120mΩ | ||
Number of Channels 1 | ||
Maximum Operating Supply Voltage 5.5 V | ||
Maximum Operating Current 1.5A | ||
Mounting Type Surface Mount | ||
Package Type MSOP | ||
Pin Count 8 | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 3 x 3 x 0.92mm | ||
Series MIC2544 | ||
The MIC2544 and MIC2548 are integrated, high-side power switches optimized for low loss DC power switching and other power management applications, including Advanced Configuration and Power Interface (ACPI). The MIC2544/48 is a cost-effective, highly integrated solution that requires few external components to satisfy USB and ACPI requirements.
2.7V to 5.5V input
Adjustable current-limit up to 1.5A
Reverse current flow blocking (no "body diode")
75μA typical on-state supply current
1μA typical off-state supply current
120mΩ maximum on-resistance
2.7V to 5.5V input
Adjustable current-limit up to 1.5A
Reverse current flow blocking (no "body diode")
75μA typical on-state supply current
1μA typical off-state supply current
120mΩ maximum on-resistance
Open-drain fault flag
Thermal shutdown
Thermal shutdown output latch (MIC2548)
2ms (slow) turn-on and fast turnoff
Available with active-high or active-low enable
Adjustable current-limit up to 1.5A
Reverse current flow blocking (no "body diode")
75μA typical on-state supply current
1μA typical off-state supply current
120mΩ maximum on-resistance
2.7V to 5.5V input
Adjustable current-limit up to 1.5A
Reverse current flow blocking (no "body diode")
75μA typical on-state supply current
1μA typical off-state supply current
120mΩ maximum on-resistance
Open-drain fault flag
Thermal shutdown
Thermal shutdown output latch (MIC2548)
2ms (slow) turn-on and fast turnoff
Available with active-high or active-low enable
