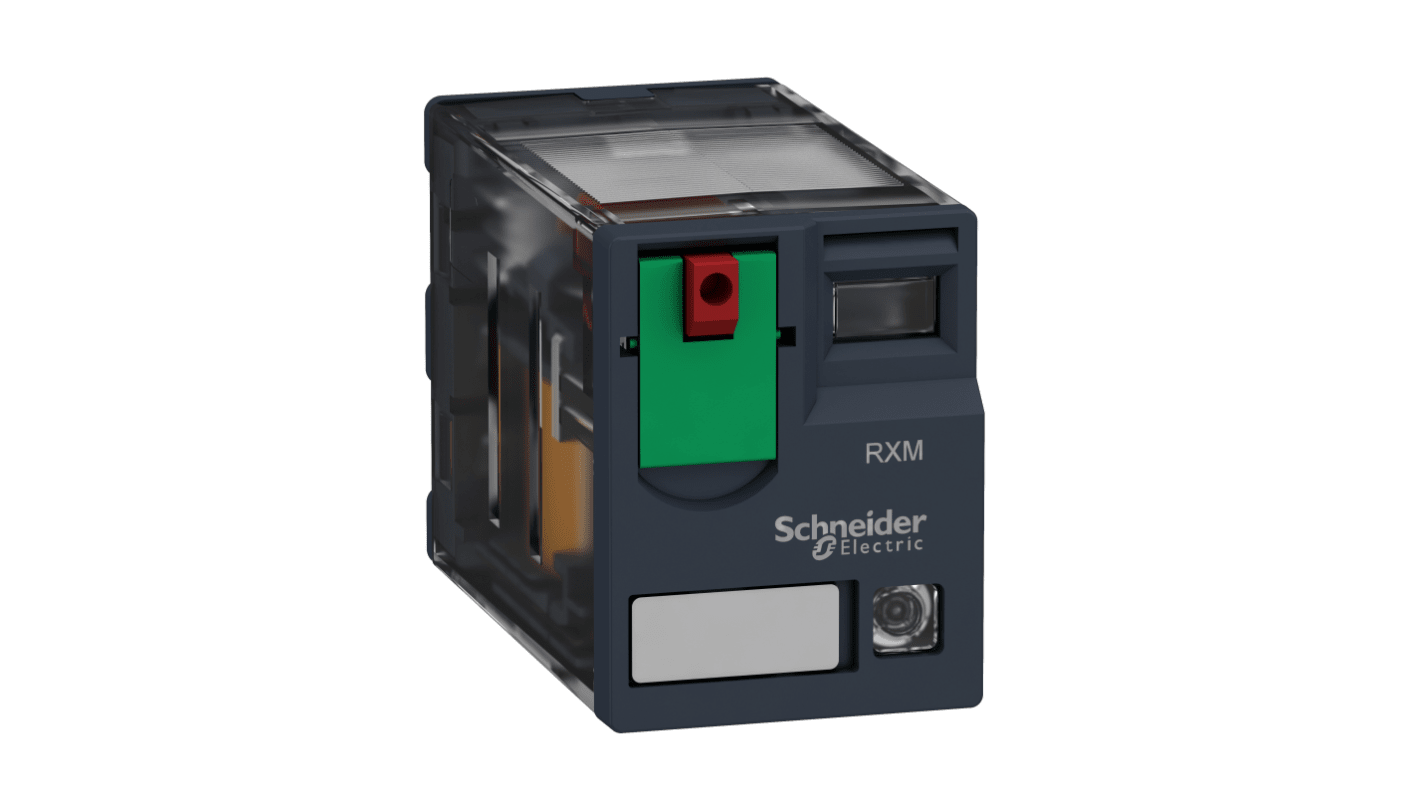

Schneider Electric Plug In Power Relay, 230V ac Coil, 8A Switching Current, 4PDT

Introducing Schneider Electrics compact RXM miniature relays with LED. They are often used to increase the functions in electrical enclosures, predominantly for industrial applications (machine/building equipment and HVAC). These relays can be referred to as an electromechanical relay or an industrial switch.

A relay is an electrical switch that is operated by electrical pulses, their primary function is to open and close a circuit. When power passes through a circuit, a relay switches position (usually from NC to NO) using an internal coil which generates a magnetic force. This force then holds the relay in a NO position, when the current is switched off the relay returns to the NC position. This function is what makes these non-latching relays perfect for push-button applications such as keyboards and micro-controller input buttons.

This power relay from Schneider Electric is a versatile solution for various electrical applications. With a 4PDT contact configuration and contact material made of silver alloy, it offers reliable performance. The coil power of 1.2 W and coil voltage of 230V AC ensure efficient operation. With a mounting style of plug In and meeting standards like CE and UL, this power relay is a reliable choice for various industries.

• The relay is straightforward to install and program, making integration into existing devices easy
• The miniature relay offers hassle-free operation out of the box
• Features a test button and a mechanical indicator that displays the relay’s status

• Suitable for industrial automation systems
• Ideal for use in electrical control panels
• Can be used for controlling lighting circuits
• Used in HVAC systems for switching applications

Yes, this power relay can handle a maximum switching power of 1.5 kVA.

Yes, it is reliable for industrial automation systems.

Yes, this power relay is ideal for controlling lighting circuits.

Yes, it is CE and UL certified for safety compliance.

The maximum operating temperature for this relay is +55 °C.
