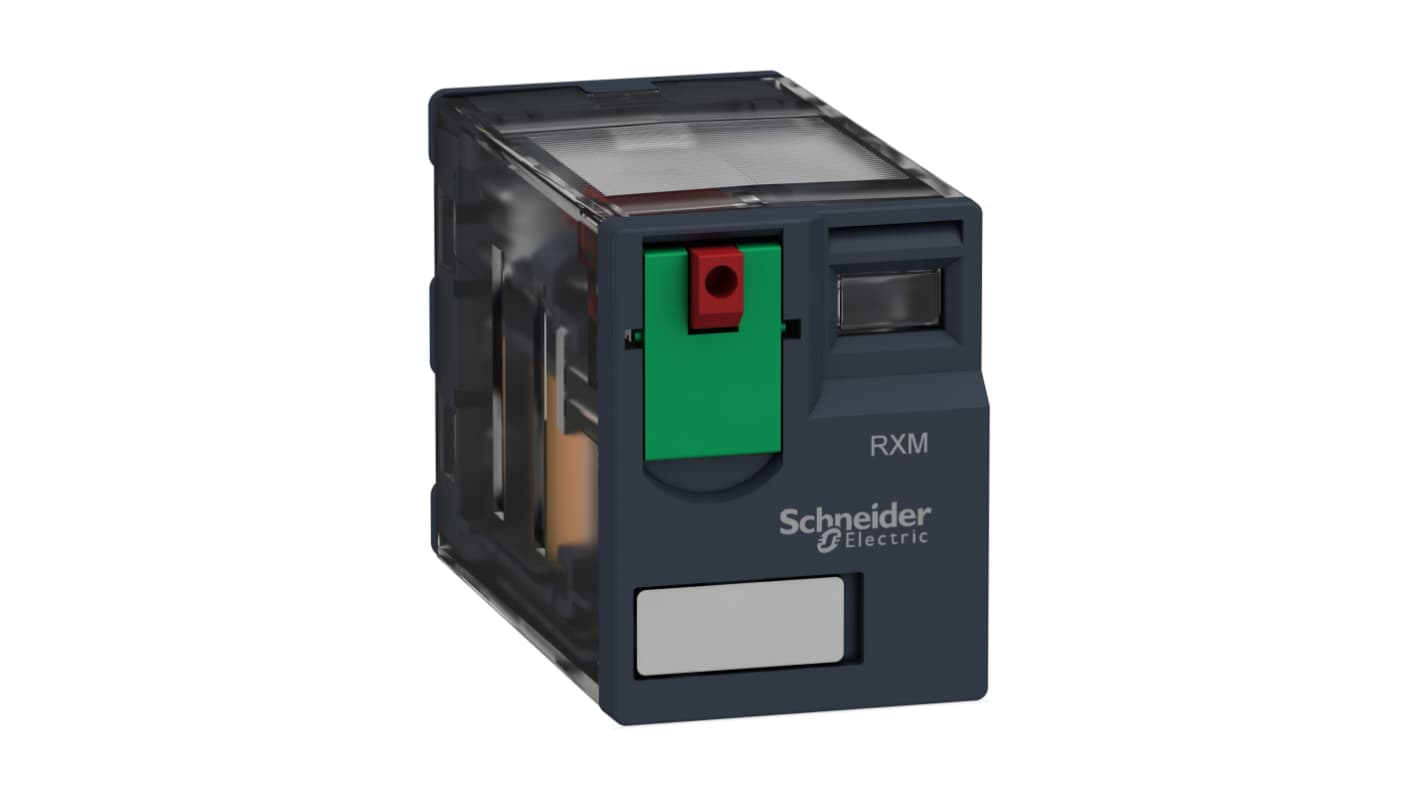

Schneider Electric Plug In Power Relay, 230V ac Coil, 3A Switching Current, 4PDT
- RS Stock No.:
- 884-1613
- Distrelec Article No.:
- 302-15-546
- Mfr. Part No.:
- RXM4GB1P7
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£10.29
(exc. VAT)
£12.35
(inc. VAT)
FREE delivery for orders over £50.00
- 11 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Units | Per unit |
---|---|
1 - 4 | £10.29 |
5 - 9 | £9.99 |
10 + | £9.42 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 884-1613
- Distrelec Article No.:
- 302-15-546
- Mfr. Part No.:
- RXM4GB1P7
- Brand:
- Schneider Electric
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Coil Voltage | 230V ac | |
Contact Configuration | 4PDT | |
Mounting Type | Plug In | |
Switching Current | 3A | |
Number of Poles | 4 | |
Series | Harmony Relay RXM | |
Latching | No | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 250V | |
Length | 21mm | |
Coil Resistance | 15000Ω | |
Coil Power | 1.2W | |
Contact Material | Gold Plated | |
Better World Product | Yes | |
Standards Met | CE, CSA, EN/IEC, GOST, Lloyd's, REACH, RoHS Compliant, UL | |
Height | 27mm | |
Life | 100000 cycles | |
Depth | 47.7mm | |
Maximum Operating Temperature | +55°C | |
Minimum Operating Temperature | -40°C | |
Better World Verification | Green Premium | |
Maximum Switching Power DC | 84 W | |
Maximum Switching Power AC | 750VA | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Coil Voltage 230V ac | ||
Contact Configuration 4PDT | ||
Mounting Type Plug In | ||
Switching Current 3A | ||
Number of Poles 4 | ||
Series Harmony Relay RXM | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 250V | ||
Length 21mm | ||
Coil Resistance 15000Ω | ||
Coil Power 1.2W | ||
Contact Material Gold Plated | ||
Better World Product Yes | ||
Standards Met CE, CSA, EN/IEC, GOST, Lloyd's, REACH, RoHS Compliant, UL | ||
Height 27mm | ||
Life 100000 cycles | ||
Depth 47.7mm | ||
Maximum Operating Temperature +55°C | ||
Minimum Operating Temperature -40°C | ||
Better World Verification Green Premium | ||
Maximum Switching Power DC 84 W | ||
Maximum Switching Power AC 750VA | ||
- COO (Country of Origin):
- CN
RXM Series Miniature Relays without LED
Simple to use- no adjustment required for standard applcations
Easily integrated into current devices & can be adapted for all voltages
Test button and mechanical indicator of relay status
Bases for assembly on DIN rail or with screws to be ordered separately
Schneider Electric RXM4GB1P7
