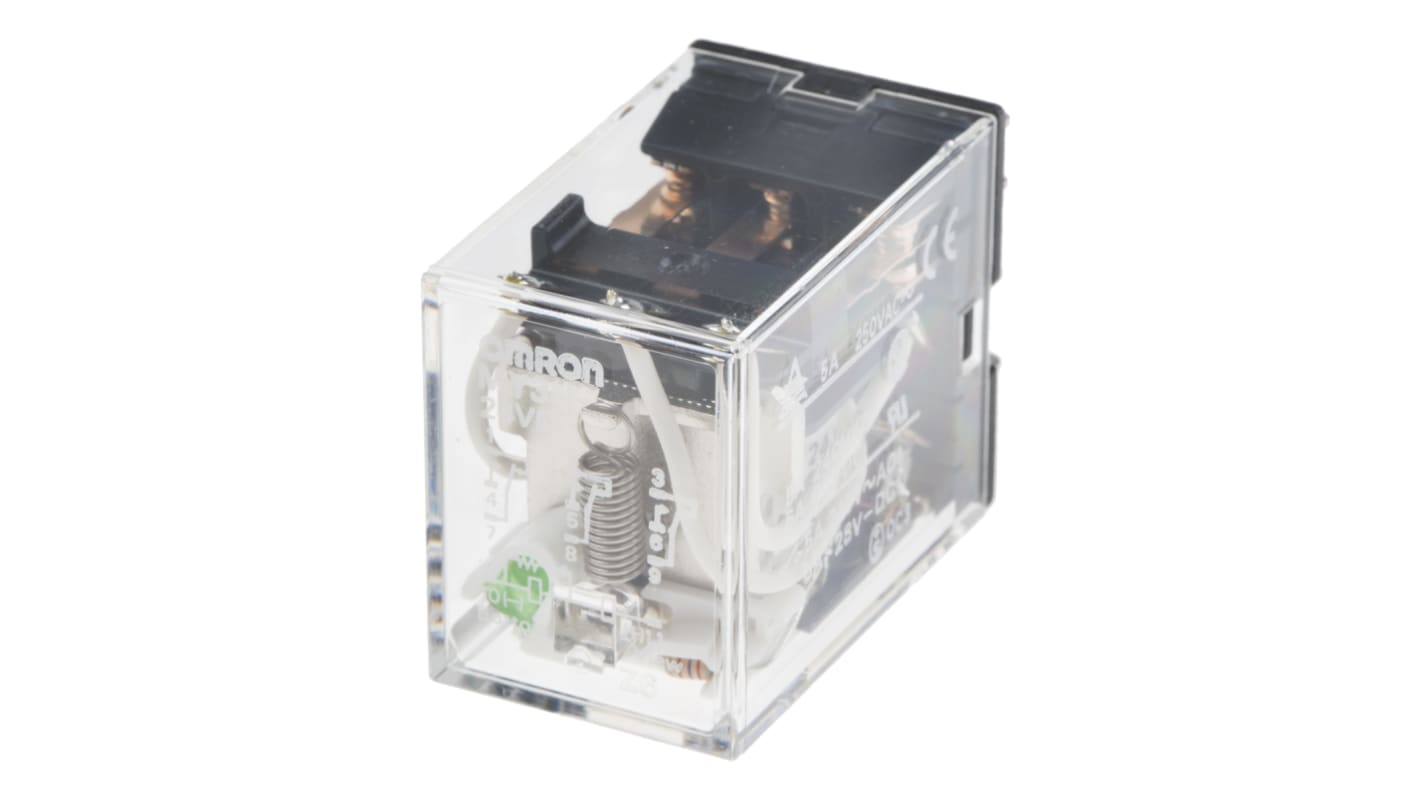

Omron Plug In Power Relay, 24V dc Coil, 5A Switching Current, 3PDT
- RS Stock No.:
- 827-8282
- Mfr. Part No.:
- MY3N 24VDC
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£16.40
(exc. VAT)
£19.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 66 unit(s) ready to ship
- Plus 1 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £16.40 |
5 - 9 | £15.91 |
10 + | £15.24 |
*price indicative
- RS Stock No.:
- 827-8282
- Mfr. Part No.:
- MY3N 24VDC
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Coil Voltage | 24V dc | |
Contact Configuration | 3PDT | |
Mounting Type | Plug In | |
Switching Current | 5A | |
Number of Poles | 3 | |
Latching | No | |
Series | MY3 | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 250V ac | |
Maximum Switching Voltage DC | 125V dc | |
Length | 21.5mm | |
Coil Resistance | 650Ω | |
Coil Power | 900mW | |
Contact Material | Silver | |
Life | 100000000 (Mechanical) Operations, 500000 (Electrical) Operations | |
Height | 28mm | |
Depth | 36mm | |
Isolation Coil To Contact | 2kV ac | |
Maximum Operating Temperature | +60°C | |
Minimum Operating Temperature | -55°C | |
Application | Power | |
Select all | ||
---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Contact Configuration 3PDT | ||
Mounting Type Plug In | ||
Switching Current 5A | ||
Number of Poles 3 | ||
Latching No | ||
Series MY3 | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 125V dc | ||
Length 21.5mm | ||
Coil Resistance 650Ω | ||
Coil Power 900mW | ||
Contact Material Silver | ||
Life 100000000 (Mechanical) Operations, 500000 (Electrical) Operations | ||
Height 28mm | ||
Depth 36mm | ||
Isolation Coil To Contact 2kV ac | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -55°C | ||
Application Power | ||
Omron MY3 Series Power Relay, 24V DC Coil Voltage, 3PDT Contact Configuration - MY3N DC24
This power relay is tailored for flexibility in automation and electrical control systems. It aids in efficient power switching and sequence control, making it a crucial component for various applications in the electrical and mechanical industries. Its consistent performance ensures effective operation under various conditions, making it suitable for professionals seeking dependable solutions.
Features & Benefits
• Contact configuration of 3PDT allows for versatile connections
• Maximum switching voltage of 250Vac supports high-voltage applications
• Operates at a coil voltage of 24Vdc, ideal for low-voltage systems
• Plug-in terminal design simplifies installation and maintenance
• Mechanical life rated at 100 million operations for durability
• Switching current capacity of 5A accommodates heavy loads
• Maximum switching voltage of 250Vac supports high-voltage applications
• Operates at a coil voltage of 24Vdc, ideal for low-voltage systems
• Plug-in terminal design simplifies installation and maintenance
• Mechanical life rated at 100 million operations for durability
• Switching current capacity of 5A accommodates heavy loads
Applications
• Electrical equipment requiring reliable switching
• Circuit design needing high-voltage management
• Integration into safety systems for consistent isolation between coils and contacts
• Machinery for sequential operations and monitoring
• Circuit design needing high-voltage management
• Integration into safety systems for consistent isolation between coils and contacts
• Machinery for sequential operations and monitoring
What is the recommended environment for optimal operation?
It operates effectively within a temperature range of -55°C to +60°C, ensuring stability under diverse conditions.
Can it handle varying electrical loads?
This relay supports a maximum switching power of 2500VA for alternating current and 300W for direct current, accommodating a range of electrical loads.
What considerations should be made for installation?
Avoid exposure to excessive vibrations or shocks, and ensure correct wiring polarity to prevent damage, particularly in DC applications.
What safety approvals does it have?
It complies with several safety standards, ensuring reliability in operational settings and providing assurance for users.
