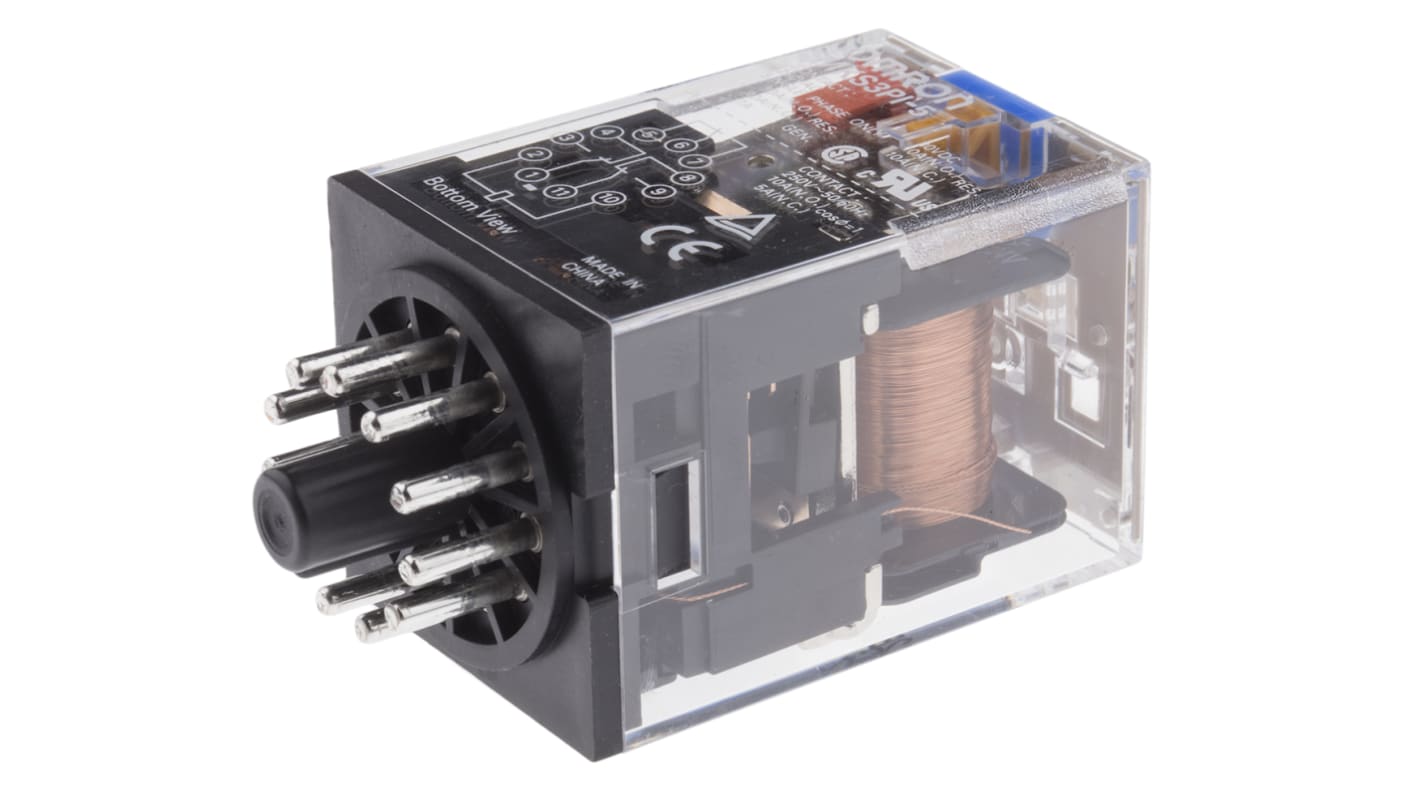

Omron Plug In Power Relay, 24V dc Coil, 10A Switching Current, 3PDT

Bulk discount available

Subtotal (1 unit)*

£11.07

(exc. VAT)

£13.28

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 63 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
  • Plus 150 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£11.07
5 - 9£10.74
10 +£10.29

*price indicative

RS Stock No.:
536-912
Mfr. Part No.:
MKS3PI-5 24VDC
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

24V dc

Contact Configuration

3PDT

Mounting Type

Plug In

Switching Current

10A

Number of Poles

3

Latching

No

Series

MKS

Terminal Type

Plug In

Maximum Switching Voltage AC

250V ac

Maximum Switching Voltage DC

250V dc

Maximum Switching Current DC

10 A

Maximum Switching Current AC

10 A

Length

34.5mm

Coil Resistance

430Ω

Contact Material

Silver Alloy

Maximum Operating Temperature

+60°C

Minimum Operating Temperature

-40°C

Standards Met

CSA, UL

Height

53.3mm

Depth

34.5mm

Maximum Switching Power AC

2.5 kVA

Maximum Switching Power DC

300 W

Application

General Purpose

Dimensions

34.5 x 34.5 x 53.3mm

COO (Country of Origin):
CN

General Purpose Relays, MKS Series


All units have a Mechanical indicator and lockable test button (with nameplate)
Units with a "-5" in the Manufacturer Part Number have non-standard connections, refer to datasheet
Contact rating: 10A at 30Vdc/250Vac
Contact material: AgSnIn
Operating temperature: -40 → +60 °C

Note

When Relays are mounted on the PF083A-E or PF113A-E, the maximum carrying current is 9 A

Approvals

UL, TUV (IEC), CSA

OMRON Power Relay, 34.5 (L) x 34.5 (W) x 53.3mm (H), 300W Maximum Switching Power - MKS Series - MKS3PI-5 DC24


Get your system going with this general-purpose power relay from OMRON. It manages up to three circuits at once, making it ideal for three-phase motors and lighting systems. Rest easy, as it only uses approximately 1.4W of power during operation, making it an energy-efficient addition to your setup. You can lock the operation to maintain the NC or NO state even after you turn off the current to the relay, which further contributes to energy savings. Simply pull the latching lever out while holding down the yellow button with an insulated tool and the contacts stay in place.

Features & Benefits


• Performs reliably in an operating temperature range from -40°C to +60°C
• Light 90g weight doesn't put unnecessary strain on your setup
• Maximum operating frequency of 18,000 cycles per hour suits fast-paced applications

Applications


• Factory automation
• Telecommunication networks
• HVAC systems

How do I mount this device?


It's straightforward to install this device with a track-mounting socket (such as 794-8221 or 353-663). Once it's connected, simply pop the assembly onto a DIN rail and you're good to go.
