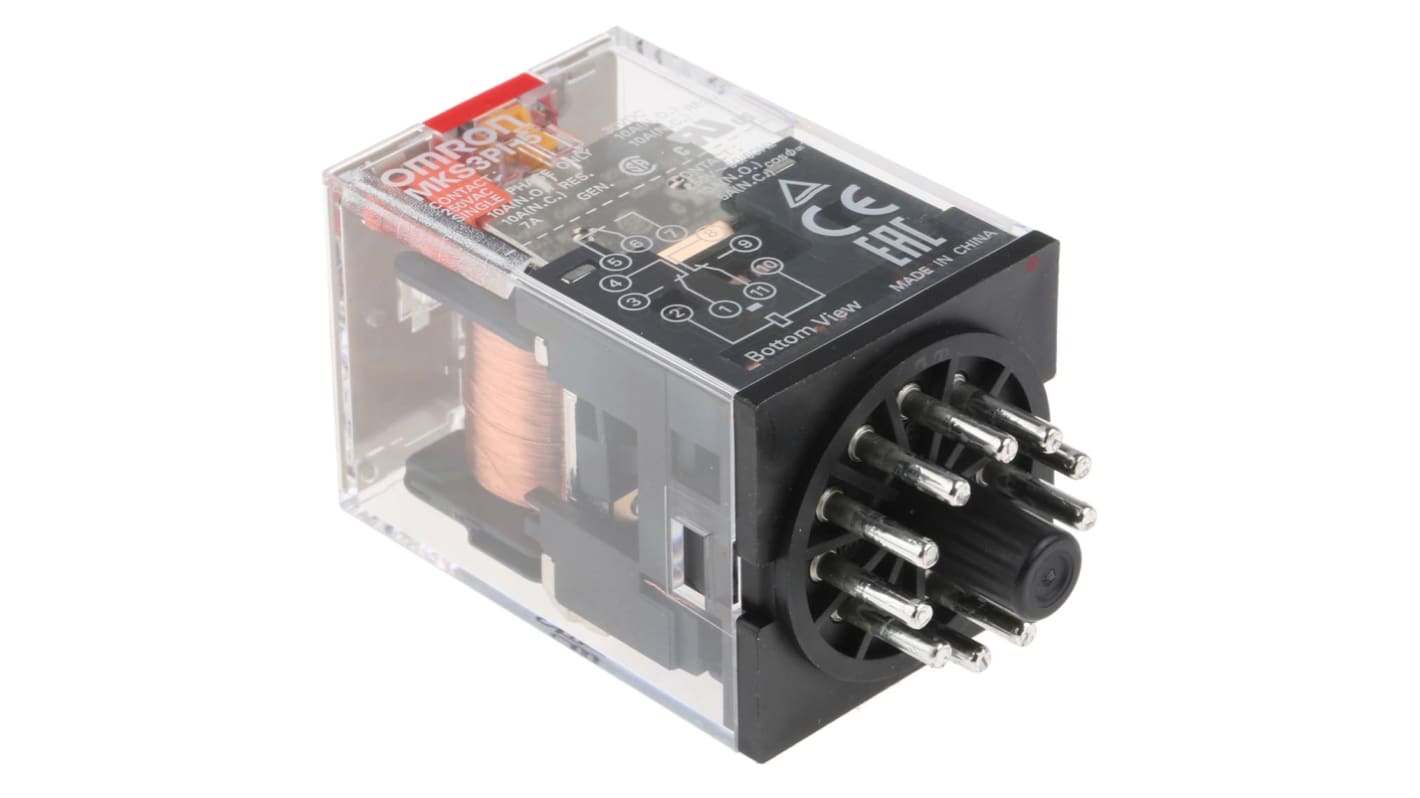

Omron PCB Mount Power Relay, 110V ac Coil, 10A Switching Current, 3PDT

RS Stock No.:: 536-899
Mfr. Part No.:: MKS3PI5AC110
Brand:: Omron

Omron PCB Mount Power Relay, 110V ac Coil, 10A Switching Current, 3PDT

Price Each**

£10.85

(exc. VAT)

£13.02

(inc. VAT)

52 In stock - FREE next working day delivery available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 - 4	£10.85
5 - 9	£10.53
10 +	£10.09

**price indicative

RS Stock No.:: 536-899
Mfr. Part No.:: MKS3PI5AC110
Brand:: Omron

MK-S Datasheet

General Purpose Relays, MKS Series

All units have a Mechanical indicator and lockable test button (with nameplate)
Units with a "-5" in the Manufacturer Part Number have non-standard connections, refer to datasheet
Contact rating: 10A at 30Vdc/250Vac
Contact material: AgSnIn
Operating temperature: -40 → +60 °C

Note

When Relays are mounted on the PF083A-E or PF113A-E, the maximum carrying current is 9 A

Approvals

UL, TUV (IEC), CSA

Omron MKS Series Power Relay, 110VAC Coil Voltage, Silver Alloy Contact - MKS3PI5AC110

This Omron power relay with 110 VAC Coil voltage is a versatile and reliable solution for various applications in automation, electronics, electrical, and mechanical industries. With a contact configuration of 3PDT and silver alloy contacts, this power relay ensures efficient operation and high switching power.

Features & Benefits

• 3PDT contacts configuration for versatile applications
• Silver alloy contacts for enhanced durability
• Coil voltage of 110 VAC for optimal performance
• Maximum switching power of 2.5 kVA (AC) and 300 W (DC)
• PCB mount for easy installation

Applications

• Ideal for general-purpose applications in automation and electronics
• Suitable for relay sequence circuits in electrical systems
• Perfect for applications requiring high switching power capabilities

Can it be used for applications requiring a 3PDT contact configuration?

Yes, the Omron power relay with 110 VAC Coil voltage is designed for applications that require a 3PDT contact configuration.

Will it provide reliable performance in high-power switching applications?

The power relay with silver alloy contacts ensures reliable performance in high-power switching applications, offering efficiency and durability.

Is it easy to install using the PCB mount option?

Yes, the PCB mount design of the power relay facilitates easy installation, making it suitable for various electronic and electrical systems.

Can it handle general-purpose relay sequence circuits effectively?

The Omron power relay is well-suited for relay sequence circuits in both general-purpose and industrial settings, providing efficient operation.

Is this power relay part of the Omron MKS series?

Yes, the power relay with 110 VAC coil voltage and 3PDT contact configuration belongs to the Omron MKS series, known for its high-quality and reliable products.

Attribute	Value
Coil Voltage	110V ac
Contact Configuration	3PDT
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	3
Latching	No
Terminal Type	Plug In
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	250V dc
Length	34.5mm
Coil Resistance	932Ω
Minimum Operating Temperature	-40°C
Series	MKS
Height	53.3mm
Standards Met	cURus
Depth	34.5mm
Maximum Operating Temperature	+60°C
Contact Material	Silver Alloy
Maximum Switching Power DC	300 W
Maximum Switching Power AC	2.5 kVA
Dimensions	34.5 x 34.5 x 53.3mm
Application	General Purpose
