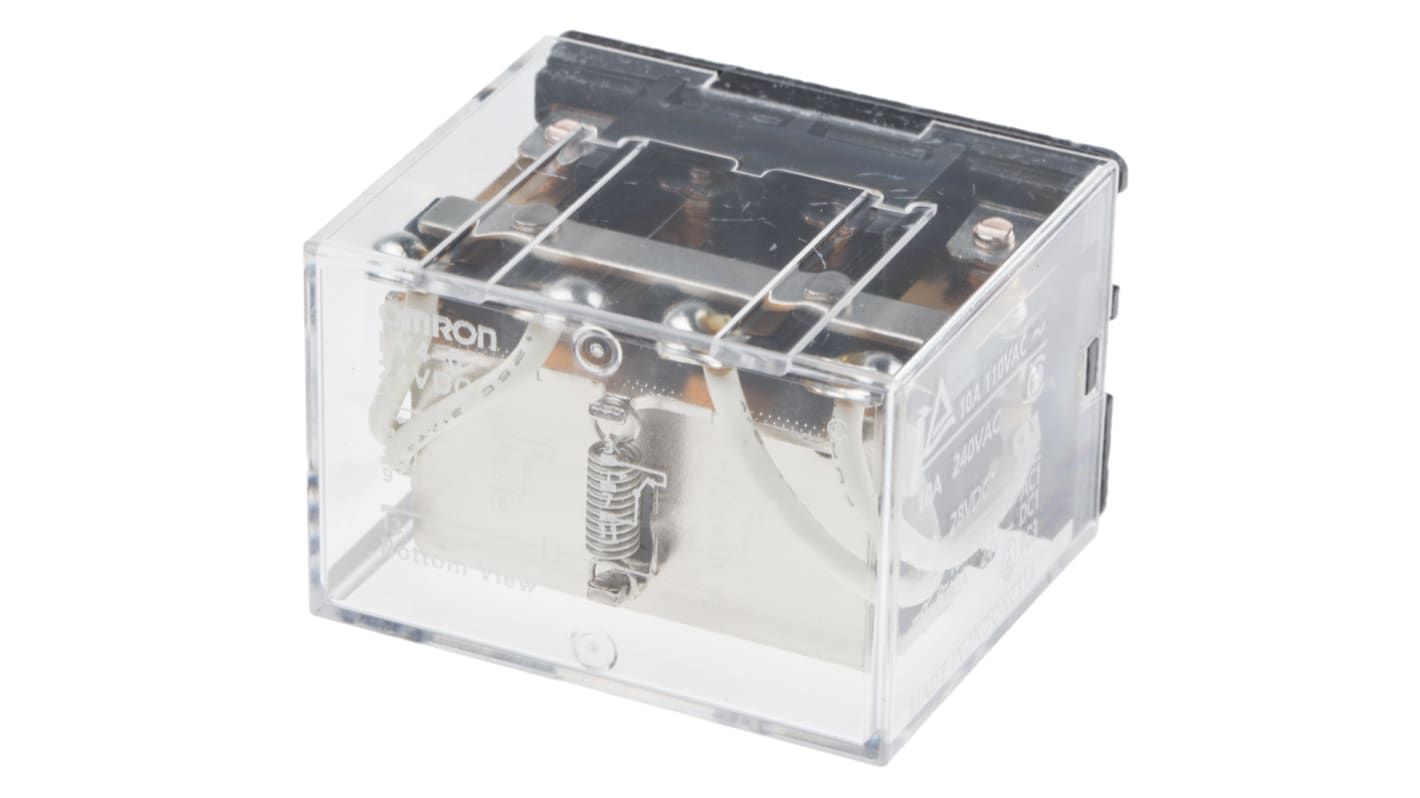

Omron Soldering Power Relay, 24V dc Coil, 10A Switching Current, 4PDT
- RS Stock No.:
- 827-7835
- Mfr. Part No.:
- LY4-0 24VDC
- Brand:
- Omron
Subtotal (1 unit)*
£23.78
(exc. VAT)
£28.54
(inc. VAT)
FREE delivery for orders over £50.00
- 13 unit(s) ready to ship
- Plus 27 unit(s) shipping from 11 November 2025
Units | Per unit |
---|---|
1 - 4 | £23.78 |
5 - 9 | £23.03 |
10 + | £22.08 |
*price indicative
- RS Stock No.:
- 827-7835
- Mfr. Part No.:
- LY4-0 24VDC
- Brand:
- Omron
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Coil Voltage | 24V dc | |
Contact Configuration | 4PDT | |
Mounting Type | Soldering | |
Switching Current | 10A | |
Number of Poles | 4 | |
Series | LY4 | |
Latching | No | |
Terminal Type | PCB Pin | |
Maximum Switching Voltage AC | 250V ac | |
Maximum Switching Voltage DC | 125V dc | |
Length | 21.5mm | |
Coil Resistance | 350Ω | |
Coil Power | 1.5W | |
Contact Material | Silver Alloy | |
Life | 100000000 (Mechanical) Operations, 200000 (Electrical) Operations | |
Depth | 36mm | |
Isolation Coil To Contact | 2kV ac | |
Maximum Operating Temperature | +40°C | |
Minimum Operating Temperature | -25°C | |
Height | 28mm | |
Maximum Switching Power AC | 1.1 kVA | |
Maximum Switching Power DC | 240 W | |
Application | General Purpose, Power | |
Select all | ||
---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Contact Configuration 4PDT | ||
Mounting Type Soldering | ||
Switching Current 10A | ||
Number of Poles 4 | ||
Series LY4 | ||
Latching No | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 125V dc | ||
Length 21.5mm | ||
Coil Resistance 350Ω | ||
Coil Power 1.5W | ||
Contact Material Silver Alloy | ||
Life 100000000 (Mechanical) Operations, 200000 (Electrical) Operations | ||
Depth 36mm | ||
Isolation Coil To Contact 2kV ac | ||
Maximum Operating Temperature +40°C | ||
Minimum Operating Temperature -25°C | ||
Height 28mm | ||
Maximum Switching Power AC 1.1 kVA | ||
Maximum Switching Power DC 240 W | ||
Application General Purpose, Power | ||
Omron LY4 Series Power Relay, 24V DC Coil Voltage, 4PDT Contact Configuration - LY4-0-DC24
Features & Benefits
• Capable of withstanding 100 million mechanical operations for extended service life
• Coil resistance of 350Ω optimises power usage
Applications
• Suitable for power management in industrial equipment
• Used in HVAC system operations
What is the maximum switching voltage for this device?
How does the coil power impact function?
What is the typical lifespan of this relay under normal operating conditions?
