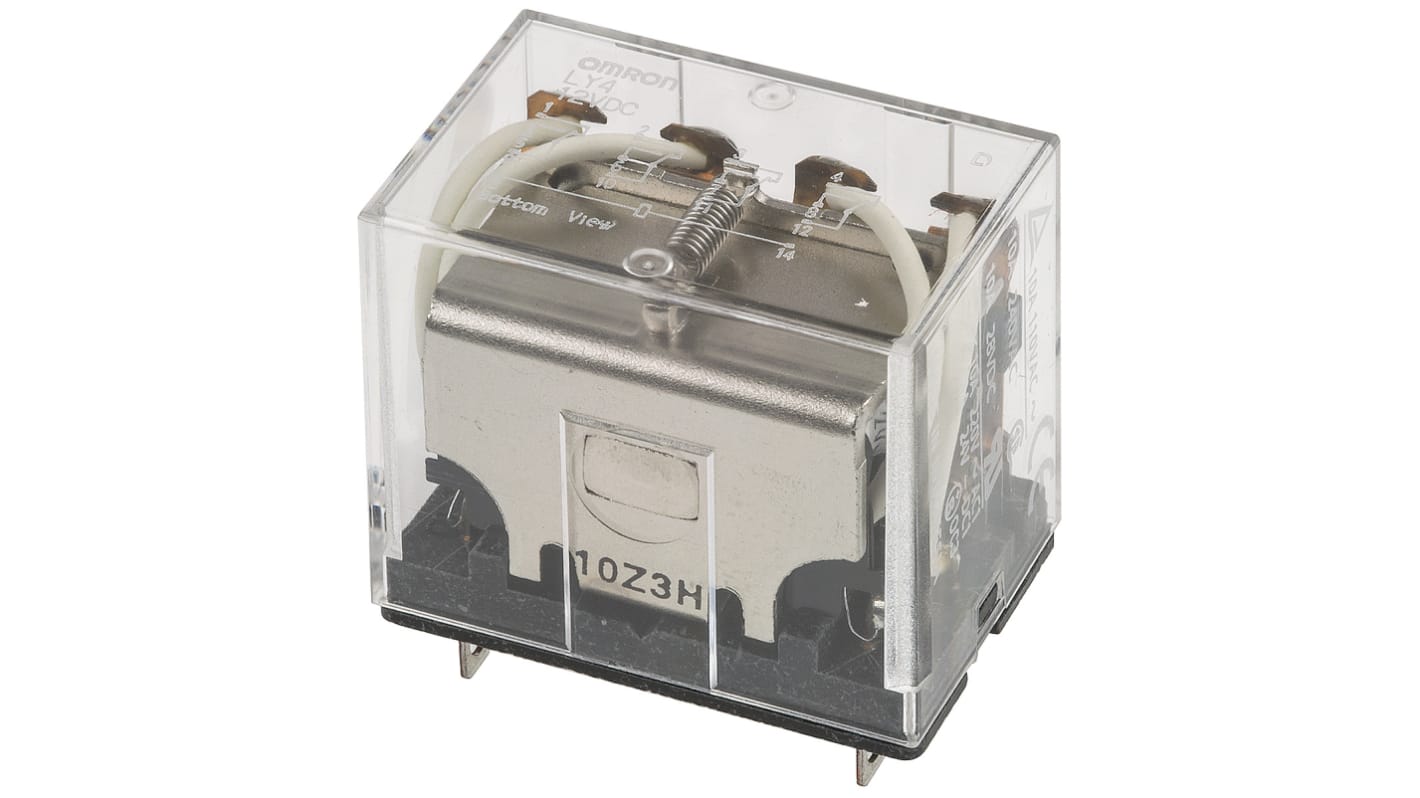

Omron Power Relay, 12V dc Coil, 10A Switching Current, 4PDT
- RS Stock No.:
- 329-834
- Mfr. Part No.:
- LY4 12VDC
- Brand:
- Omron
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£26.26
(exc. VAT)
£31.51
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 8 unit(s) shipping from 11 June 2026
- Plus 41 unit(s) shipping from 18 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £26.26 |
| 5 - 9 | £25.48 |
| 10 + | £24.40 |
*price indicative
- RS Stock No.:
- 329-834
- Mfr. Part No.:
- LY4 12VDC
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Power Relay | |
| Coil Voltage | 12V dc | |
| Contact Configuration | 4PDT | |
| Series | LY4 | |
| Terminal Type | Plug-In | |
| Switching Current | 10A | |
| Switching Power | 240W | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 110V ac | |
| Switching DC Voltage | 24V dc | |
| Maximum Operating Temperature | 40°C | |
| Coil Resistance | 100Ω | |
| Width | 41.5mm | |
| Standards/Approvals | RoHS | |
| Coil Power | 1.5W | |
| Length | 28mm | |
| Height | 42.4mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Power Relay | ||
Coil Voltage 12V dc | ||
Contact Configuration 4PDT | ||
Series LY4 | ||
Terminal Type Plug-In | ||
Switching Current 10A | ||
Switching Power 240W | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 110V ac | ||
Switching DC Voltage 24V dc | ||
Maximum Operating Temperature 40°C | ||
Coil Resistance 100Ω | ||
Width 41.5mm | ||
Standards/Approvals RoHS | ||
Coil Power 1.5W | ||
Length 28mm | ||
Height 42.4mm | ||
Contact Material Silver Alloy | ||
- COO (Country of Origin):
- ID
Omron LY4 Series Power Relay, 12V DC Coil Voltage, 4PDT Contact Configuration - LY4-J DC12
This power relay is intended for effective control of high electrical loads in various automation and industrial settings. Operating with a 12V DC coil voltage, it offers dependable functionality under diverse conditions, making it an important component for professionals in electrical and mechanical domains. Its robust design and adaptable configurations emphasize its role in contemporary control systems.
Features & Benefits
• Four-pole double-throw configuration for intricate circuits
• Plug-in terminal type for easy installation and maintenance
• Ag alloy contact material for enhanced durability
• Maximum switching power of 1.1 kVA for AC applications
Applications
• Used in automation control systems
• Suitable for industrial machinery and equipment
• Ideal for integration with relay sockets in complex systems
What is the operational temperature range for this power relay?
The operational temperature range is from -25°C to +40°C, ensuring consistent performance under varying conditions.
How is the installation process for this relay?
The relay employs a plug-in terminal type, making the installation process straightforward without complex wiring.
What are the benefits of using Ag alloy for the contacts?
Ag alloy enhances conductivity and wear resistance, leading to improved performance and longevity in switching applications.
What is the coil resistance of this relay?
The coil resistance is 100Ω, contributing to its efficient operation within the specified voltage range.
Approvals
UL; CSA; VDE; SEV
