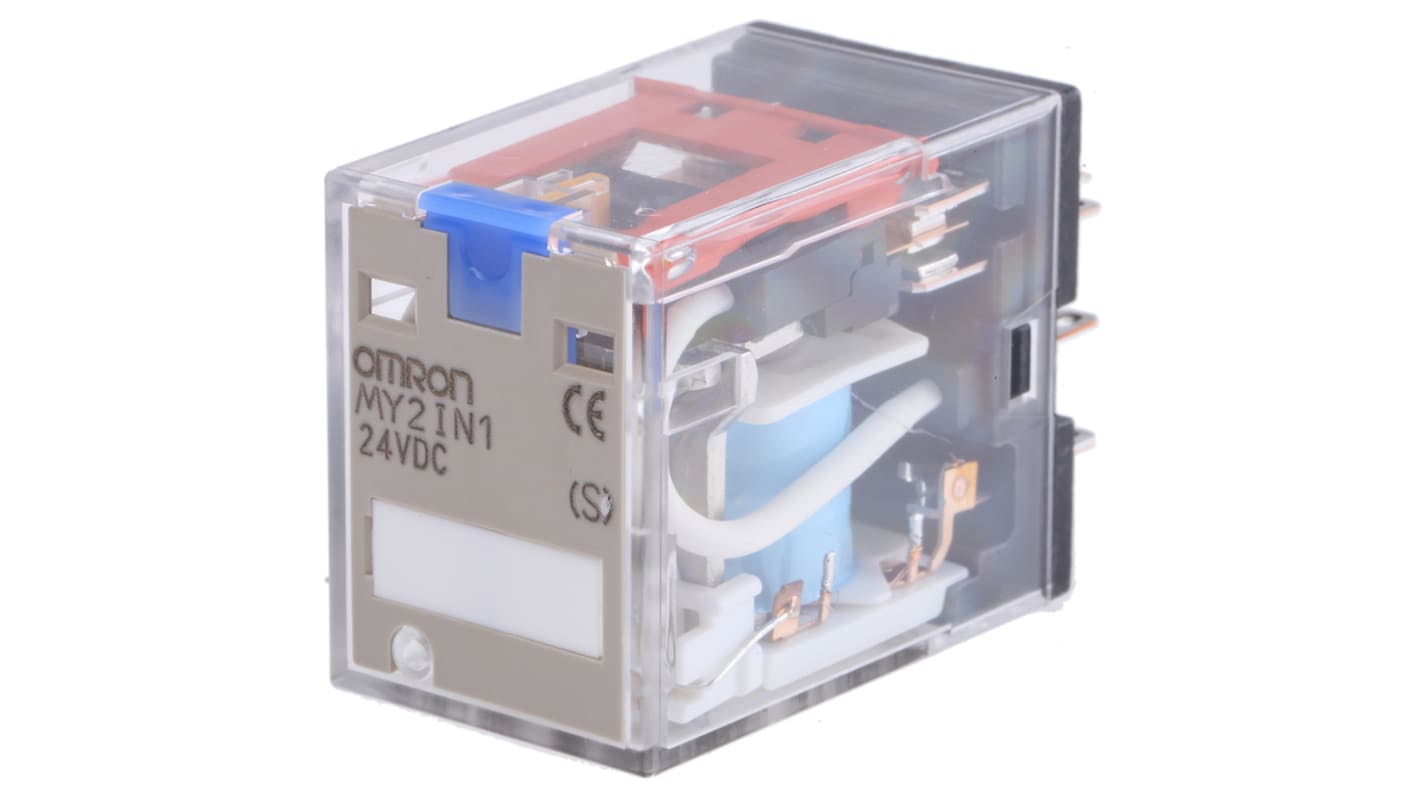

Omron Plug In Latching Power Relay, 24V dc Coil, DPDT

Switch power: 10A version: 1100W, 5A version 660W
Contact resistance: 100mΩ
Isolation coil to contact: 2000Vac
Operating temperature range: -55 to +70°C
Maximum switching voltage: 250Vac; 125Vdc
Contact material: AgNi
Dimensions: H42.4mm x W21.5mm x D28mm

VDE, UL, CSA

This power relay is an essential component for automation and electrical applications. It features a DPDT contact configuration and operates at a coil voltage of 24V dc. Compactly designed with dimensions of 28 x 21.5 x 36mm, it is ideal for socket mounting and facilitates effective performance across various environments.

• Latching design ensures retention of state after activation
• Plug-in terminal type simplifies installation and removal
• Silver contact material enhances conductivity and durability
• Operates effectively in temperatures from -55 °C to +70 °C
• High coil resistance of 636Ω contributes to energy efficiency
• Two poles allow for versatile connection options

• Utilised in automotive control systems for reliable operation
• Ideal for industrial machine automation and control circuits
• Employed in consumer electronics for switching
• Commonly used in safety systems requiring robust relay functionality

The latching capability allows the relay to maintain its on or off state after the control signal is removed, which is particularly beneficial in applications where power conservation is important as it prevents unnecessary energy consumption.

The use of silver for contacts promotes better conductivity and resistance to wear, contributing to longer operational life and reduced chances of faults due to pitting or material degradation over time.

A temperature range of -55 °C to +70 °C enables reliable performance even in extreme environments, making it suitable for outdoor installations where temperature fluctuations can occur frequently.
