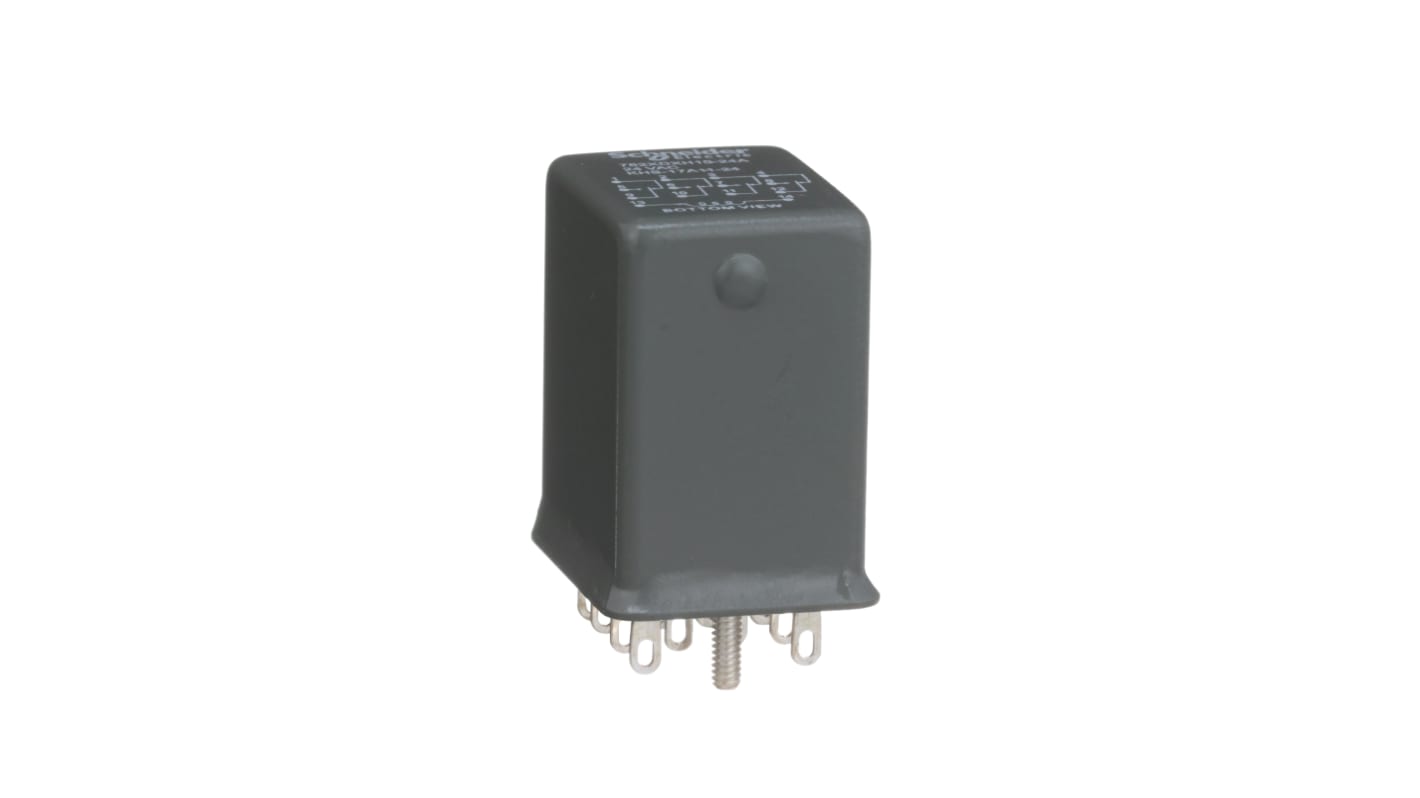

Schneider Electric Plug In Power Relay, 24V dc Coil, 3A Switching Current, 4PDT
- RS Stock No.:
- 814-8359
- Mfr. Part No.:
- 782XDXH10-24D
- Brand:
- Schneider Electric
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£10.29
(exc. VAT)
£12.35
(inc. VAT)
- RS Stock No.:
- 814-8359
- Mfr. Part No.:
- 782XDXH10-24D
- Brand:
- Schneider Electric
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Coil Voltage | 24V dc | |
Contact Configuration | 4PDT | |
Mounting Type | Plug In | |
Switching Current | 3A | |
Number of Poles | 4 | |
Latching | No | |
Terminal Type | Screw | |
Maximum Switching Voltage AC | 300V | |
Length | 29.36mm | |
Coil Resistance | 650Ω | |
Coil Power | 1.2W | |
Life | 100000 Operations | |
Minimum Operating Temperature | -40°C | |
Standards Met | CE, CSA, UL | |
Height | 23.1mm | |
Contact Material | Silver | |
Depth | 32.5mm | |
Maximum Operating Temperature | +70°C | |
Isolation Coil To Contact | 1.24kVrms | |
Maximum Switching Power DC | 500mW | |
Number of Coils | Single | |
Width | 22.8mm | |
Application | Automotive | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Coil Voltage 24V dc | ||
Contact Configuration 4PDT | ||
Mounting Type Plug In | ||
Switching Current 3A | ||
Number of Poles 4 | ||
Latching No | ||
Terminal Type Screw | ||
Maximum Switching Voltage AC 300V | ||
Length 29.36mm | ||
Coil Resistance 650Ω | ||
Coil Power 1.2W | ||
Life 100000 Operations | ||
Minimum Operating Temperature -40°C | ||
Standards Met CE, CSA, UL | ||
Height 23.1mm | ||
Contact Material Silver | ||
Depth 32.5mm | ||
Maximum Operating Temperature +70°C | ||
Isolation Coil To Contact 1.24kVrms | ||
Maximum Switching Power DC 500mW | ||
Number of Coils Single | ||
Width 22.8mm | ||
Application Automotive | ||
