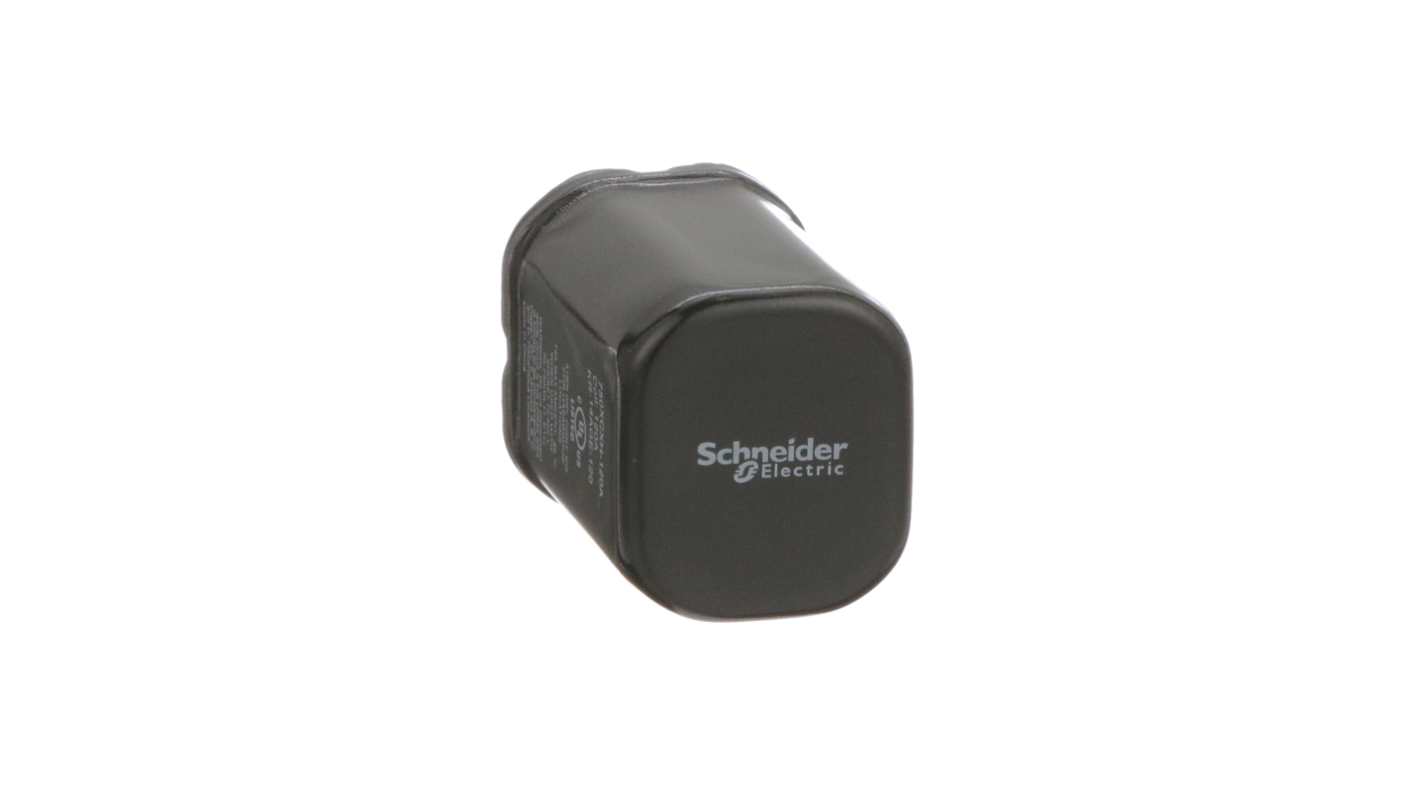

Schneider Electric Plug In Power Relay, 120V ac Coil, 12A Switching Current, 3PDT

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£105.23

(exc. VAT)

£126.28

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • 38 left, ready to ship
  • Plus 1 left, ready to ship from another location
Units
Per unit
1 - 4£105.23
5 - 9£102.06
10 +£97.64

*price indicative

RS Stock No.:
814-8188
Mfr. Part No.:
750XCXH-120A
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Coil Voltage

120V ac

Contact Configuration

3PDT

Mounting Type

Plug In

Switching Current

12A

Number of Poles

3

Latching

No

Terminal Type

Plug In

Maximum Switching Voltage AC

300V

Length

40.9mm

Coil Resistance

1700Ω

Coil Power

2W

Contact Material

Silver Alloy

Minimum Operating Temperature

-40°C

Isolation Coil To Contact

1.5kVrms

Life

100000 Operations

Maximum Operating Temperature

+55°C

Depth

50.3mm

Height

36.6mm

Maximum Switching Power DC

500mW

Application

Automotive

COO (Country of Origin):
MA

750H Series Power Relays


750H series relays are hermetically sealed and are specially designed for use in hazardous locations.

Octal style mounting
12 A maximum switching current ideal for automation and control applications
DPDT & 3PDT contact configuration
Socket mount option
