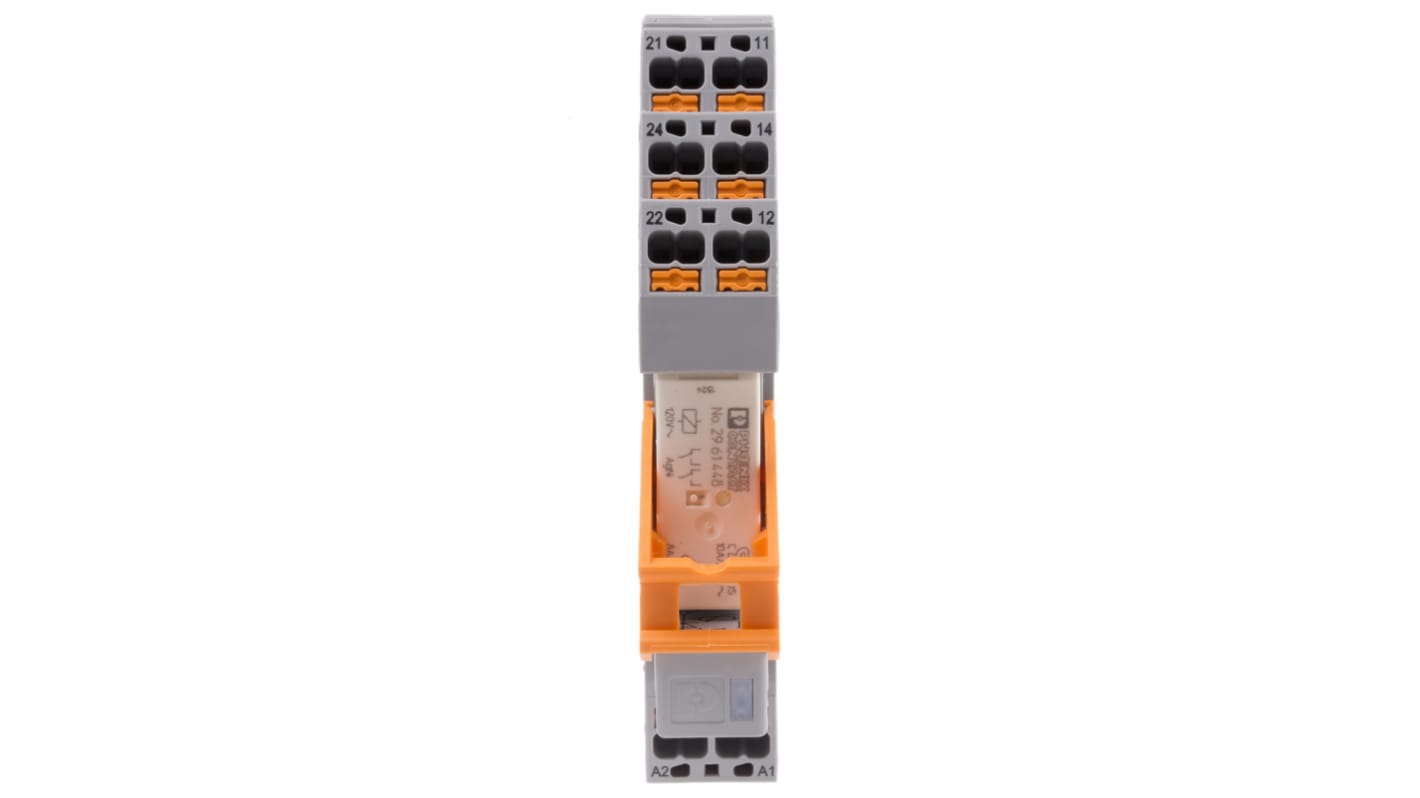

Phoenix Contact DIN Rail Power Relay, 120V ac Coil, 12A Switching Current, DPDT

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£12.10

(exc. VAT)

£14.52

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 25 unit(s) ready to ship
  • Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£12.10
5 - 9£11.74
10 +£11.22

*price indicative

RS Stock No.:
794-3724
Mfr. Part No.:
2903332
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Coil Voltage

120V ac

Product Type

Power Relay

Contact Configuration

DPDT

Mount Type

DIN Rail

Series

RIF-1-RPT-LV-120AC/2X21

Terminal Type

Plug-In

Switching Current

12A

Switching DC Voltage

250V dc

Switching AC Voltage

250V ac

Minimum Operating Temperature

-40°C

Switching Power

192W

Coil Resistance

8.8kΩ

Maximum Operating Temperature

50°C

Width

75mm

Standards/Approvals

DIN, IEC

Length

16mm

Coil Power

192W

Height

93mm

Contact Material

Silver Alloy

Phoenix Contact Power Relay, 8,800Ω Coil Resistance, 12A Switching Current - RIF-1-RPT-LV-120AC/2X21 - 2903332


Need a reliable switching solution for your PCB? Pick this 2-pole power relay from Phoenix Contact to turn your applications on and off. The unit comes fully assembled and includes a base, suppressor and retaining bracket, so you don't have to rummage around for additional parts.

Thanks to the DPDT contact configuration, you can control two circuits with a single actuator. This means a simpler setup with a space-saving footprint. Wires are terminated in a jiffy, thanks to the push-in connections. Plus, for versatility, these terminals handle wire sizes from 26 to 16AWG. Simply clip the relay onto a DIN rail for convenient, tool-free installation.

With its 250V AC and DC switching capability, you can use this device with different power sources to support high-voltage operations. A mechanical service life of 10,000,000 cycles assures you of consistent reliability. Use it for your industrial processes, medical equipment and in research and development facilities.

Features & Benefits


• Wide operating temperature range between -40°C and +50°C for use in challenging conditions

• IEC 62103 compliance indicates the unit is suitable for use in power installations

• IP20-rated component is touch-proof and protected against objects over 12mm for improved electrical safety

• Varistor surge protection to prevent damage and injuries
