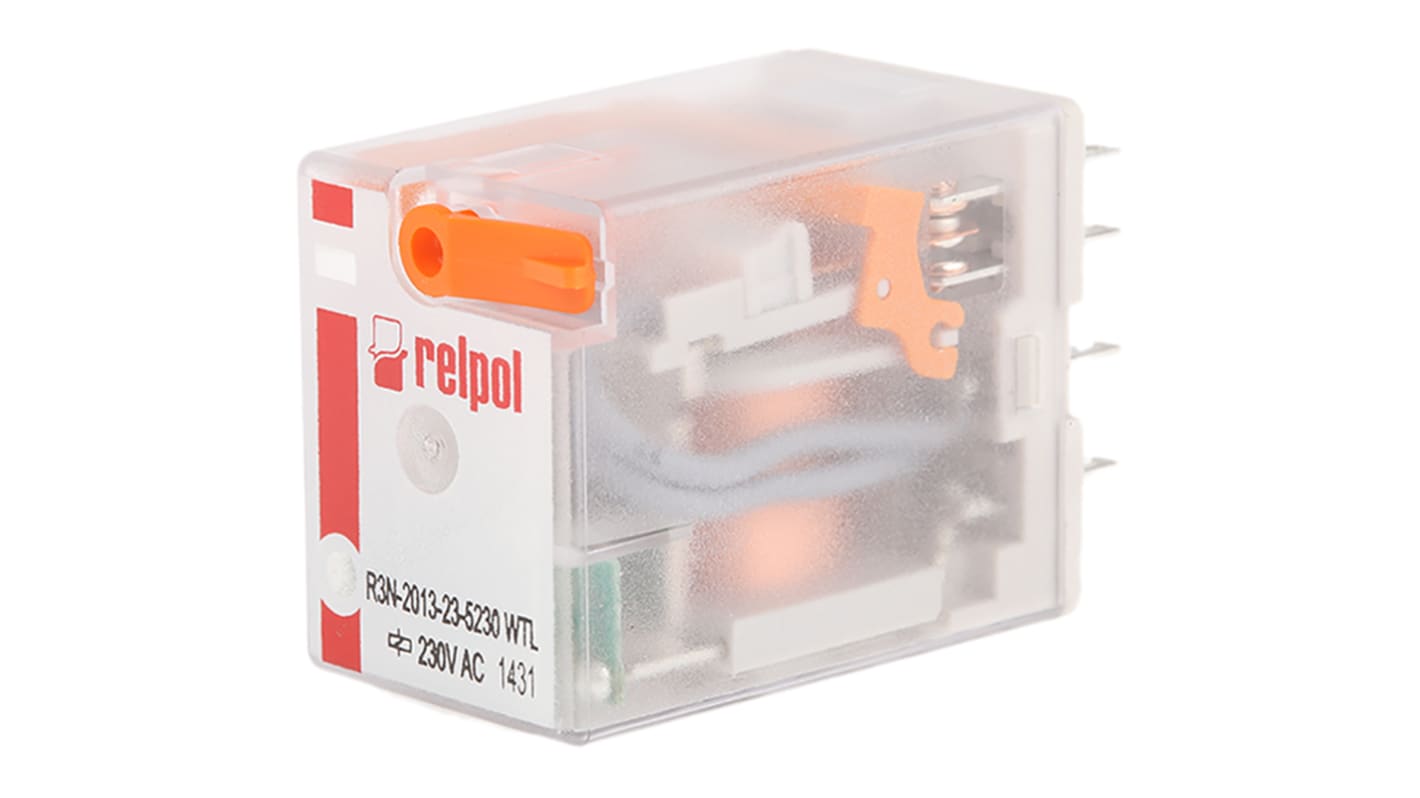

Relpol Plug In Power Relay, 230V ac Coil, 10A Switching Current, 3PDT

RS Stock No.:: 805-2179
Mfr. Part No.:: R3N-2013-23-5230-WTL
Brand:: Relpol

Relpol Plug In Power Relay, 230V ac Coil, 10A Switching Current, 3PDT

88 In stock - FREE next working day delivery available

11 available from Europe for delivery within 2 working day(s).

Price Each

£10.74

(exc. VAT)

£12.89

(inc. VAT)

Units	Per unit
1 - 4	£10.74
5 - 9	£10.38
10 +	£9.96

RS Stock No.:: 805-2179
Mfr. Part No.:: R3N-2013-23-5230-WTL
Brand:: Relpol

Technical Reference

R3N Miniature Industrial Relays Data Sheet

Legislation and Compliance

COO (Country of Origin):: PL

Product Details

Relpol Miniature Industrial Relays

R2N, R3N and R4N series miniature industrial relays for general applications. All relays are designed for mounting in plug-in sockets with WT features as standard (W - mechanical indicator + T - lockable front test button). Accessories include retainer clips and connection strips.

R2N (2 CO), R3N (3 CO) and R4N (4 CO)
Miniature dimensions
Cadmium-free contacts
AC and DC coils
Relays may be provided with test buttons (non latching) and plugs
RoHS compliant

Specifications

Attribute	Value
Coil Voltage	230V ac
Contact Configuration	3PDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	3
Latching	No
Terminal Type	Plug In
Maximum Switching Voltage AC	440V
Maximum Switching Voltage DC	24V dc
Length	35mm
Coil Resistance	16100Ω
Coil Power	1.6W
Contact Material	Silver Alloy
Isolation Coil To Contact	2.5kV ac
Maximum Operating Temperature	+55°C
Life	200000 (Electrical) cycles, 20000000 (Mechanical) cycles
Height	35mm
Depth	54.4mm
Minimum Operating Temperature	-40°C
Series	R3N
Application	General Purpose
