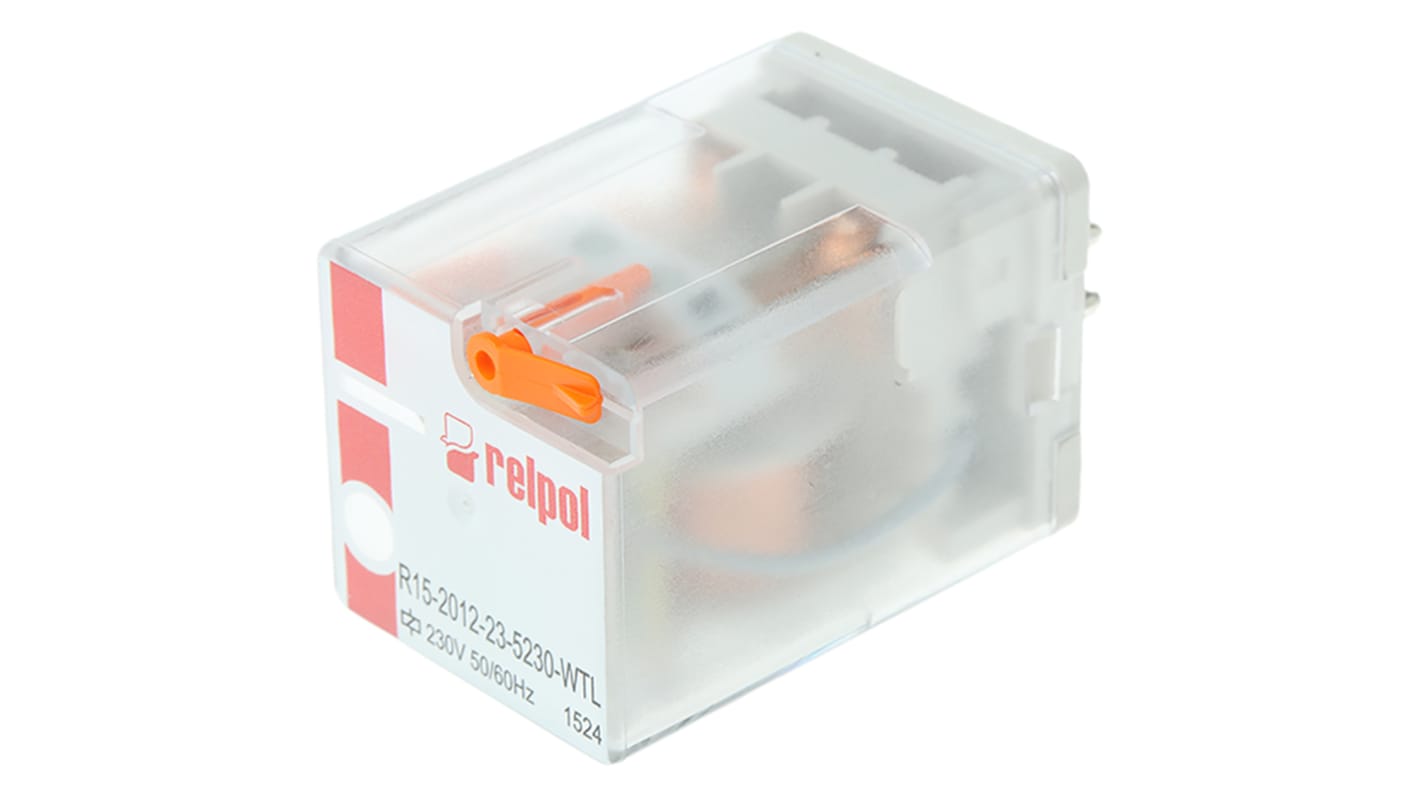

Relpol Plug In Power Relay, 230V ac Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 805-2217
- Mfr. Part No.:
- R15-2012-23-5230-WTL
- Brand:
- Relpol
Bulk discount available
Subtotal (1 unit)*
£21.77
(exc. VAT)
£26.12
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 10 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £21.77 |
| 5 - 9 | £21.11 |
| 10 + | £20.19 |
*price indicative
- RS Stock No.:
- 805-2217
- Mfr. Part No.:
- R15-2012-23-5230-WTL
- Brand:
- Relpol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Relpol | |
| Coil Voltage | 230V ac | |
| Contact Configuration | DPDT | |
| Mounting Type | Plug In | |
| Switching Current | 10A | |
| Number of Poles | 2 | |
| Latching | No | |
| Series | R15 | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage AC | 440V | |
| Maximum Switching Voltage DC | 24V dc | |
| Length | 35mm | |
| Coil Resistance | 7080Ω | |
| Coil Power | 2.8W | |
| Maximum Operating Temperature | +55°C | |
| Isolation Coil To Contact | 2.5kV ac | |
| Depth | 54.4mm | |
| Height | 35mm | |
| Contact Material | Silver Alloy | |
| Life | 200000 (Electrical) cycles, 20000000 (Mechanical) cycles | |
| Minimum Operating Temperature | -40°C | |
| Application | General Purpose | |
Select all | ||
|---|---|---|
Brand Relpol | ||
Coil Voltage 230V ac | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 10A | ||
Number of Poles 2 | ||
Latching No | ||
Series R15 | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 440V | ||
Maximum Switching Voltage DC 24V dc | ||
Length 35mm | ||
Coil Resistance 7080Ω | ||
Coil Power 2.8W | ||
Maximum Operating Temperature +55°C | ||
Isolation Coil To Contact 2.5kV ac | ||
Depth 54.4mm | ||
Height 35mm | ||
Contact Material Silver Alloy | ||
Life 200000 (Electrical) cycles, 20000000 (Mechanical) cycles | ||
Minimum Operating Temperature -40°C | ||
Application General Purpose | ||
- COO (Country of Origin):
- PL
Relpol Miniature Industrial Relays
R2N, R3N and R4N series miniature industrial relays for general applications. All relays are designed for mounting in plug-in sockets with WT features as standard (W - mechanical indicator + T - lockable front test button). Accessories include retainer clips and connection strips.
R2N (2 CO), R3N (3 CO) and R4N (4 CO)
Miniature dimensions
Cadmium-free contacts
AC and DC coils
Relays may be provided with test buttons (non latching) and plugs
RoHS compliant
Miniature dimensions
Cadmium-free contacts
AC and DC coils
Relays may be provided with test buttons (non latching) and plugs
RoHS compliant
