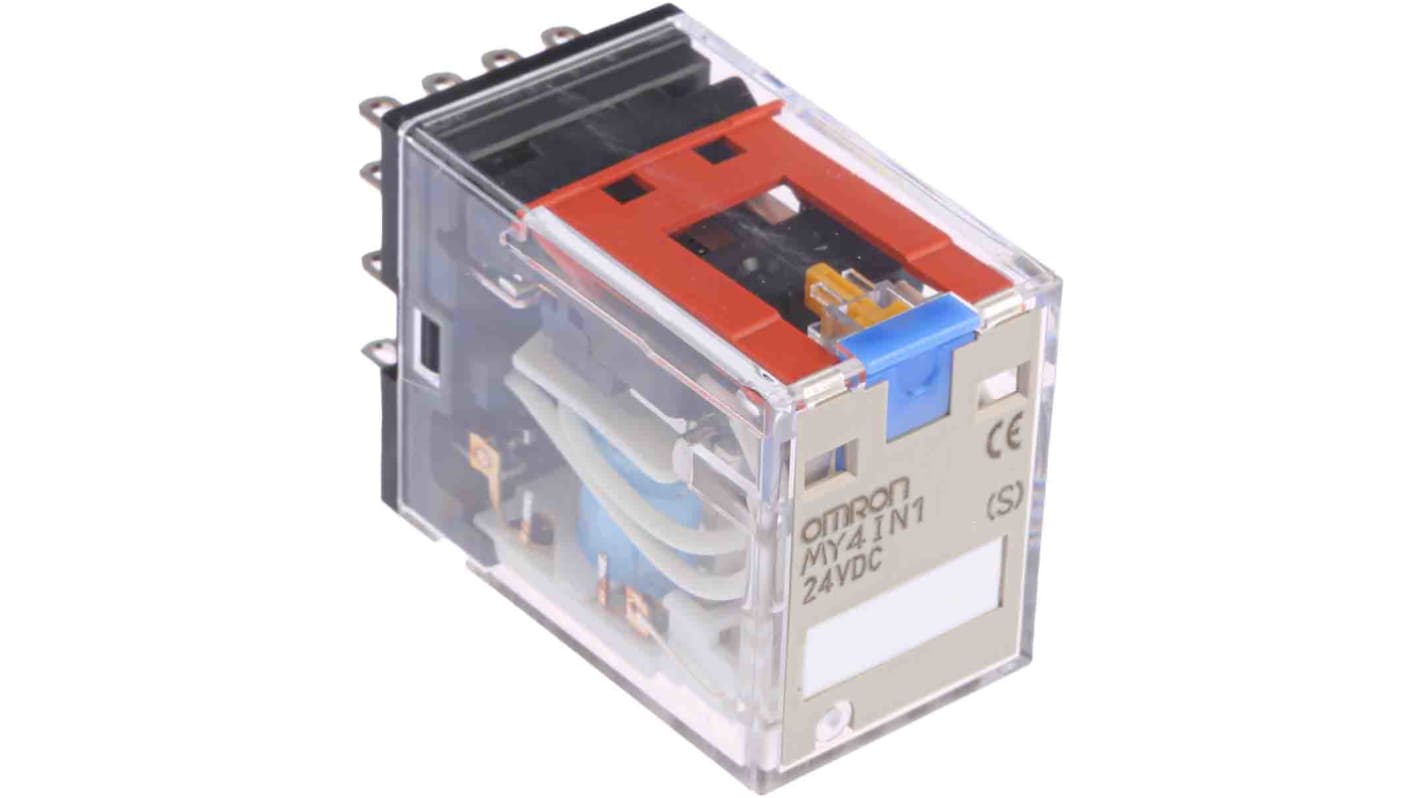

Omron Plug In Power Relay, 24V dc Coil, 5A Switching Current, 4PDT

RS Stock No.:: 794-8145
Mfr. Part No.:: MY4IN1 24VDC (S)
Brand:: Omron

Omron Plug In Power Relay, 24V dc Coil, 5A Switching Current, 4PDT

Bulk discount available

Subtotal (1 unit)*

£10.45

(exc. VAT)

£12.54

(inc. VAT)

FREE delivery for orders over £50.00

Limited stock

870 left, ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£10.45
5 - 9	£10.13
10 +	£9.68

*price indicative

RS Stock No.:: 794-8145
Mfr. Part No.:: MY4IN1 24VDC (S)
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	24V dc
	Contact Configuration	4PDT
	Mounting Type	Plug In
	Switching Current	5A
	Number of Poles	4
	Series	MY4
	Latching	No
	Terminal Type	Plug In
	Maximum Switching Voltage AC	250V ac
	Maximum Switching Voltage DC	125V dc
	Length	36mm
	Coil Resistance	636Ω
	Coil Power	900mW
	Height	28mm
	Life	100000000 (DC Mechanical) Operations, 200000 (Electrical) Operations, 50000000 (AC Mechanical) Operations
	Depth	21.5mm
	Isolation Coil To Contact	2kV ac
	Maximum Operating Temperature	+70°C
	Standards Met	CE
	Minimum Operating Temperature	-55°C
	Maximum Switching Power AC	1.25 kVA
	Maximum Switching Power DC	150 W
	Application	Power, Sequence Control

	Select all
	Brand Omron
	Coil Voltage 24V dc
	Contact Configuration 4PDT
	Mounting Type Plug In
	Switching Current 5A
	Number of Poles 4
	Series MY4
	Latching No
	Terminal Type Plug In
	Maximum Switching Voltage AC 250V ac
	Maximum Switching Voltage DC 125V dc
	Length 36mm
	Coil Resistance 636Ω
	Coil Power 900mW
	Height 28mm
	Life 100000000 (DC Mechanical) Operations, 200000 (Electrical) Operations, 50000000 (AC Mechanical) Operations
	Depth 21.5mm
	Isolation Coil To Contact 2kV ac
	Maximum Operating Temperature +70°C
	Standards Met CE
	Minimum Operating Temperature -55°C
	Maximum Switching Power AC 1.25 kVA
	Maximum Switching Power DC 150 W
	Application Power, Sequence Control

MY(S) Datasheet

COO (Country of Origin):: JP

Omron MY4 Series Power Relay, 4PDT Contact Configuration, 24V DC Coil Voltage - MY4IN1 DC24(S)

This power relay is designed for efficient control applications, particularly in automation and sequence control environments. Its ability to manage different voltage types makes it a versatile component for users across the electronics, electrical, and mechanical sectors. The relay features a robust construction and high switching capabilities, ensuring reliable operation in various conditions.

Features & Benefits

• Operates on a coil voltage of 24V DC for versatile applications
• Supports a switching current of 5A for effective power management
• 4PDT configuration enables complex control with multiple circuits
• Plug-in design simplifies installation and maintenance
• High voltage capability supports up to 250V AC for diverse applications
• Significant isolation between coil and contact enhances safety

Applications

• Employed in automation systems for precise control functions
• Suitable for powering sequence control circuits
• Ideal for interfacing with machinery requiring reliable operation
• Commonly used in industrial control panels for enhanced functionality
• Utilised in various electrical projects needing a compact relay solution

What type of environments is suitable for use?

It operates effectively within temperatures from -55°C to +70°C, making it appropriate for a wide range of settings.

Can this be used for both AC and DC circuits?

Yes, it is designed to handle both AC and DC power applications, offering flexibility in usage.

How is installation carried out?

With a plug-in design, it allows for straightforward connection to sockets without specialised tools.

What is the expected life expectancy for usage?

It provides a mechanical life of up to 100 million operations, ensuring durability in demanding functions.
