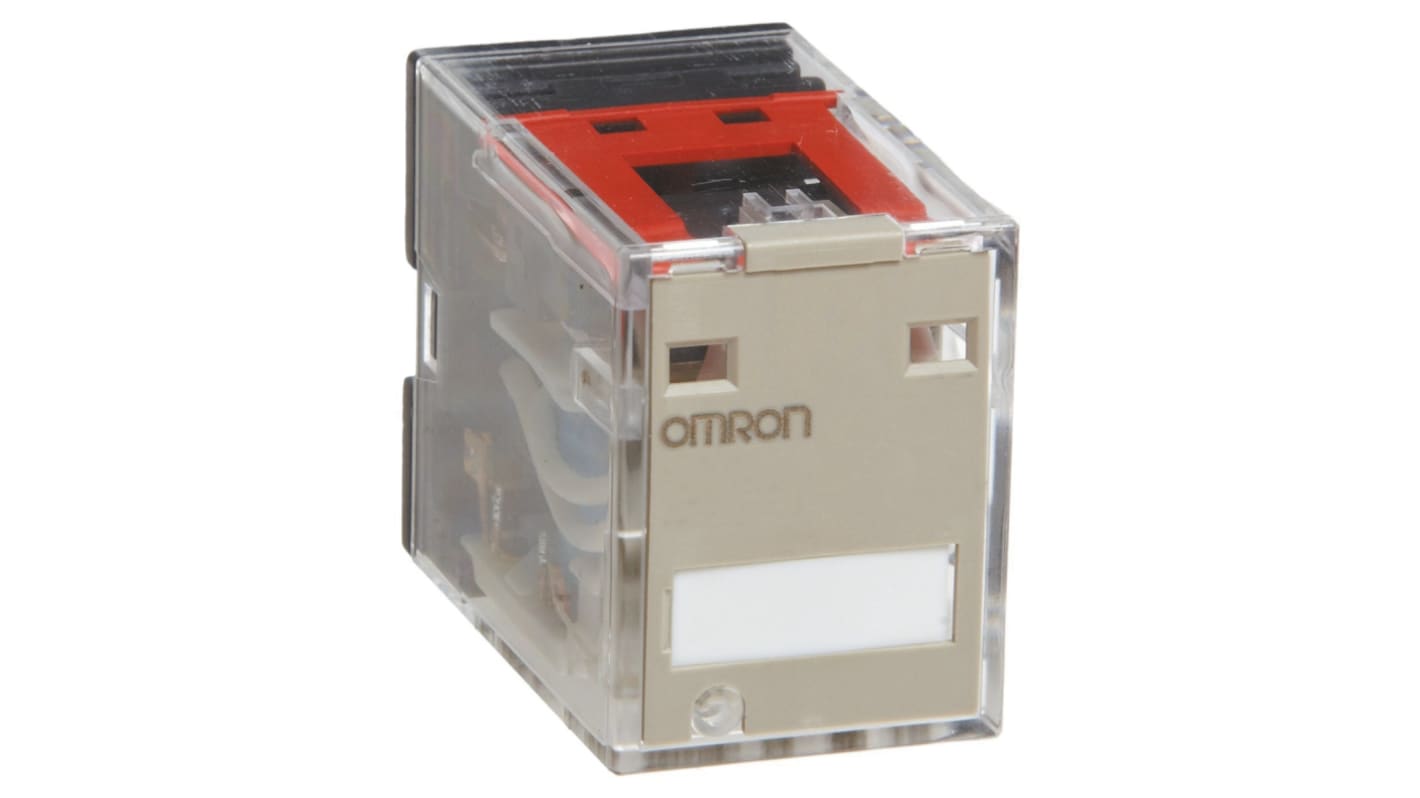

Omron Plug In Power Relay, 120V ac Coil, 5A Switching Current, 4PDT
- RS Stock No.:
- 827-8383
- Mfr. Part No.:
- MY4ZN 110/120VAC (S)
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£18.57
(exc. VAT)
£22.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 50 unit(s) shipping from 30 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £18.57 |
| 5 - 9 | £18.01 |
| 10 + | £17.24 |
*price indicative
- RS Stock No.:
- 827-8383
- Mfr. Part No.:
- MY4ZN 110/120VAC (S)
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 120V ac | |
| Contact Configuration | 4PDT | |
| Mounting Type | Plug In | |
| Switching Current | 5A | |
| Number of Poles | 4 | |
| Series | MY4 | |
| Latching | No | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 125V dc | |
| Length | 21.5mm | |
| Coil Resistance | 4430Ω | |
| Coil Power | 1.1W | |
| Height | 28mm | |
| Minimum Operating Temperature | -55°C | |
| Life | 500000 (Electrical) Operations, 50000000 (Mechanical) Operations | |
| Maximum Operating Temperature | +70°C | |
| Isolation Coil To Contact | 2kV ac | |
| Depth | 36mm | |
| Contact Material | Gold Plated | |
| Maximum Switching Power DC | 150 W | |
| Maximum Switching Power AC | 1.25 kVA | |
| Application | General Purpose | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 120V ac | ||
Contact Configuration 4PDT | ||
Mounting Type Plug In | ||
Switching Current 5A | ||
Number of Poles 4 | ||
Series MY4 | ||
Latching No | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 125V dc | ||
Length 21.5mm | ||
Coil Resistance 4430Ω | ||
Coil Power 1.1W | ||
Height 28mm | ||
Minimum Operating Temperature -55°C | ||
Life 500000 (Electrical) Operations, 50000000 (Mechanical) Operations | ||
Maximum Operating Temperature +70°C | ||
Isolation Coil To Contact 2kV ac | ||
Depth 36mm | ||
Contact Material Gold Plated | ||
Maximum Switching Power DC 150 W | ||
Maximum Switching Power AC 1.25 kVA | ||
Application General Purpose | ||
MY4ZN
