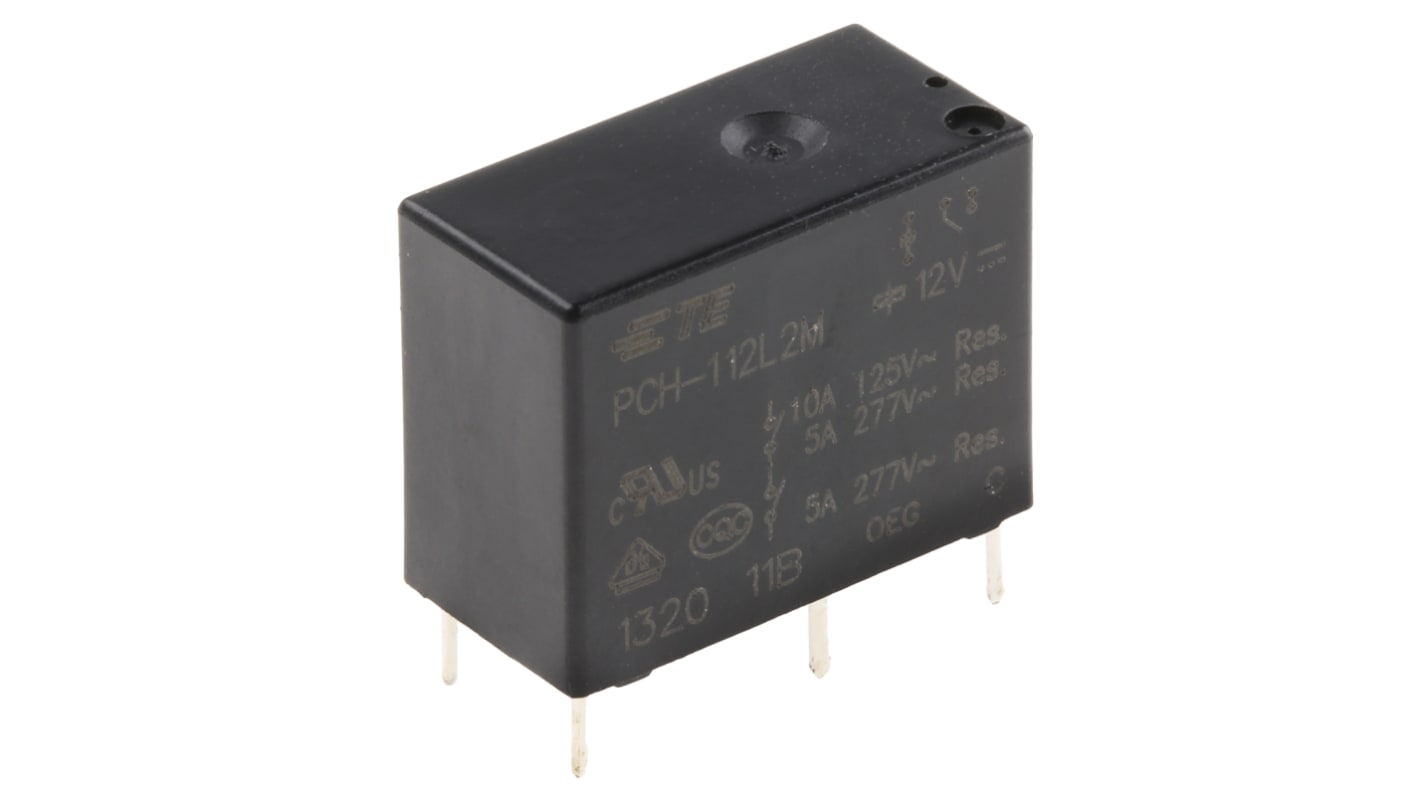

TE Connectivity PCB Mount Power Relay, 12V dc Coil, 5A Switching Current, SPST
- RS Stock No.:
- 756-1300
- Mfr. Part No.:
- PCH-112L2M,000
- Brand:
- TE Connectivity
Discontinued
- RS Stock No.:
- 756-1300
- Mfr. Part No.:
- PCH-112L2M,000
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 5A | |
| Number of Poles | 1 | |
| Series | PCH | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 277V | |
| Maximum Switching Voltage DC | 30V dc | |
| Length | 20mm | |
| Coil Resistance | 720Ω | |
| Coil Power | 200mW | |
| Minimum Operating Temperature | -30°C | |
| Isolation Coil To Contact | 4kVrms | |
| Height | 15.2mm | |
| Contact Material | Silver Alloy | |
| Depth | 10mm | |
| Maximum Operating Temperature | +70°C | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 5A | ||
Number of Poles 1 | ||
Series PCH | ||
Latching No | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 277V | ||
Maximum Switching Voltage DC 30V dc | ||
Length 20mm | ||
Coil Resistance 720Ω | ||
Coil Power 200mW | ||
Minimum Operating Temperature -30°C | ||
Isolation Coil To Contact 4kVrms | ||
Height 15.2mm | ||
Contact Material Silver Alloy | ||
Depth 10mm | ||
Maximum Operating Temperature +70°C | ||
TE Connectivity Miniature PCB Relay - PCH Series
PCH series miniature PCB through hole mount relays with SPST and SPDT AgSnO2 contacts. These miniature PCB through hole mount relays have washtight, sealed plastic covers apart from stock numbers 533-0867, 533-0867 and 533-0873 which have flux proof vented covers. PCB relays with SPST contacts have a senstive 200mW coil. Typical applications for these PCH series PCB relays include HVAC, refrigerators and microwave ovens.
High surge voltage capacity; 8000V (1.2/50μs)
Ambient temperature; -30 to +85°C
Contact rating: 5A @ 250Vac (IEC 61810), 10 A @ 125 Vac (UL 508)
Contact material; AgSnO
Dimensions (mm); H 15.2, W 9.9, D19.8
Ambient temperature; -30 to +85°C
Contact rating: 5A @ 250Vac (IEC 61810), 10 A @ 125 Vac (UL 508)
Contact material; AgSnO
Dimensions (mm); H 15.2, W 9.9, D19.8
Approvals
UL; CSA; VDE
