MPN

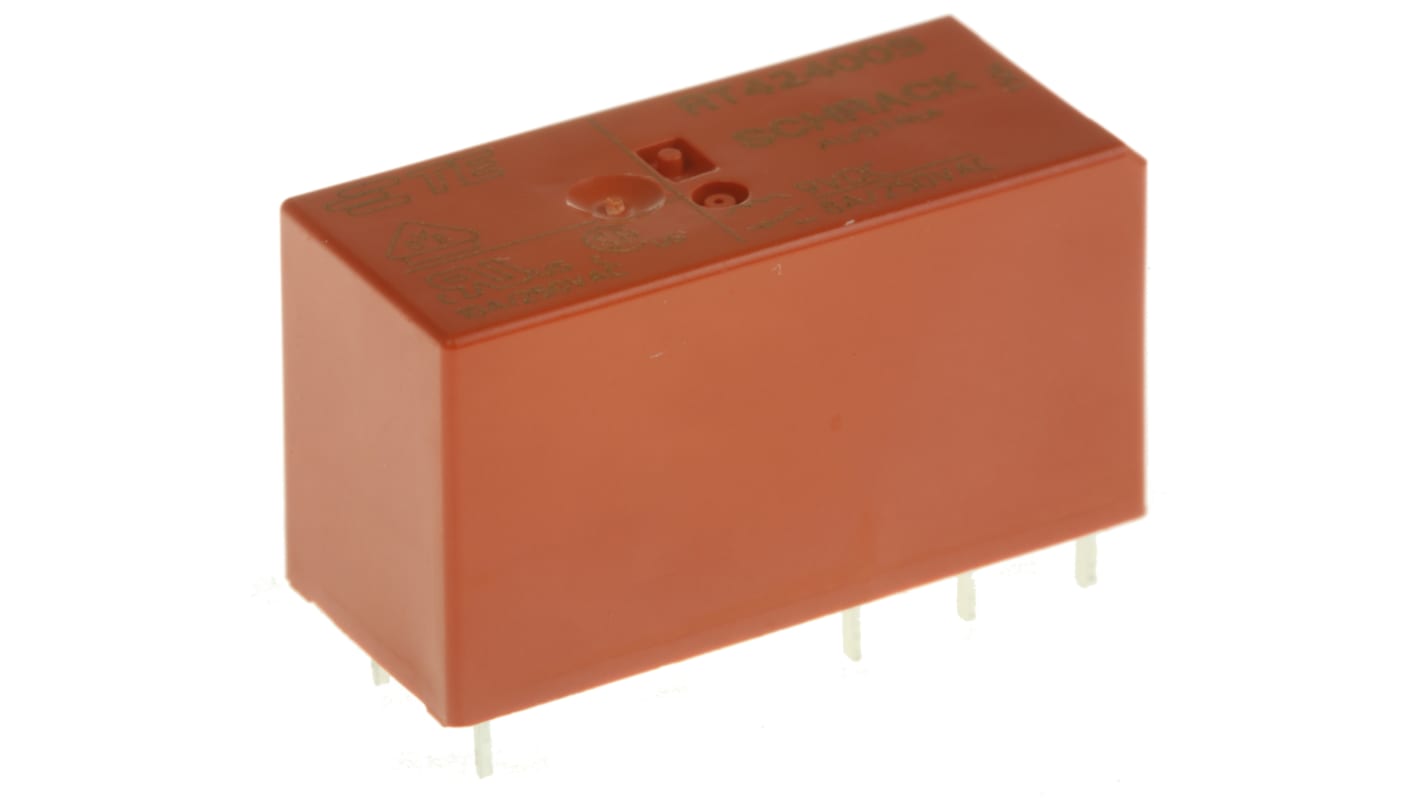

TE Connectivity PCB Power Relay, 9V dc Coil, 8A Switching Current, DPDT

RS Stock No.:: 718-1724
Distrelec Article No.:: 301-67-825
Mfr. Part No.:: RT424009
Brand:: TE Connectivity

TE Connectivity PCB Power Relay, 9V dc Coil, 8A Switching Current, DPDT

Subtotal (1 unit)*

£5.37

(exc. VAT)

£6.44

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

110 unit(s) ready to ship
Plus 1,832 unit(s) shipping from 21 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£5.37

*price indicative

RS Stock No.:: 718-1724
Distrelec Article No.:: 301-67-825
Mfr. Part No.:: RT424009
Brand:: TE Connectivity

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TE Connectivity
	Coil Voltage	9V dc
	Product Type	Power Relay
	Contact Configuration	DPDT
	Mount Type	PCB
	Series	RT2
	Terminal Type	Solder
	Switching Current	8A
	Minimum Operating Temperature	-40°C
	Switching AC Voltage	400V ac
	Maximum Operating Temperature	85°C
	Coil Resistance	200Ω
	Standards/Approvals	CQC, REACH, RoHS, UL, VDE
	Width	12.7mm
	Coil Power	400mW
	Height	15.7mm
	Length	29mm
	Contact Material	Silver Alloy

	Select all
	Brand TE Connectivity
	Coil Voltage 9V dc
	Product Type Power Relay
	Contact Configuration DPDT
	Mount Type PCB
	Series RT2
	Terminal Type Solder
	Switching Current 8A
	Minimum Operating Temperature -40°C
	Switching AC Voltage 400V ac
	Maximum Operating Temperature 85°C
	Coil Resistance 200Ω
	Standards/Approvals CQC, REACH, RoHS, UL, VDE
	Width 12.7mm
	Coil Power 400mW
	Height 15.7mm
	Length 29mm
	Contact Material Silver Alloy

Datasheet

TE Connectivity RT1 and RT2 Series PCB Power Relays

RT Series 1 and Series 2 through hole mounting PCB power relays with a variety of contact configurations and Coil voltages.

RT1 PCB have 3.5mm pinning and are flux proof

RT2 PCB have 5mm pinning and are flux proof

RT3 PCB have 5mm pinning and are flux proor

RTB PCB have 3.5mm pinning and are wash tight

RTD PCB have 5mm pinning and are wash tight

RT4 PCB have 5mm pinning and are flux proof

RTE PCB have 5mm pinning and are wash tight

Creepage and Clearance 10//10 mm

Applications: interface, automation, domestic applications, security lighting, heating systems

Note

Part Number (RT...F) F= Coil insulation system according UL class F

Approvals

UL, CSA, VDE
