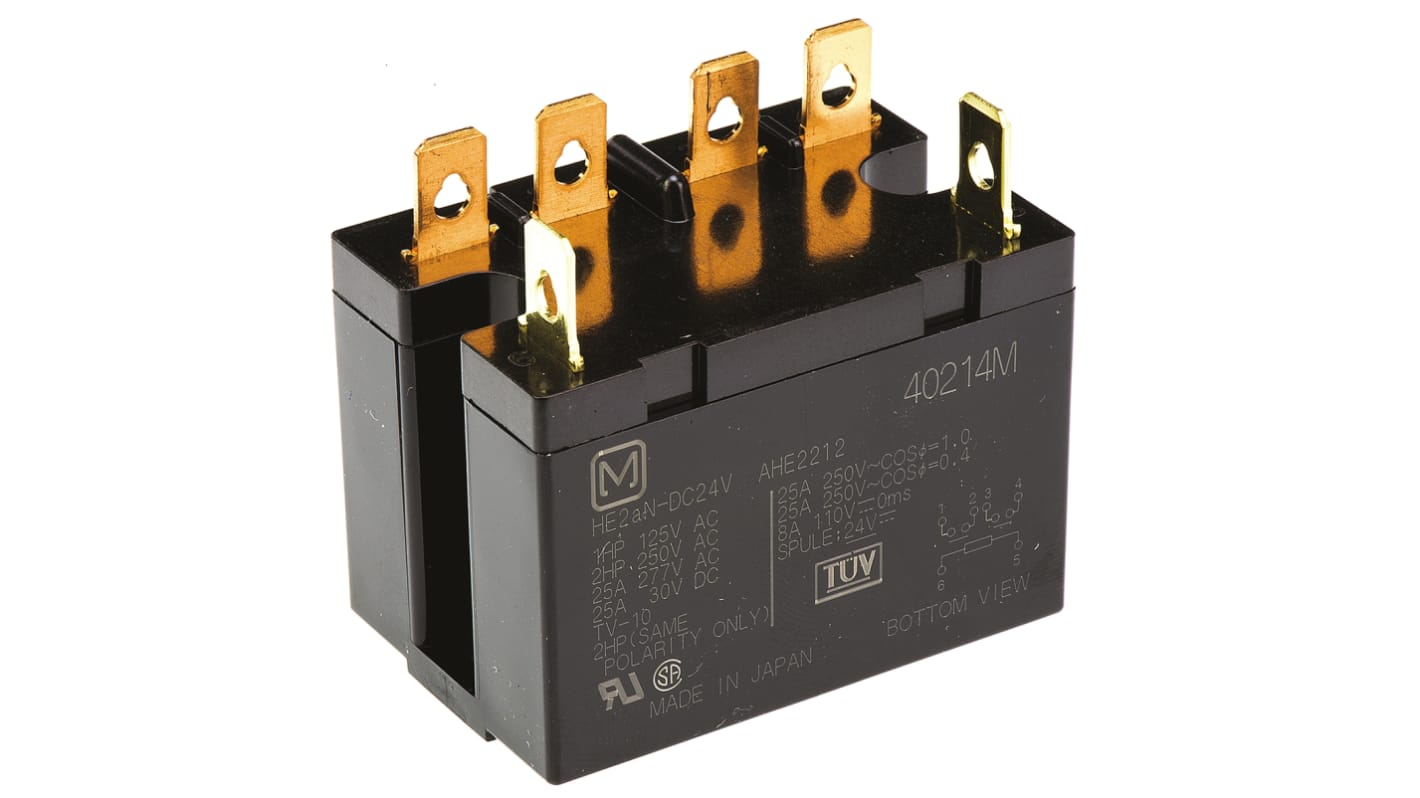

Panasonic PCB Mount Non-Latching Relay, 24V dc Coil, 30A Switching Current, DPST
- RS Stock No.:
- 699-5689
- Mfr. Part No.:
- HE2AN24
- Brand:
- Panasonic
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£24.96
(exc. VAT)
£29.95
(inc. VAT)
- RS Stock No.:
- 699-5689
- Mfr. Part No.:
- HE2AN24
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 30A | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 277V ac | |
| Maximum Switching Voltage DC | 30V dc | |
| Length | 50mm | |
| Coil Resistance | 300 Ω | |
| Coil Power | 1.92W | |
| Isolation Coil To Contact | 5kV rms | |
| Contact Material | Silver Alloy | |
| Height | 35mm | |
| Life | 100000 (Electrical) cycles, 10000000 (AC Mechanical) cycles, 20000000 (DC Mechanical) cycles | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | +55°C | |
| Depth | 33mm | |
| Maximum Switching Power AC | 6.925 kVA | |
| Application | Power | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Coil Voltage 24V dc | ||
Contact Configuration DPST | ||
Mounting Type PCB Mount | ||
Switching Current 30A | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 277V ac | ||
Maximum Switching Voltage DC 30V dc | ||
Length 50mm | ||
Coil Resistance 300 Ω | ||
Coil Power 1.92W | ||
Isolation Coil To Contact 5kV rms | ||
Contact Material Silver Alloy | ||
Height 35mm | ||
Life 100000 (Electrical) cycles, 10000000 (AC Mechanical) cycles, 20000000 (DC Mechanical) cycles | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +55°C | ||
Depth 33mm | ||
Maximum Switching Power AC 6.925 kVA | ||
Application Power | ||
- COO (Country of Origin):
- JP
HE Series
These PCB mount power relays have a high capacity and long life and offer excellent surge resistance. Typical applications for these PCB power relays include office equipment, industrial equipment and home appliances.
High capacity and long life
Single side stable type
Surge voltage more than 10,000V
Excellent resistance to contact welding due to the pre-tension and kick-off mechanism
Typical applications: Machine tools, Moulding equipment, Air conditioners, Heating equipment
Single side stable type
Surge voltage more than 10,000V
Excellent resistance to contact welding due to the pre-tension and kick-off mechanism
Typical applications: Machine tools, Moulding equipment, Air conditioners, Heating equipment
Approvals
Ul; SCA; VDE; TUV
