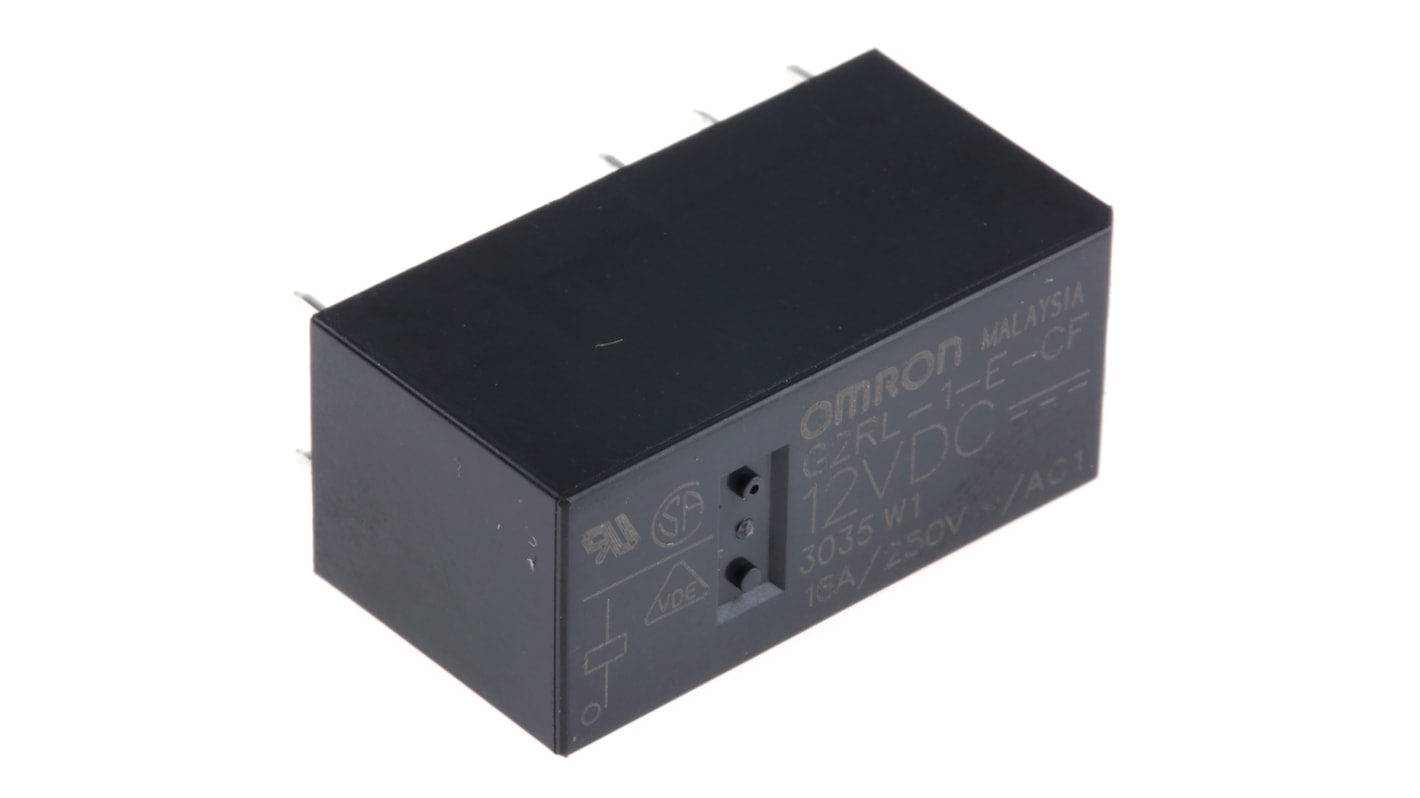

Omron PCB Mount Power Relay, 12V dc Coil, 16A Switching Current, SPDT
- RS Stock No.:
- 683-8876
- Mfr. Part No.:
- G2RL-1-E-CF DC12
- Brand:
- Omron
Available to back order for despatch 05/12/2024
Added
Price Each
£3.23
(exc. VAT)
£3.88
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £3.23 |
| 25 - 49 | £2.71 |
| 50 - 99 | £2.52 |
| 100 - 249 | £2.16 |
| 250 + | £1.82 |
- RS Stock No.:
- 683-8876
- Mfr. Part No.:
- G2RL-1-E-CF DC12
- Brand:
- Omron
Technical Reference
Legislation and Compliance
Product Details
G2RL Series
Low profile 15.7mm height (max.)
10mm creepage/clearance
Meets EN60335-1 requirements
Tracking resistance: CTI>250
H15.7, W12.7, D29mm
10mm creepage/clearance
Meets EN60335-1 requirements
Tracking resistance: CTI>250
H15.7, W12.7, D29mm
Approvals
UL recognised; CSA certified; VDE
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 16A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | Through Hole |
| Length | 29mm |
| Coil Resistance | 360Ω |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver |
| Depth | 12.7mm |
| Minimum Operating Temperature | -40°C |
| Series | G2RL |
| Height | 15.7mm |
| Maximum Switching Power AC | 4 kVA |
| Application | Power |
