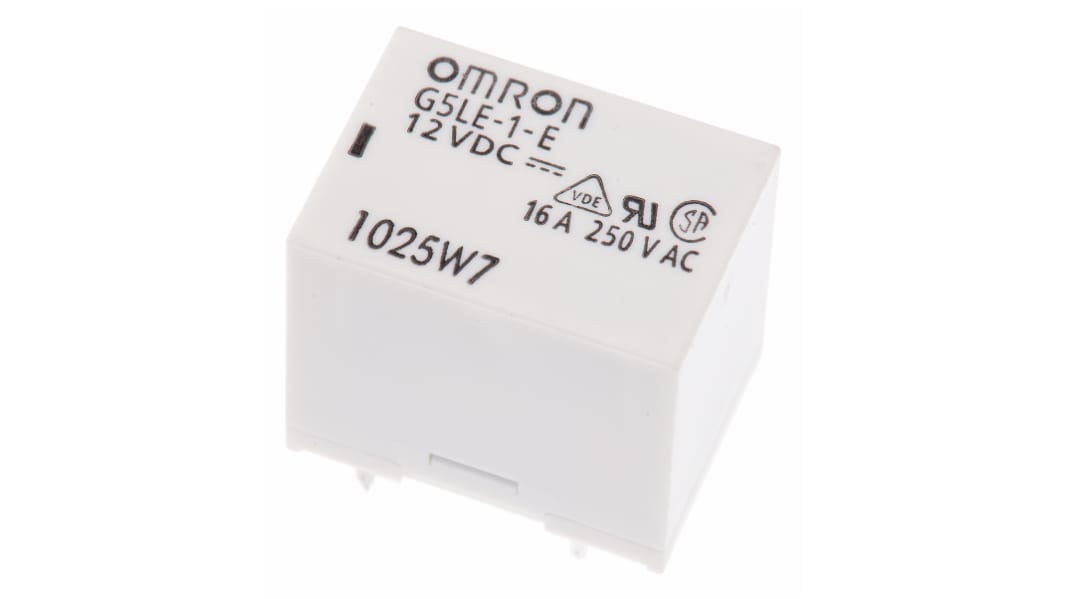

Omron PCB Power Relay, 12V dc Coil, 16A Switching Current, SPDT
- RS Stock No.:
- 492-894
- Distrelec Article No.:
- 110-49-778
- Mfr. Part No.:
- G5LE-1-E DC12
- Brand:
- Omron
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£2.19
(exc. VAT)
£2.63
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 97 unit(s) ready to ship
- Plus 17 unit(s) ready to ship from another location
- Plus 444 unit(s) shipping from 29 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £2.19 |
| 25 - 49 | £1.97 |
| 50 - 99 | £1.70 |
| 100 - 249 | £1.65 |
| 250 + | £1.50 |
*price indicative
- RS Stock No.:
- 492-894
- Distrelec Article No.:
- 110-49-778
- Mfr. Part No.:
- G5LE-1-E DC12
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Power Relay | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Series | G5LE | |
| Terminal Type | Solder | |
| Switching Current | 16A | |
| Switching Power | 4kVA | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 35V dc | |
| Coil Resistance | 360Ω | |
| Maximum Operating Temperature | 85°C | |
| Length | 22.5mm | |
| Coil Power | 400mW | |
| Width | 16.5mm | |
| Height | 19mm | |
| Standards/Approvals | RoHS | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Power Relay | ||
Coil Voltage 12V dc | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Series G5LE | ||
Terminal Type Solder | ||
Switching Current 16A | ||
Switching Power 4kVA | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 35V dc | ||
Coil Resistance 360Ω | ||
Maximum Operating Temperature 85°C | ||
Length 22.5mm | ||
Coil Power 400mW | ||
Width 16.5mm | ||
Height 19mm | ||
Standards/Approvals RoHS | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- MY
G5LE Series
Subminiature 'sugar cube' format
Ideal for control circuit applications
High current switching capacity
Withstands impulse of up to 4500V
Dimensions; L22.5xW16.5xH19 mm
Approvals
UL, CSA, VDE
