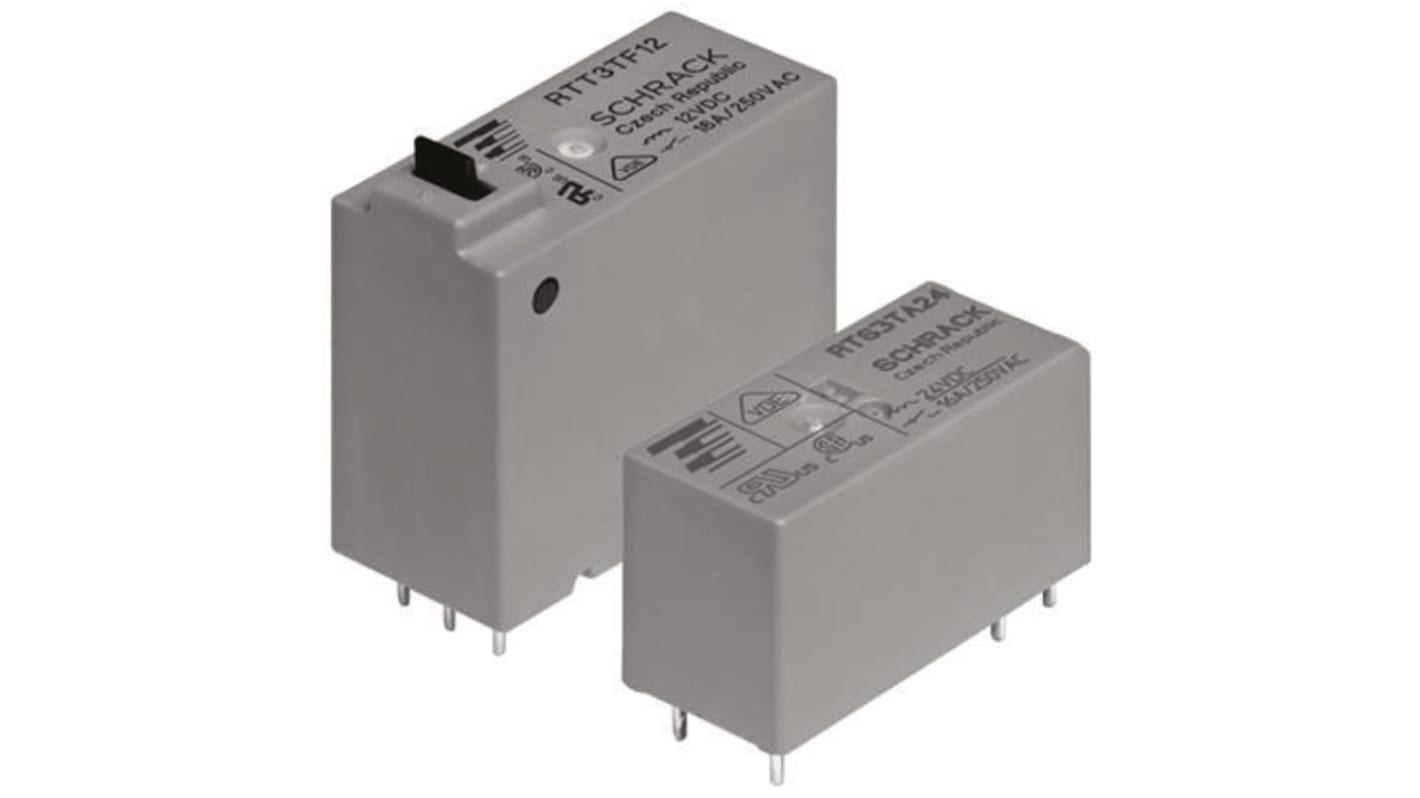

TE Connectivity PCB Power Relay, 12V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 680-3990
- Mfr. Part No.:
- RTS3TF12
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£8.49
(exc. VAT)
£10.19
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 30 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £8.49 |
| 5 - 9 | £6.75 |
| 10 - 14 | £6.42 |
| 15 + | £6.10 |
*price indicative
- RS Stock No.:
- 680-3990
- Mfr. Part No.:
- RTS3TF12
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 12V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | RT | |
| Terminal Type | Solder | |
| Switching Current | 16A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 400V ac | |
| Switching Power | 4kVA | |
| Coil Resistance | 240Ω | |
| Maximum Operating Temperature | 85°C | |
| Width | 12.7mm | |
| Standards/Approvals | RoHS | |
| Length | 29mm | |
| Height | 15.7mm | |
| Coil Power | 600mW | |
| Contact Material | Silver Alloy, Tungsten | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Product Type Power Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series RT | ||
Terminal Type Solder | ||
Switching Current 16A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 400V ac | ||
Switching Power 4kVA | ||
Coil Resistance 240Ω | ||
Maximum Operating Temperature 85°C | ||
Width 12.7mm | ||
Standards/Approvals RoHS | ||
Length 29mm | ||
Height 15.7mm | ||
Coil Power 600mW | ||
Contact Material Silver Alloy, Tungsten | ||
RT1 Series - High Inrush Relays / Bistable
16A @ 250Vac making and breaking capacity acc. to IEC 60669-1
Reinforced insulation
Creepage & clearance 10mm
5mm pinning
Applications include lighting systems, movement sensors, filament and incandescent lamp loads, motors etc
Approvals
UL, CSA, VDE
