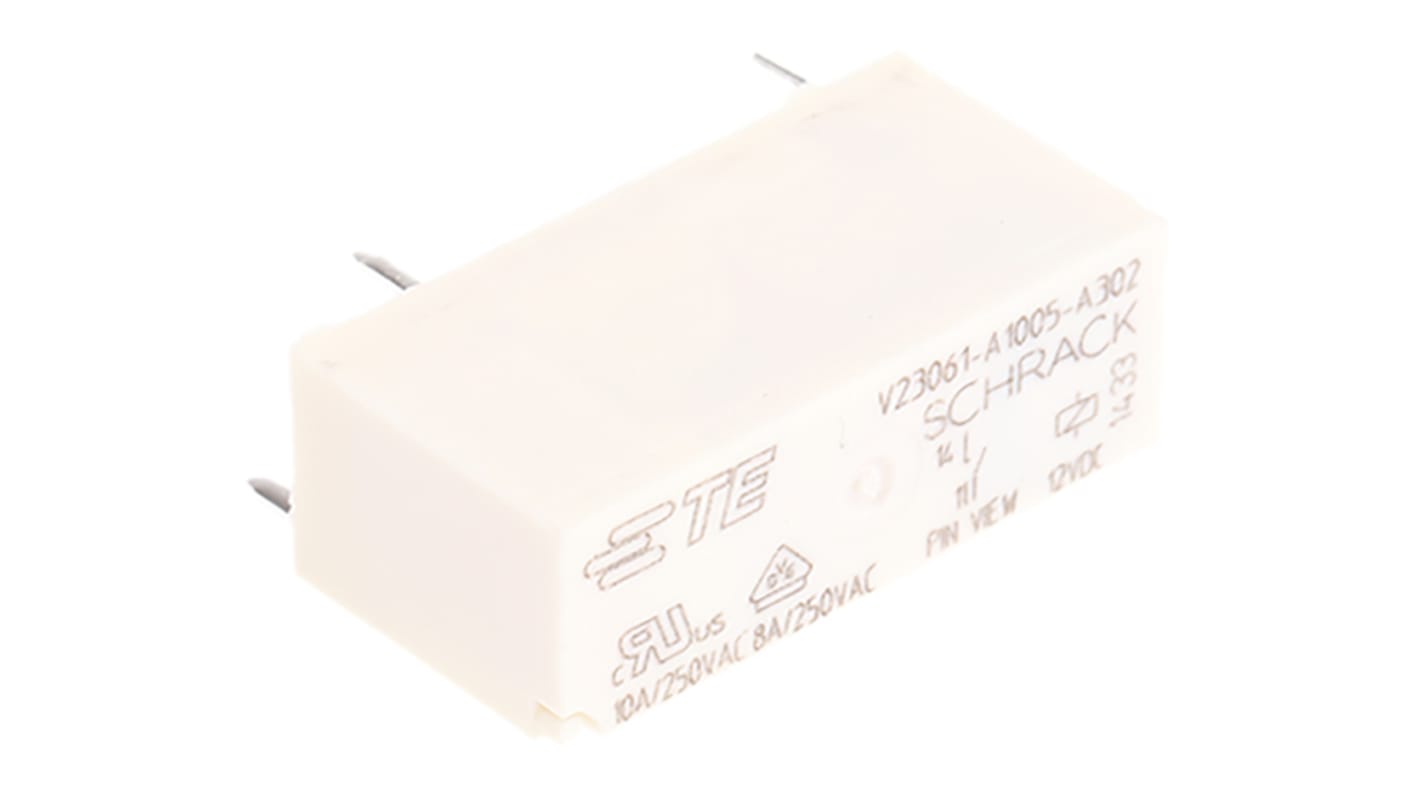

TE Connectivity PCB Mount Power Relay, 12V dc Coil, 8A Switching Current, SPST
- RS Stock No.:
- 135-8499
- Mfr. Part No.:
- V23061A1005A302
- Brand:
- TE Connectivity
Save 34% when you buy 500 units
Subtotal (1 tube of 20 units)*
£54.52
(exc. VAT)
£65.42
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 660 unit(s) ready to ship
- Plus 440 unit(s) shipping from 07 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 20 - 20 | £2.726 | £54.52 |
| 40 - 80 | £2.589 | £51.78 |
| 100 - 180 | £2.317 | £46.34 |
| 200 - 480 | £2.044 | £40.88 |
| 500 + | £1.772 | £35.44 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£3.32
(exc. VAT)
£3.98
(inc. VAT)
- RS Stock No.:
- 135-8499
- Mfr. Part No.:
- V23061A1005A302
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 8A | |
| Number of Poles | 1 | |
| Series | MSR | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 400V ac | |
| Length | 28.6mm | |
| Coil Resistance | 652Ω | |
| Coil Power | 221mW | |
| Contact Material | Silver Alloy | |
| Depth | 10mm | |
| Maximum Operating Temperature | +85°C | |
| Height | 15mm | |
| Isolation Coil To Contact | 4kVrms | |
| Minimum Operating Temperature | -40°C | |
| Maximum Switching Power AC | 2 kVA | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 8A | ||
Number of Poles 1 | ||
Series MSR | ||
Latching No | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 400V ac | ||
Length 28.6mm | ||
Coil Resistance 652Ω | ||
Coil Power 221mW | ||
Contact Material Silver Alloy | ||
Depth 10mm | ||
Maximum Operating Temperature +85°C | ||
Height 15mm | ||
Isolation Coil To Contact 4kVrms | ||
Minimum Operating Temperature -40°C | ||
Maximum Switching Power AC 2 kVA | ||
Application Power | ||
