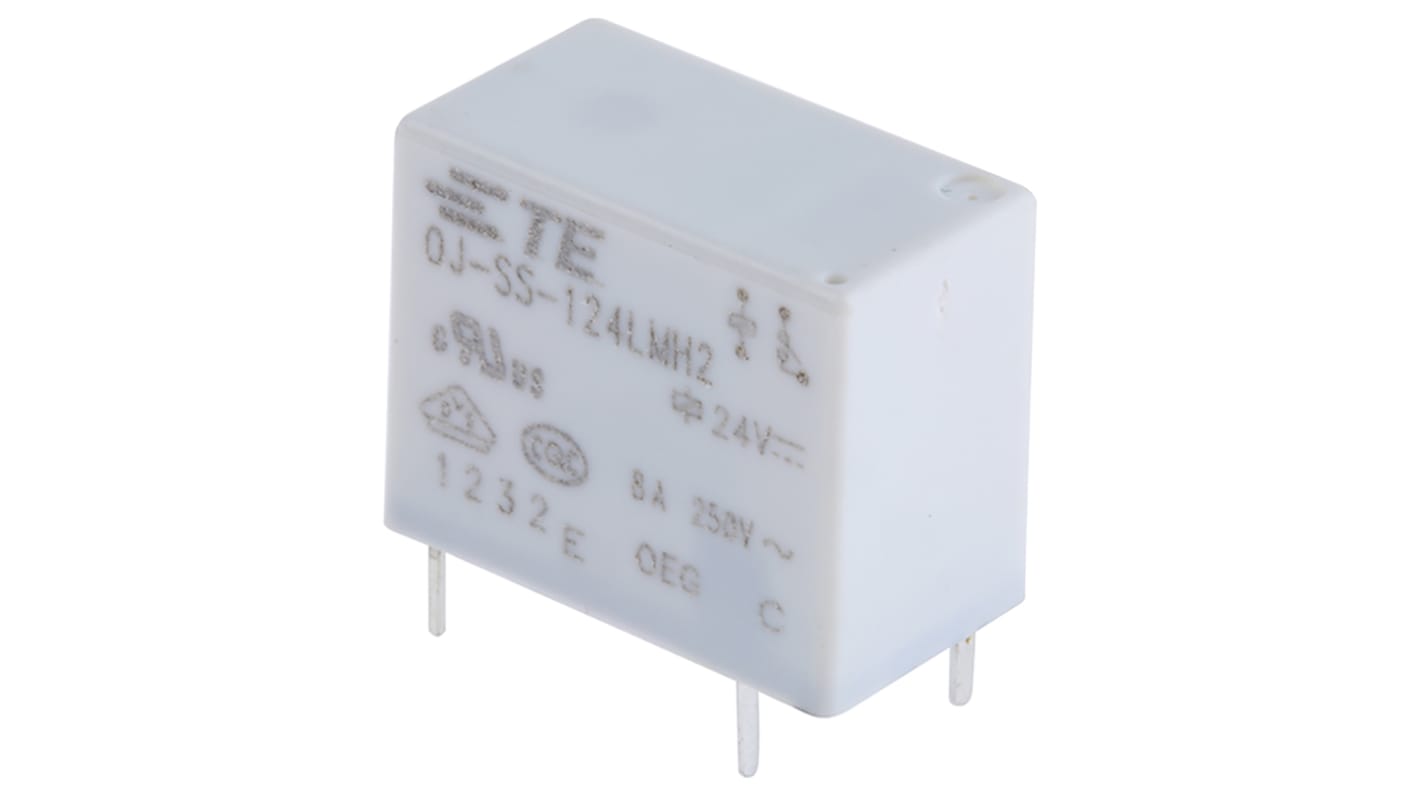

TE Connectivity PCB Power Relay, 24V dc Coil, 8A Switching Current, SPST
- RS Stock No.:
- 680-2603
- Mfr. Part No.:
- OJ-SS-124LMH2,005
- Brand:
- TE Connectivity
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£1.92
(exc. VAT)
£2.30
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 37 unit(s) shipping from 02 November 2026
- Plus 468 unit(s) shipping from 09 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £1.92 |
| 10 - 24 | £1.83 |
| 25 - 99 | £1.73 |
| 100 - 249 | £1.63 |
| 250 + | £1.43 |
*price indicative
- RS Stock No.:
- 680-2603
- Mfr. Part No.:
- OJ-SS-124LMH2,005
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | OJ | |
| Terminal Type | Solder | |
| Switching Current | 8A | |
| Switching AC Voltage | 277V ac | |
| Minimum Operating Temperature | -30°C | |
| Switching DC Voltage | 30V dc | |
| Coil Resistance | 2.9kΩ | |
| Maximum Operating Temperature | 85°C | |
| Width | 10.2mm | |
| Length | 18.2mm | |
| Height | 14.7mm | |
| Coil Power | 200mW | |
| Standards/Approvals | RoHS | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Product Type Power Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series OJ | ||
Terminal Type Solder | ||
Switching Current 8A | ||
Switching AC Voltage 277V ac | ||
Minimum Operating Temperature -30°C | ||
Switching DC Voltage 30V dc | ||
Coil Resistance 2.9kΩ | ||
Maximum Operating Temperature 85°C | ||
Width 10.2mm | ||
Length 18.2mm | ||
Height 14.7mm | ||
Coil Power 200mW | ||
Standards/Approvals RoHS | ||
Contact Material Silver Alloy | ||
- COO (Country of Origin):
- CN
OJ / OJE Series
Isolation Coil to contact; 4000Vac
Switching Voltage; 250Vac
Contact Material; Ag Alloy
Dimensions; 14.6x18.2x10.2 mm
