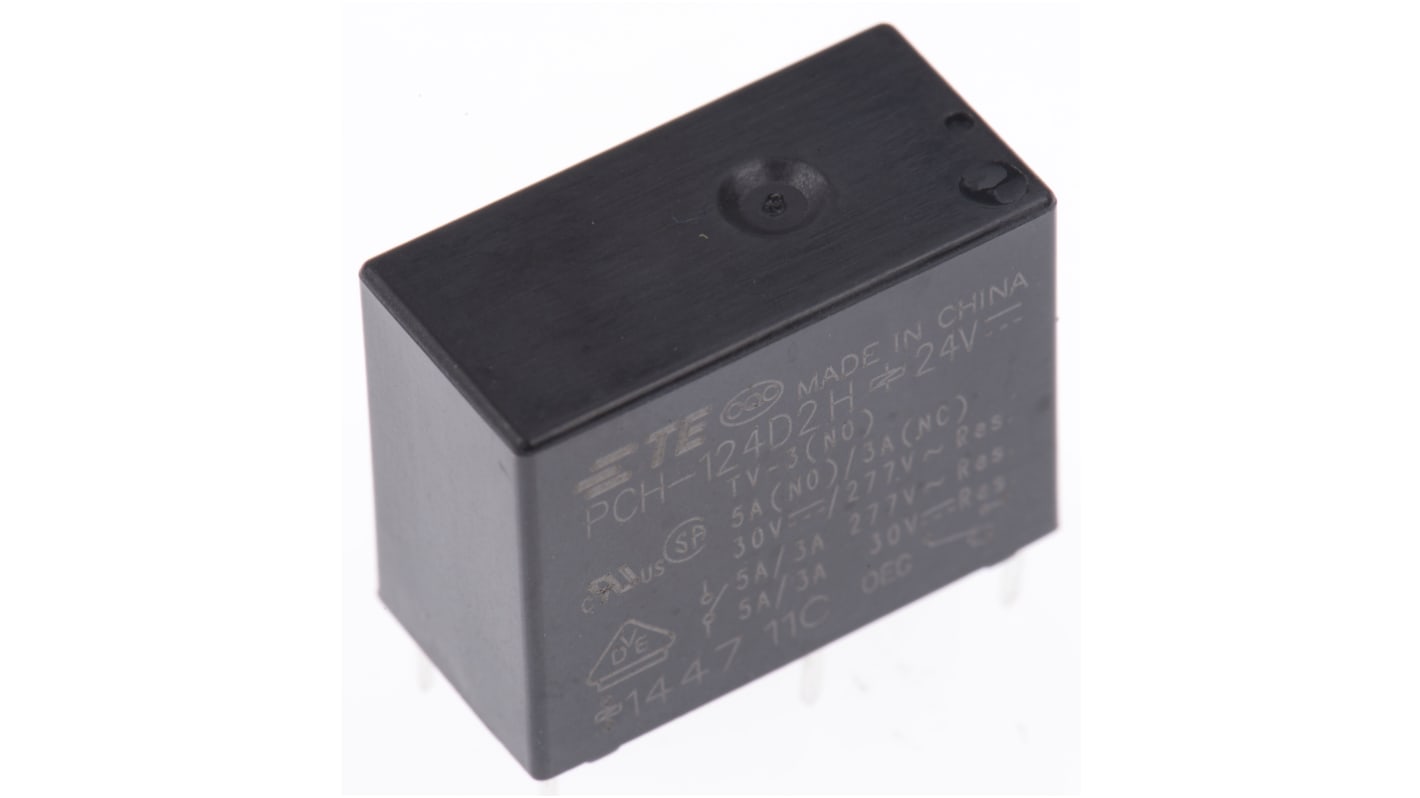

PCH SeriesRelay,1CO,10A 120ac,24dc 400mW
- RS Stock No.:
- 533-0845
- Mfr. Part No.:
- PCH-124D2H
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£2.98
(exc. VAT)
£3.58
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- 9 left, ready to ship from another location
- Final 1 unit(s) shipping from 30 October 2025
Units | Per unit |
---|---|
1 - 9 | £2.98 |
10 - 24 | £2.66 |
25 - 49 | £2.41 |
50 - 99 | £2.14 |
100 + | £1.92 |
*price indicative
- RS Stock No.:
- 533-0845
- Mfr. Part No.:
- PCH-124D2H
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Coil Voltage | 24V dc | |
Contact Configuration | SPDT | |
Mounting Type | PCB Mount | |
Switching Current | 10 A | |
Terminal Type | Through Hole | |
Coil Resistance | 1.44 kΩ | |
Application | PCB | |
Length | 20mm | |
Depth | 10mm | |
Height | 15.2mm | |
Dimensions | 20 x 10 x 15.2mm | |
Contact Material | Silver Alloy | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Operating Temperature Range | -40 → +85°C | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 10 A | ||
Terminal Type Through Hole | ||
Coil Resistance 1.44 kΩ | ||
Application PCB | ||
Length 20mm | ||
Depth 10mm | ||
Height 15.2mm | ||
Dimensions 20 x 10 x 15.2mm | ||
Contact Material Silver Alloy | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Operating Temperature Range -40 → +85°C | ||
- COO (Country of Origin):
- CN
TE Connectivity Miniature PCB Relay - PCH Series
PCH series miniature PCB through hole mount relays with SPST and SPDT AgSnO2 contacts. These miniature PCB through hole mount relays have washtight, sealed plastic covers apart from stock numbers 533-0867, 533-0867 and 533-0873 which have flux proof vented covers. PCB relays with SPST contacts have a senstive 200mW coil. Typical applications for these PCH series PCB relays include HVAC, refrigerators and microwave ovens.
High surge voltage capacity; 8000V (1.2/50μs)
Ambient temperature; -30 to +85°C
Contact rating: 5A @ 250Vac (IEC 61810), 10 A @ 125 Vac (UL 508)
Contact material; AgSnO
Dimensions (mm); H 15.2, W 9.9, D19.8
Ambient temperature; -30 to +85°C
Contact rating: 5A @ 250Vac (IEC 61810), 10 A @ 125 Vac (UL 508)
Contact material; AgSnO
Dimensions (mm); H 15.2, W 9.9, D19.8
Approvals
UL; CSA; VDE
