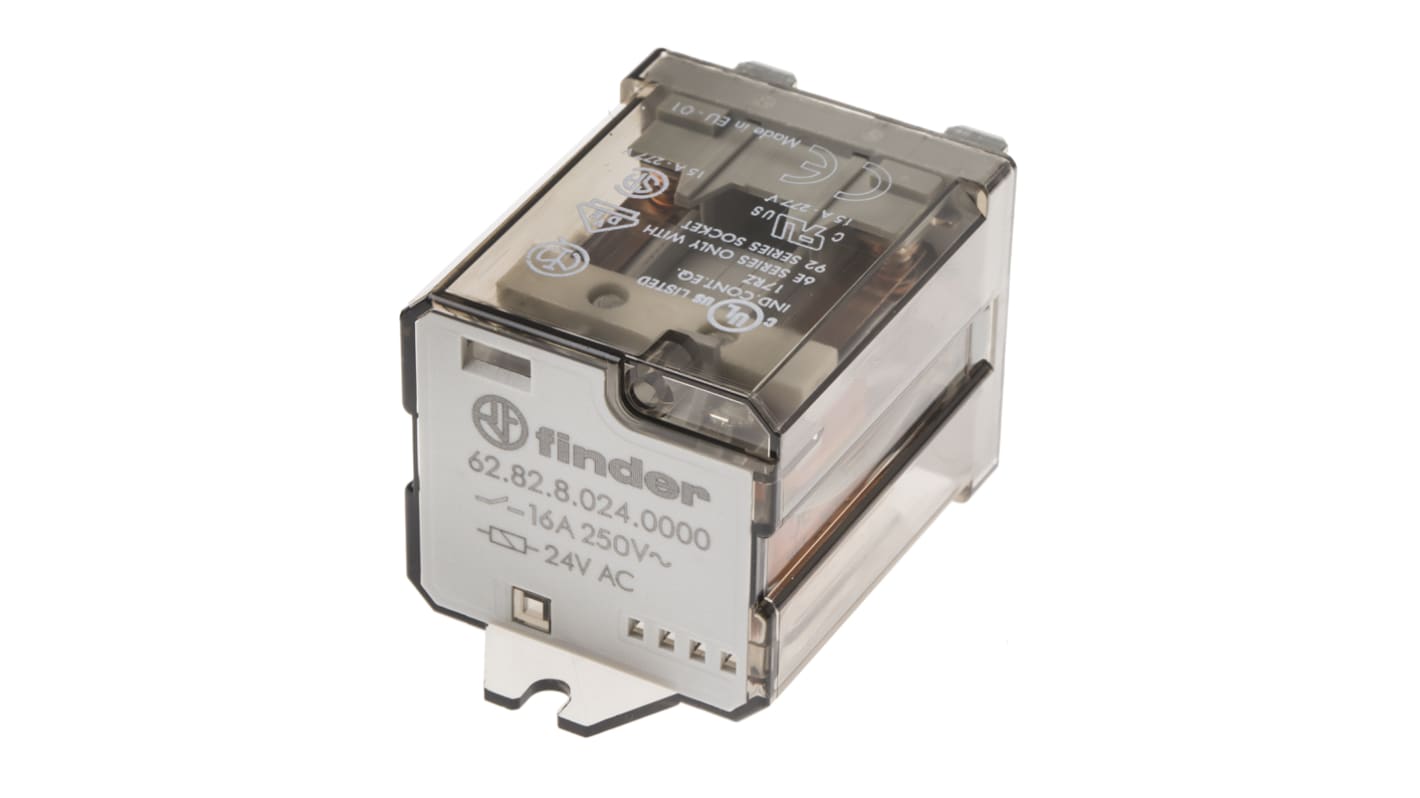

Finder Flange Mount Power Relay, 24V ac Coil, 16A Switching Current, DPDT
- RS Stock No.:
- 511-1212
- Mfr. Part No.:
- 62.82.8.024.0000
- Brand:
- Finder
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£17.00
(exc. VAT)
£20.40
(inc. VAT)
- RS Stock No.:
- 511-1212
- Mfr. Part No.:
- 62.82.8.024.0000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 24V ac | |
Contact Configuration | DPDT | |
Mounting Type | Flange Mount | |
Switching Current | 16A | |
Number of Poles | 2 | |
Latching | No | |
Terminal Type | Quick Connect | |
Maximum Switching Voltage AC | 250V ac | |
Length | 68mm | |
Coil Resistance | 74Ω | |
Coil Power | 2.2W | |
Isolation Coil To Contact | 6kV | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -40°C | |
Series | 62 Series | |
Height | 35.8mm | |
Depth | 38.2mm | |
Contact Material | Silver Alloy | |
Maximum Switching Power AC | 4 kVA | |
Application | Power | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 24V ac | ||
Contact Configuration DPDT | ||
Mounting Type Flange Mount | ||
Switching Current 16A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type Quick Connect | ||
Maximum Switching Voltage AC 250V ac | ||
Length 68mm | ||
Coil Resistance 74Ω | ||
Coil Power 2.2W | ||
Isolation Coil To Contact 6kV | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
Series 62 Series | ||
Height 35.8mm | ||
Depth 38.2mm | ||
Contact Material Silver Alloy | ||
Maximum Switching Power AC 4 kVA | ||
Application Power | ||
- COO (Country of Origin):
- IT
62 Series Industrial Power Relays
The 62 series of power relays from Finder. With various mounting types available, which include PCB, plug in and flange, you are sure to find a suitable version. A Reinforced insulation between coil and Contacts according to EN 60335-1, with 6 mm clearance & 8 mm creepage distance makes them perfect for your application.
DPNO and 3PNO have a 3 mm contact gap
Contact Material: AgCdO
Isolation Coil To Contact 6 kV (1.2/50 μs)
Contact Material: AgCdO
Isolation Coil To Contact 6 kV (1.2/50 μs)
Note
Approvals
UL, VDE
