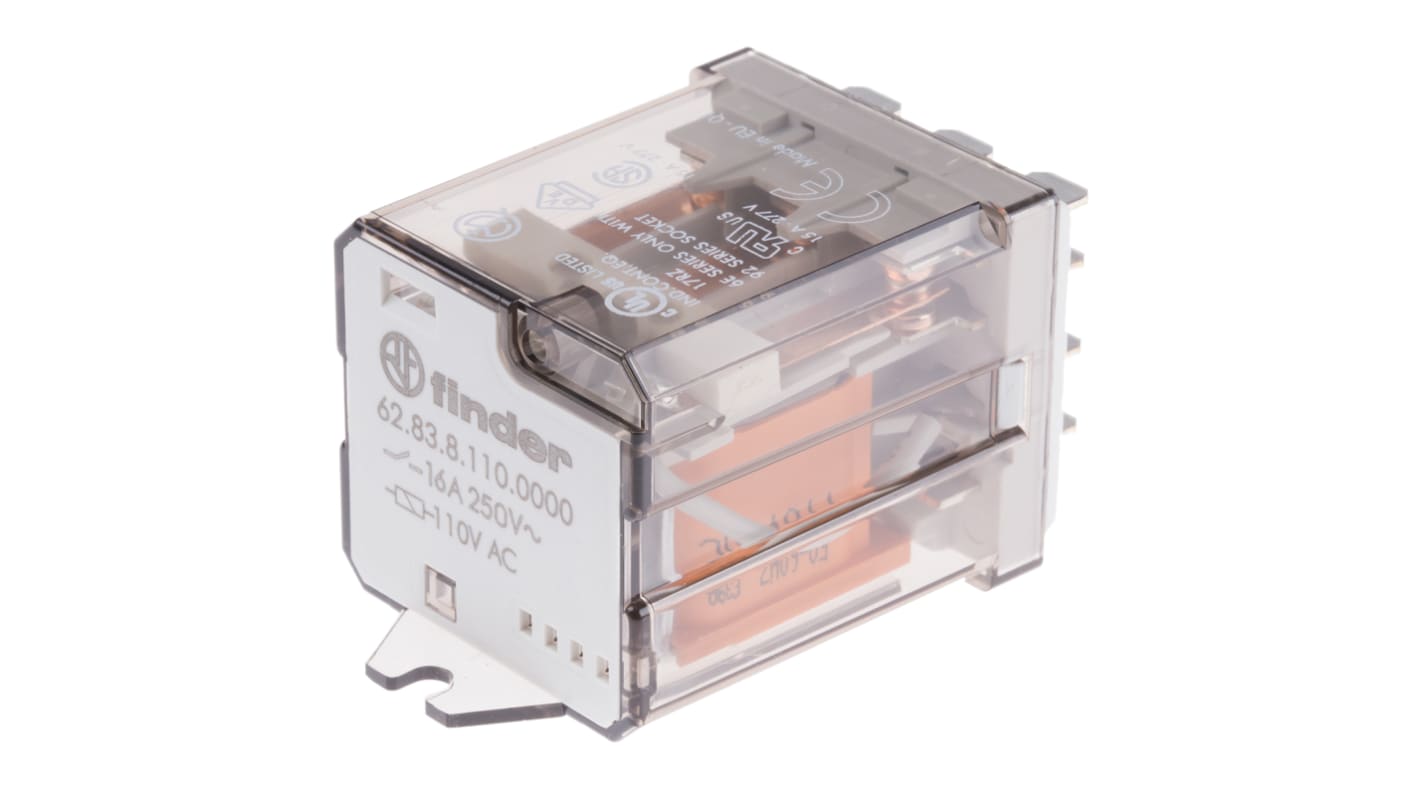

Finder Flange Mount Power Relay, 110V ac Coil, 16A Switching Current, 3PDT
- RS Stock No.:
- 245-2469
- Mfr. Part No.:
- 62.83.8.110.0000
- Brand:
- Finder
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£17.22
(exc. VAT)
£20.66
(inc. VAT)
- RS Stock No.:
- 245-2469
- Mfr. Part No.:
- 62.83.8.110.0000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 110V ac | |
Contact Configuration | 3PDT | |
Mounting Type | Flange Mount | |
Switching Current | 16A | |
Number of Poles | 3 | |
Latching | No | |
Terminal Type | Quick Connect | |
Maximum Switching Voltage AC | 250V ac | |
Length | 68mm | |
Coil Resistance | 1600Ω | |
Coil Power | 2.2W | |
Contact Material | Silver Alloy | |
Maximum Operating Temperature | +70°C | |
Depth | 38.2mm | |
Series | 62 Series | |
Height | 35.8mm | |
Minimum Operating Temperature | -40°C | |
Isolation Coil To Contact | 6kV | |
Maximum Switching Power AC | 4 kVA | |
Application | Power | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 110V ac | ||
Contact Configuration 3PDT | ||
Mounting Type Flange Mount | ||
Switching Current 16A | ||
Number of Poles 3 | ||
Latching No | ||
Terminal Type Quick Connect | ||
Maximum Switching Voltage AC 250V ac | ||
Length 68mm | ||
Coil Resistance 1600Ω | ||
Coil Power 2.2W | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature +70°C | ||
Depth 38.2mm | ||
Series 62 Series | ||
Height 35.8mm | ||
Minimum Operating Temperature -40°C | ||
Isolation Coil To Contact 6kV | ||
Maximum Switching Power AC 4 kVA | ||
Application Power | ||
- COO (Country of Origin):
- IT
62 Series Industrial Power Relays
The 62 series of power relays from Finder. With various mounting types available, which include PCB, plug in and flange, you are sure to find a suitable version. A Reinforced insulation between coil and Contacts according to EN 60335-1, with 6 mm clearance & 8 mm creepage distance makes them perfect for your application.
DPNO and 3PNO have a 3 mm contact gap
Contact Material: AgCdO
Isolation Coil To Contact 6 kV (1.2/50 μs)
Contact Material: AgCdO
Isolation Coil To Contact 6 kV (1.2/50 μs)
Note
Approvals
UL, VDE

Approvals
UL; CSA; VDE
