TE Connectivity DIN Rail Power Relay, 24V dc Coil, 6A Switching Current, 4PDT
- RS Stock No.:
- 494-0435
- Mfr. Part No.:
- PT5S7LC4 1415076-1
- Brand:
- TE Connectivity
110 In stock - FREE next working day delivery available
18 available from Europe for delivery within 1 working day(s).
Price Each
£27.49
(exc. VAT)
£32.99
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £27.49 |
5 - 9 | £26.64 |
10 + | £25.51 |
- RS Stock No.:
- 494-0435
- Mfr. Part No.:
- PT5S7LC4 1415076-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- AT
Product Details

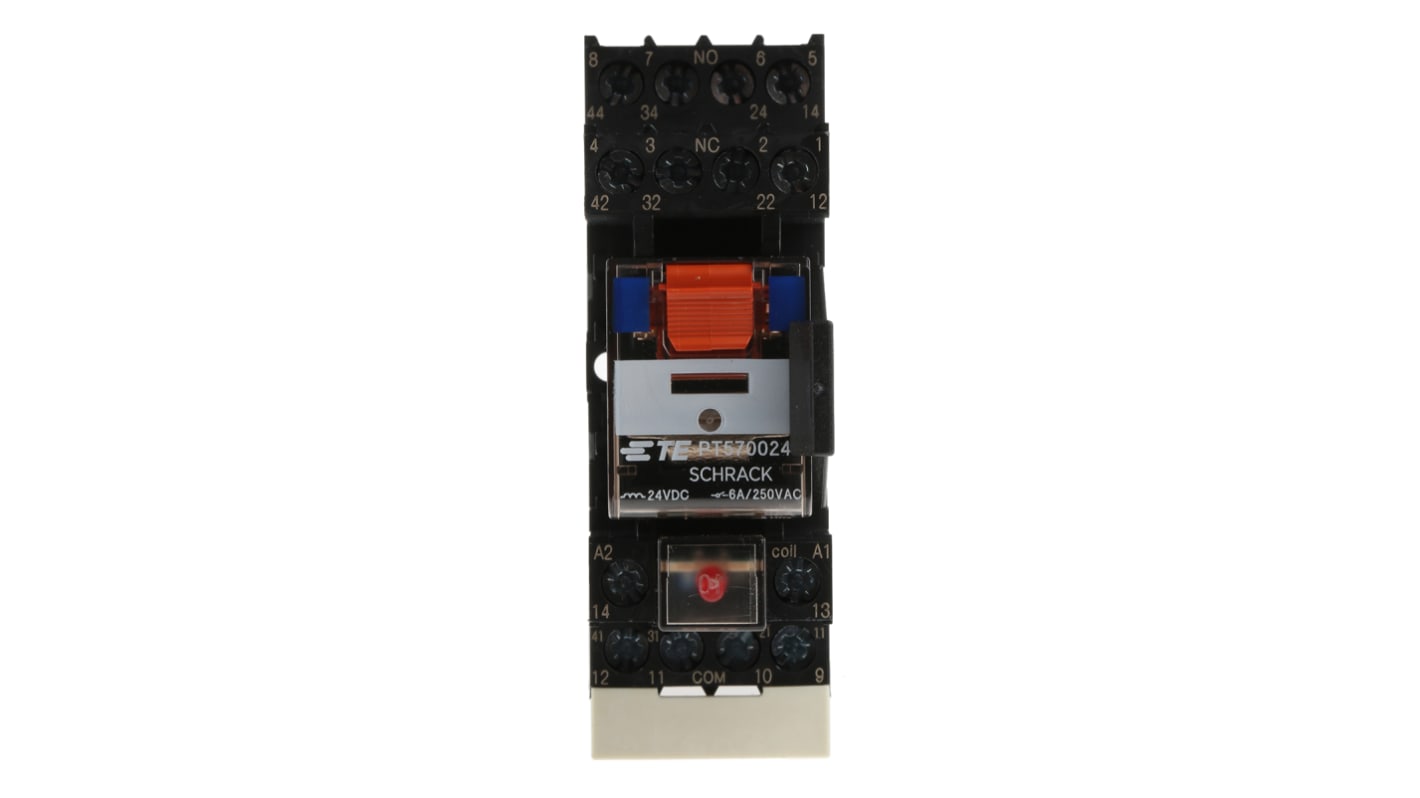

TE Connectivity Non-latching Relay
The TE Connectivity PT series DIN rail mount non-latching relay has contact configuration of 4PDT. It is actuated with 24VDC coil voltage and 6A switching current. This relay has a mechanical and electrical indicator and manual test tab. This package consists of the relay, DIN rail socket, module, retainer and marking tab.
Features and Benefits
Coil resistance is 777ohm
Coil power is 750mW
Screw terminal type
LED and protection diode module
DIN socket has a logical arrangement of control/load terminals, with a second A2 terminal for easier looping
Coil power is 750mW
Screw terminal type
LED and protection diode module
DIN socket has a logical arrangement of control/load terminals, with a second A2 terminal for easier looping
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IEC 61810-1
VDE approved
BS EN 61340-5-1:2007
IEC 61810-1
VDE approved
Specifications
Attribute | Value |
---|---|
Coil Voltage | 24V dc |
Contact Configuration | 4PDT |
Mounting Type | DIN Rail |
Switching Current | 6A |
Number of Poles | 4 |
Latching | No |
Terminal Type | Screw |
Length | 73.5mm |
Coil Resistance | 777Ω |
Coil Power | 750mW |
Contact Material | Silver Nickel Alloy |
Depth | 27mm |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +70°C |
Series | PT |
Height | 58mm |
Maximum Switching Power AC | 1.5 kVA |
Application | Interface |
