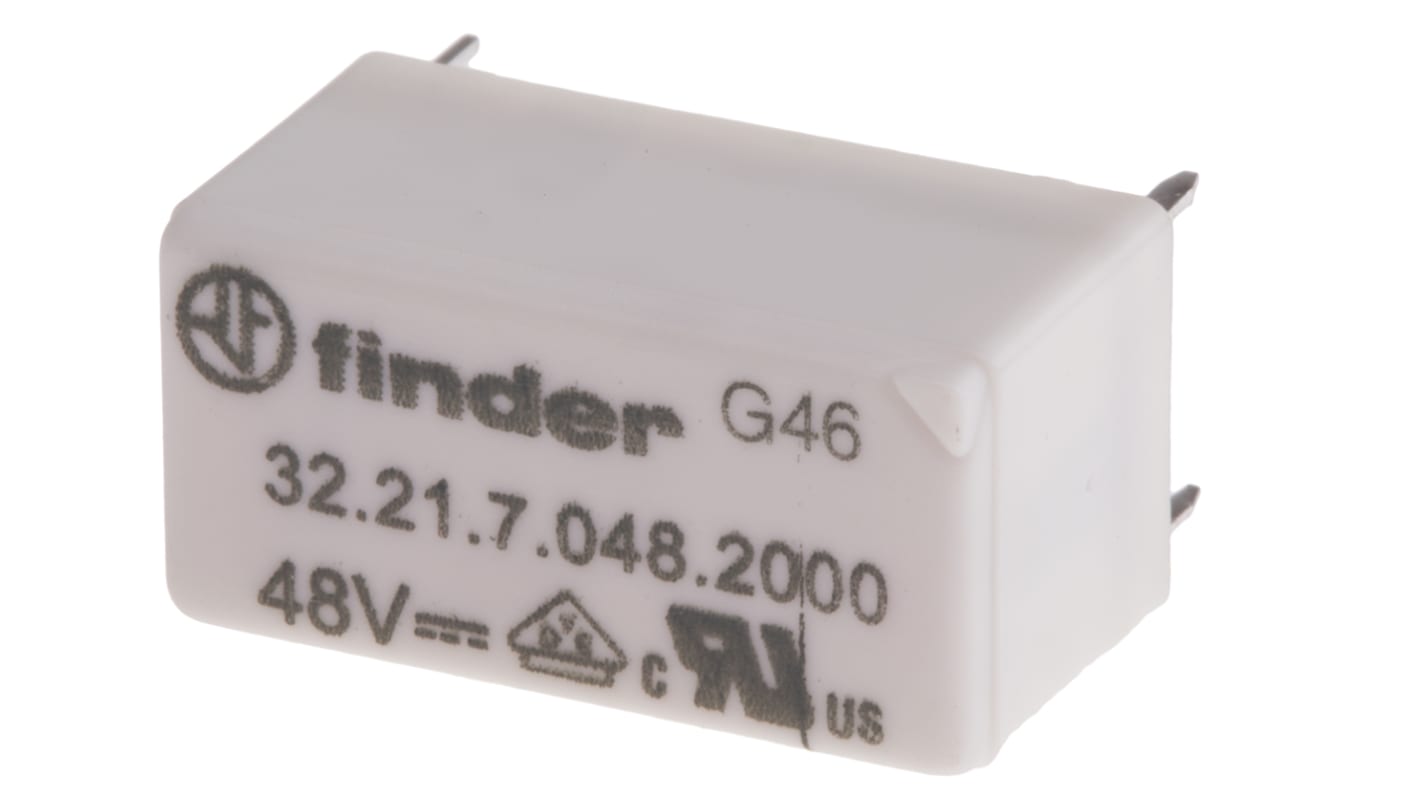

Finder PCB Mount Power Relay, 48V dc Coil, 6A Switching Current, SPDT

RS Stock No.:: 492-6653
Mfr. Part No.:: 32.21.7.048.2000
Brand:: Finder

Finder PCB Mount Power Relay, 48V dc Coil, 6A Switching Current, SPDT

Sorry, we couldn't check our stock levels right now. Please try refreshing the page.

Not available for guaranteed pre 9am/10am delivery

Added

Price Each

£4.20

(exc. VAT)

£5.04

(inc. VAT)

Units	Per unit
1 - 9	£4.20
10 - 24	£3.87
25 - 49	£3.69
50 - 99	£3.57
100 +	£3.39

RS Stock No.:: 492-6653
Mfr. Part No.:: 32.21.7.048.2000
Brand:: Finder

Technical Reference

Legislation and Compliance

COO (Country of Origin):: SI

Product Details

32 Series - 32.21

CO and NO versions
Wash tight
Isolation coil to contact: 5000Vac
Rated voltage: 250Vac
Contact material: AgCdo
Operating temperature range: -40 to +85°C
Dimensions: 10.7x10.2x20.3mm

Approvals

UL recognised component for Canada and US, VDE

Specifications

Attribute	Value
Coil Voltage	48V dc
Contact Configuration	SPDT
Mounting Type	PCB Mount
Switching Current	6A
Number of Poles	1
Latching	No
Terminal Type	Through Hole
Maximum Switching Voltage AC	250V ac
Length	20mm
Coil Resistance	11520Ω
Coil Power	200mW
Contact Material	Silver Alloy
Height	10.7mm
Depth	10mm
Maximum Operating Temperature	+85°C
Series	32 Series
Minimum Operating Temperature	-40°C
Life	20000000 (Electrical) cycles, 20000000 (Mechanical) cycles
Maximum Switching Power AC	1.5 kVA
Application	Compact
