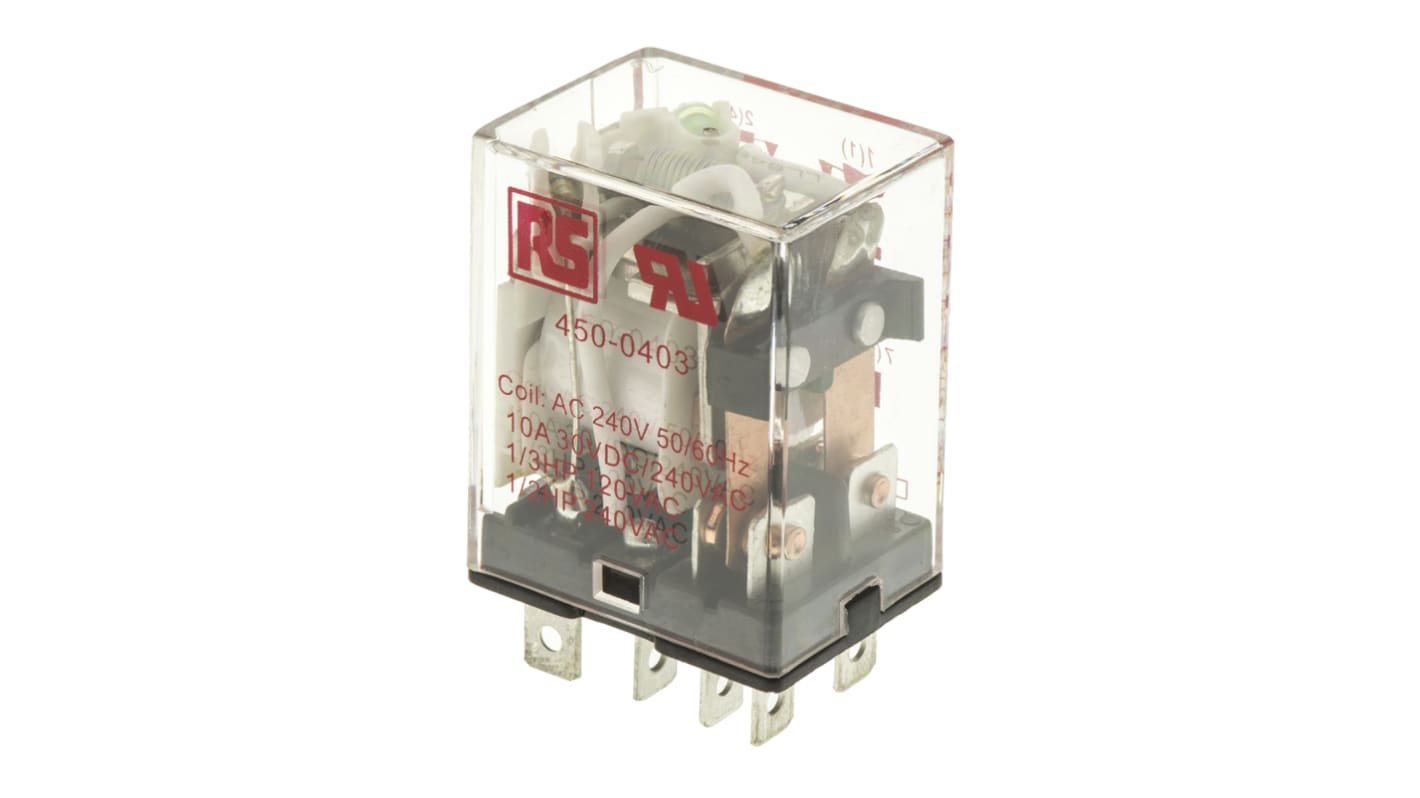

RS PRO Plug In Power Relay, 240V ac Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 450-0403
- Brand:
- RS PRO
Subtotal (1 unit)*
£8.19
(exc. VAT)
£9.83
(inc. VAT)
FREE delivery for orders over £50.00
- 137 unit(s) ready to ship
- Plus 41 unit(s) ready to ship from another location
- Plus 270 unit(s) shipping from 12 February 2026
Units | Per unit |
|---|---|
| 1 - 4 | £8.19 |
| 5 - 9 | £7.91 |
| 10 + | £7.57 |
*price indicative
- RS Stock No.:
- 450-0403
- Brand:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 240V ac | |
| Contact Configuration | DPDT | |
| Mounting Type | Plug In | |
| Switching Current | 10A | |
| Number of Poles | 2 | |
| Latching | No | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 240V ac | |
| Maximum Switching Voltage DC | 30V dc | |
| Maximum Switching Current DC | 10 A | |
| Maximum Switching Current AC | 10 A | |
| Length | 28mm | |
| Coil Resistance | 15700Ω | |
| Coil Power | 1.2W | |
| Contact Material | Silver Alloy | |
| Isolation Coil To Contact | 1.5kV ac | |
| Maximum Operating Temperature | +55°C | |
| Minimum Operating Temperature | -45°C | |
| Standards Met | CUR E125370, UL E125370 | |
| Height | 36mm | |
| Depth | 21.5mm | |
| Life | 1000000 (Electrical) cycles, 10000000 (Mechanical) cycles | |
| Maximum Switching Power DC | 300 W | |
| Maximum Switching Power AC | 2.4 kVA | |
| Application | General Purpose | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 240V ac | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 10A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 240V ac | ||
Maximum Switching Voltage DC 30V dc | ||
Maximum Switching Current DC 10 A | ||
Maximum Switching Current AC 10 A | ||
Length 28mm | ||
Coil Resistance 15700Ω | ||
Coil Power 1.2W | ||
Contact Material Silver Alloy | ||
Isolation Coil To Contact 1.5kV ac | ||
Maximum Operating Temperature +55°C | ||
Minimum Operating Temperature -45°C | ||
Standards Met CUR E125370, UL E125370 | ||
Height 36mm | ||
Depth 21.5mm | ||
Life 1000000 (Electrical) cycles, 10000000 (Mechanical) cycles | ||
Maximum Switching Power DC 300 W | ||
Maximum Switching Power AC 2.4 kVA | ||
Application General Purpose | ||
RoHS Status: Exempt


RS PRO Push Button General Purpose Relay (10A)
Features and Benefits
- General purpose relay
- DPDT configuration
- LED power indicator
- Socket mount
- Coil voltage of 240 V ac
- Coil resistance of 15700 Ω
- Coil power of 1.2 VA
- Maximum switching current 10 A
- Maximum switching power 2400 VA/ 300W
- Maximum switching voltage 250 V ac/ 125 V dc
- Silver contacts
- Electrical life 100000 cycles
